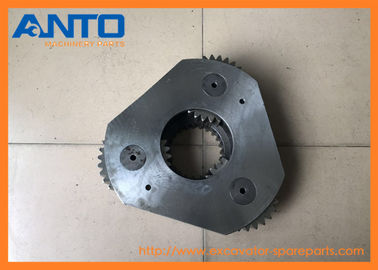

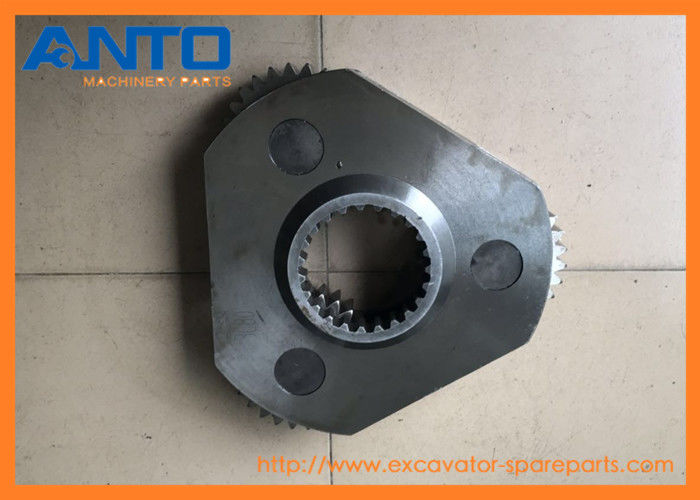

Planet Carrier Assembly Vo-lvo Excavator Swing Gearbox VOE14622902 14622902 EC380D

Large Image : Planet Carrier Assembly Vo-lvo Excavator Swing Gearbox VOE14622902 14622902 EC380D

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	EC380D

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability:	568 PCS per week

Contact Now

Detailed Product Description

Category:	Excavator Swing Gearbox Parts	Machine Model:	EC380D EC380E EC350E
Parts No.:	VOE14622902 14622902	Parts Name:	Planet Carrier Assy No.1
Warranty:	3/6 Months	Package:	Standard Export Carton
Highlight:	14622902 Planet Carrier Assembly , EC380D Planet Carrier Assembly

VOE14622902 14622902 EC380D Planet Carrier Assembly Applied To Vo-lvo Excavator Swing Gearbox

Spec Sheet

spare parts name	planet carrier assy no.1
Equipment Model	Vo-lvo EC380E EC380D EC350E
Parts Category	Excavator swing reducer
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

Vo-lvo EC380E EC380D EC350E

Parts Diagram

Planet Carrier Assembly Vo-lvo Excavator Swing Gearbox VOE14622902 14622902 EC380D 0

Number 7 on drawing

Pos.	Part No	Qty	Parts name	Comments
	VOE14622901	[1]	Swing gearbox
	VOE14680015		Swing gearbox
1	VOE14622865	[1]	Shaft
2	VOE14622869	[1]	Collar
3	VOE14622894	[1]	Roller bearing
4	VOE14622895	[1]	Plate
5	VOE14622896	[1]	Collar
6	VOE14622897	[1]
7	VOE14622898	[1]	Retaining ring
8	VOE14622899	[1]	Retaining ring
9	VOE14596611	[1]	Seal
10	VOE14640028	[1]	Bearing
11	SA9324-21317	[4]	Pin
12	VOE14622914	[1]	Gear
13	VOE14622908	[1]	Planet carrier
13A.	VOE14622910	[4]	Gear
13B.	VOE14622911	[4]	Bushing
13C.	VOE14622912	[4]	Pin
14	VOE14596618	[4]	Washer
15	VOE952004	[4]	Spring pin
16	VOE14622913	[1]	Gear
17	VOE14596621	[1]	Thrust washer
18	VOE14622902	[1]	Planet carrier
18A.	VOE14622904	[0003]	Gear
18B.	VOE14622905	[3]	Bushing
18C.	VOE14622906	[3]	Pin
18D.	VOE14596625	[0006]	Washer
19	VOE14622907	[1]	Gear
	VOE14680062		Gear
20	VOE14596630	[1]	Cover
	VOE14633289		Cover
21	VOE995261	[16]	Hex. socket screw
22	SA9415-43052	[2]	Plug
23	SA9415-43012	[1]	Plug
24	VOE914167	[1]	Lubriing nipple
25	SA9411-92830	[2]	Elbow nipple
26	VOE14529015	[1]	Valve
27	VOE914472		Snap ring
28	VOE984138	[4]	Hex. socket screw
	VOE984139		Hex. socket screw

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
