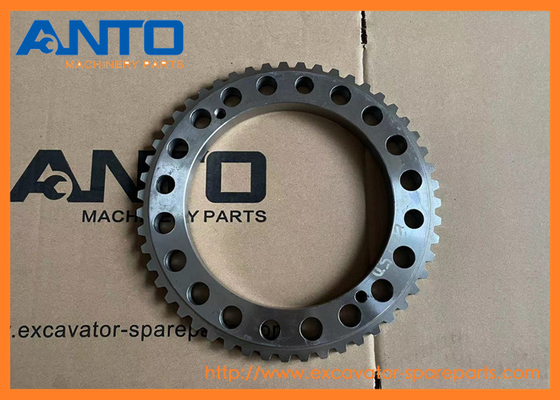

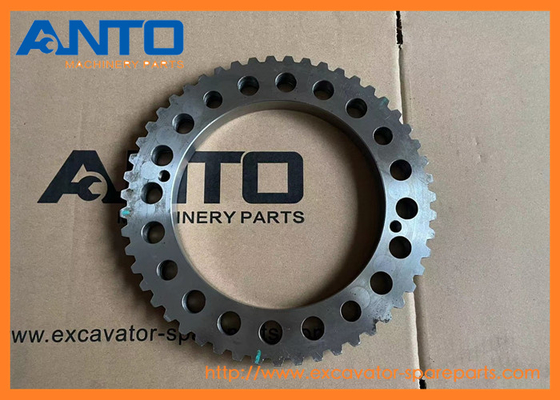

1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L

Large Image : 1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	1655797 165-5797

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD 53/PCS
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Model Number:	311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L	Product Name:	Gear
Part Number:	1655797 165-5797	Transportation:	By Sea/air By Express
Packing:	Standard Export Carton	Warranty:	6/12 Months
Highlight:	Excavator Swing Gear for 311C , Swing Gear for 313D2 LGP , 315D L excavator swing gear

1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L

Specification

Application	Excavator swing gear
Name	Gear
Parts No	1655797 165-5797
Model	311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

Function

1.Changing speed and torque: Gears can change the speed and torque of the power transmission. By meshing with different - sized gears, the 165 - 5797 gear can increase or decrease the rotational speed while adjusting the torque output to meet the specific requirements of different working conditions. For example, in some heavy - duty machinery, it may be used to reduce the speed and increase the torque to provide sufficient power for tasks such as lifting and pushing.

2.Changing the direction of rotation: In some cases, the 165 - 5797 gear may be used to change the direction of rotation of the power transmission. This is useful when the layout of the equipment's components requires the power to be transmitted in a specific direction, or when it is necessary to drive components that require reverse rotation.

Applicable models

EXCAVATOR 311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L

More gear parts supplied to C A T machine

1484715 GEAR-COUPLING

315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN,...

7Y1431 GEAR-PLANETARY

315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3...

7Y1430 GEAR-SUN

5I7674 GEAR

311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320 L, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321B, 321C, 323D L, 323D LN

2056788 GEAR

311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN...

1252951 GEAR

311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN

5I7686 GEAR AS

311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN

5I7558 GEAR AS

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320...

1252950 GEAR AS

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 3...

Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	165-5785	[1]	SPACER (40X60.9X1-MM THK)
2	096-1773 B	[1]	SHIM (0.15-MM THK)
	096-1774 B	[1]	SHIM (0.3-MM THK)
	096-1775 B	[1]	SHIM (0.4-MM THK)
	096-1776 B	[1]	SHIM (0.5-MM THK)
	096-1777 B	[1]	SHIM (0.6-MM THK)
	096-1778 B	[1]	SHIM (0.7-MM THK)
	096-1779 B	[1]	SHIM (0.8-MM THK)
	096-1780 B	[1]	SHIM (1-MM THK)
	096-1781 B	[1]	SHIM (1.6-MM THK)
11	227-6034 M	[16]	BOLT-FLANGE HEAD (M16X2X60-MM)
12	165-5786	[3]	SHAFT
13	296-6269	[6]	BEARING-ROLLER
14	165-5787	[3]	GEAR-PLANETARY (26-TEETH)
15	094-1528	[6]	WASHER (53X84X1-MM THK)
16	095-0891	[6]	PIN-SPRING
17	165-5788	[3]	GEAR-PLANETARY (29-TEETH)
18	296-6268	[3]	BEARING AS-ROLLER
19	3E-2338	[2]	PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
20	7M-8485	[2]	SEAL-O-RING
21	165-5790	[1]	COVER
22	7Y-0225	[3]	SHAFT-PLANETARY
23	094-0611	[6]	WASHER (47.3X76X1-MM THK)
24	094-0580	[1]	PLATE (10-MM THK)
25	165-5792	[1]	GEAR-SUN (14-TEETH)
26	165-5793	[1]	GEAR-SUN (17-TEETH)
27	165-5794	[1]	SPACER (72X101X7-MM THK)
28	165-5795	[1]	CARRIER
29	8T-7929 M	[16]	BOLT (M12X1.75X180-MM)
30	8T-4223	[16]	WASHER-HARD (13.5X25.5X3-MM THK)
31	095-1299	[3]	DOWEL
32	165-3892	[1]	GEAR-RING (73-TEETH)
33	165-5796	[1]	CARRIER
34	165-5797	[1]	GEAR (51-TEETH)
35	165-5800	[1]	WASHER (241X282X3-MM THK)
36	210-3530	[1]	HOUSING
37	114-1539	[4]	PIN-DOWEL
38	296-6220	[2]	BALL BEARING
39	210-3531	[1]	HOUSING-MOTOR
40	174-4874	[1]	SEAL GP-DUO-CONE

	1U-8846 BF		SEALANT-GASKET
	B		USE AS REQUIRED
	F		NOT SHOWN
	M		METRIC PART

1655797 165-5797 Gear Excavator Swing Gear For 311C 313D2 LGP 315C 315D L 316E L 0

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
