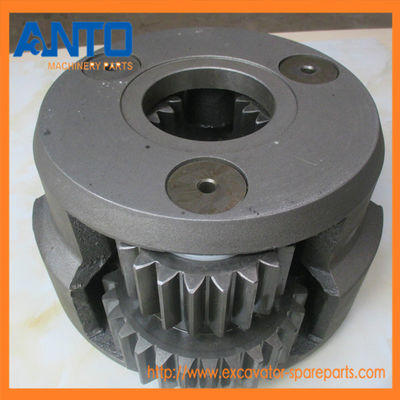

1.156-00001 1.404-00007 Planetary Carrier Assembly For Doosan Daewoo DH220-5 Solar 225-V 220-V



• Application



Doosan Daewoo





• Parts Diagram



-.401-00454[1]-
TRAVEL DEVICE 401-00454A .
-.401-00454A[1]-
TRAVEL DEVICE 401-00454B .
-.401-00454B[1]-
TRAVEL DEVICE 401-00454C .
-.401-00454C[1]-
TRAVEL DEVICE
1.1.156-00002[1]-
HUB
12.1.540-00004[1]-
PIECE;DISTANCE
13.1.430-00030[1]-
COVER
14.1.114-00541[6]-
COLLAR;THRUST
15.1.115-00138[1]-
RING
17.1.123-00034[10]-
PIN
19.1.414-00009[1]-
COUPLING
2.1.220-00002[1]-
SPINDLE
20.1.412-00164[2]-
PLATE;THRUST
23.1.180-00355[1]-
RING;SEAL
24.1.109-00146[2]-
BEARING;ANGULAR BALL
25.1.109-00145[6]-
BEARING;NEEDLE
26.1.180-00512[1]-
SEAL;FLOATING
27.1.123-00107[10]-
PIN;PARALLEL D12X63
29.S8012300[1]-
JOINT TORIQUE .
3.1.230-00054[1]-
CARRIER
30.2181-1116D4[3]-
PLUG .
32.S0561471[20]-
BOLT;HEX M12X1.75X85 .
33.S5110701[20]-
WASHER;SPRING M12 .
34.1.123-00026[3]-
PIN;PARALLEL
35.S2224471[10]-
..BOLT;SOCKET M8X2.5X40 .
36.S6250200[1]-
BALL;STELL .
39.S8000081[2]-
O-RING .
4.1.104-00001[1]-
GEAR;RING A
40.S8003401[1]-
JOINT TORIQUE .
5.2713-1059[1]-
CUTTER;SIDE(R) .
5.1.104-00003[1]-
GAER;RING B
6.1.404-00007[3]-
GEAR;CLUSTER
7.1.403-00111[1]-
GEAR;SUN
8.1.404-00002[1]-
GEAR;COUPLING
9.1.405-00121[3]-
SHAFT;CLUSTER
RG.1.404-00001[1]-
REDUCTION GEAR ASS'Y
RG1.1.156-00001[1]-
HUB ASS'Y
RG2.1.220-00001[1]-
SPINDLE ASS'Y
RG3.1.230-00053[1]-
CARRIER ASS'Y

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
