| Application |

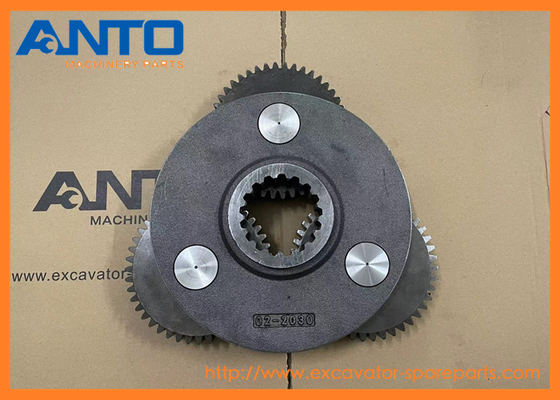

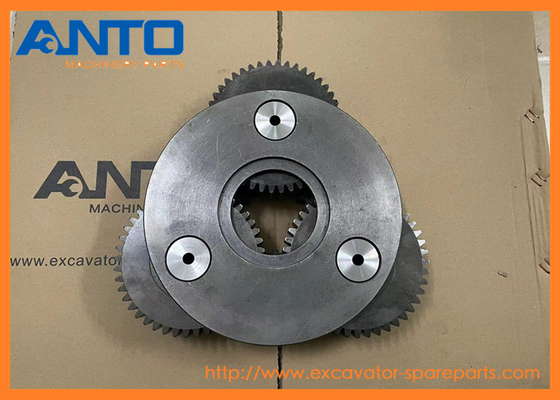

C A T excavator final drive |
| Name |
Carrier |
| Parts No |
7Y1432 7Y-1432 |
| Model |
315C 315D L 318B 318C 318E L 319C 319D 319D L 319D LN 320 L 320B 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 320N 321B 321C 321D LCR 322 322 FM L 322 LN 322B 322B L 322B LN 323D L 323D LN 323D2 L 323E L
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
EXCAVATOR 315C 315D L 318B 318C 318E L 319C 319D 319D L 319D LN 320 L 320B 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 320N 321B 321C 321D LCR 322 322 FM L 322 LN 322B 322B L 322B LN 323D L 323D LN 323D2 L 323E L
- More carrier parts supplied to C A T machine
| 1107059 CARRIER-PLANETARY |
| 320B, 322B L, 325 L, 325B, 325B L, OEMS |
| |
| 1107058 CARRIER-PLANETARY |
| 320B, 322B L, 325 L, 325B, 325B L, OEMS |
| |
| 1107209 CARRIER AS |
| 320B, 322B L, 325 L, 325B, 325B L, OEMS |
| |
| 7Y0242 CARRIER |
| 325, 325 LN, OEMS |
| |
| 7Y0241 CARRIER |
| 325, 325 LN, OEMS |
| |
| 7Y0228 CARRIER AS, |
| 325, 325 LN, OEMS |
| |
| 7Y1771 CARRIER |
| 320 L, 345B, 345B L, OEMS |
| |
| 7Y1774 CARRIER |
| 320 L, 345B, 345B L, OEMS |
| |
| 7Y0731 CARRIER AS |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0645 CARRIER |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
7Y-1434 |
[1] |
SPACER (40X69.5X6-MM THK) |
|
| 2 |
096-1773 B |
[1] |
SHIM (0.15-MM THK) |
|
| |
096-1774 B |
[1] |
SHIM (0.3-MM THK) |
|
| |
096-1775 B |
[1] |
SHIM (0.4-MM THK) |
|
| |
096-1776 B |
[1] |
SHIM (0.5-MM THK) |
|
| |
096-1777 B |
[1] |
SHIM (0.60-MM THK) |
|
| |
096-1778 B |
[1] |
SHIM (0.70-MM THK) |
|
| |
096-1779 B |
[1] |
SHIM (0.80-MM THK) |
|
| |
096-1780 B |
[1] |
SHIM (1-MM THK) |
|
| |
096-1781 B |
[1] |
SHIM (1.60-MM THK) |
|
| 3 |
6V-5686 M |
[16] |
BOLT (M16X2X50-MM) |
|
| 4 |
102-6456 |
[1] |
GEAR-RING (79-TEETH) |
|
| 5 |
095-1270 M |
[2] |
SETSCREW-SOCKET |
|
| 6 |
7Y-1438 |
[1] |
HOUSING-MOTOR |
|
| 7 |
093-1425 |
[1] |
SEAL GP-DUO-CONE |
|
| 8 |
096-6412 |
[2] |
BALL BEARING |
|
| 9 |
7Y-1437 |
[1] |
HOUSING |
|
| 10 |
093-7828 |
[4] |
DOWEL |
|
| 11 |
7Y-1436 |
[1] |
GEAR-COUPLING |
|
| 12 |
7Y-0223 |
[3] |
SHAFT-PLANETARY |
|
| 13 |
094-1542 |
[6] |
BEARING-ROLLER |
|
| 14 |
7Y-1431 |
[3] |
GEAR-PLANETARY (44-TEETH) |
|
| 15 |
094-1528 |
[6] |
WASHER (53X84X1-MM THK) |
|
| 16 |
095-0891 |
[6] |
PIN-SPRING |
|
| 17 |
6I-6585 |
[3] |
GEAR-PLANETARY (44-TEETH) |
|
| 18 |
094-0616 |
[3] |
BEARING AS-ROLLER |
|
| 19 |
3E-2338 |
[2] |
PLUG-PIPE |
|
| 20 |
7M-8485 |
[2] |
SEAL-O-RING |
|
| 21 |
7Y-1426 |
[1] |
COVER |
|
| 22 |
7Y-0225 |
[3] |
SHAFT-PLANETARY |
|
| 23 |
094-0611 |
[6] |
WASHER (47.3X76X1-MM THK) |
|
| 24 |
094-0580 |
[1] |
PLATE (10-MM THK) |
|
| 25 |
6I-6583 |
[1] |
GEAR-SUN (13-TEETH) |
|
| 26 |
7Y-1430 |
[1] |
GEAR-SUN (17-TEETH) |
|
| 27 |
7Y-1558 |
[1] |
SPACER (90X119.6X7.5-MM THK) |
|
| 28 |
7Y-1432 |
[1] |
CARRIER |
|
| 29 |
7X-2568 M |
[16] |
BOLT (M20X2.5X180-MM) |
|
| |
8T-4123 M |
[16] |
WASHER-PLATED (22X35X3.5-MM THK) |
|
| 30 |
1U-8846 B |
|
SEALANT-GASKET |
|
| 31 |
102-6454 |
[1] |
GEAR-RING (104-TEETH) |
|
| 32 |
7Y-1433 |
[1] |
CARRIER |
|
| 33 |
6D-0692 |
[1] |
SEAL-O-RING |
|
| |
B |
|
USE AS REQUIRED |
| |
M |
|
METRIC PART |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
