1027152 1027158 1031123 ZX200 Hitachi Excavator Final Drive Travel Device Hub Housing

• ZX200 Hitachi Excavator Travel Device Hub Housing 1027152 1027158 1031123

• Spec Sheet

• Application

ZX200 . ZX225US . ZX225US-E . ZX225US-HCME . ZX225USR . ZX225USR-E . ZX225USRK . ZX230 . ZX230-HHE . ZX240H . ZX240K . ZX240LC-HHE . ZX250-HCME . ZX450 . Hitachi

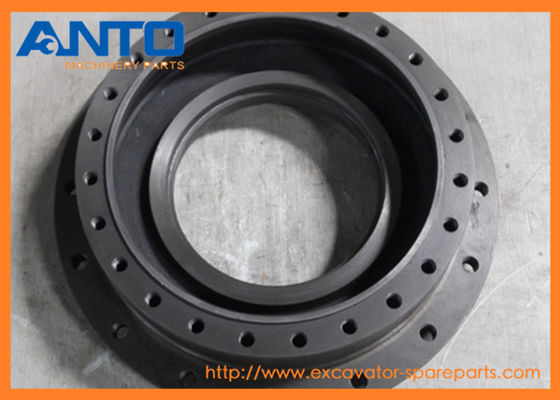

• Product photos

• Parts Diagram:

ENTIRE GROUP TRAVEL DEVICE:

9181678 I[2] -
TRAVEL DEVICE 9195245 ( for assembly of machine ) .
9195245[2] -
TRAVEL DEVICE ( for transportation ) .
00.9190294 I[1] -
MOTOR;OIL 9196318 ( for assembly of machine )
00.9196318[1] -
MOTOR;OIL ( for transportation )
02.4114753[1] -
SEAL;GROUP
03.4246793[2] -
BRG.;ROL.
04.1027152[1] -
DRUM
05.1010203[1] -
SPROCKET
06.J932055[16] -
BOLT
07.A590920[16] -
WASHER;SPRING
08.3086531[1] -
NUT
11.4436242[1] -
PIN;KNOCK
12.1026779[1] -
CARRIER (3)
13.3085966[3] -
GEAR;PLANETARY (3)
14.4445531[6] -
BRG.;NEEDLE
15.4284521[6] -
PLATE;THRUST
16.4139975[3] -
PIN
17.4116309[3] -
PIN;SPRING
18.3085927[1] -
GEAR;SUN (3)
20.1027158[1] -
GEAR;RING
21.J931640[28] -
BOLT
23.1027161[1] -
CARRIER (2)
24.4401293[2] -
SPACER
25.3085985[3] -
GEAR;PLANETARY (2)
26.4445529[3] -
BRG.;NEEDLE
27.4210851[6] -
PLATE;THRUST
28.4309995[3] -
PIN
29.4246358[3] -
PIN;SPRING
30.3085941[1] -
GEAR;SUN
32.1027160[1] -
CARRIER
33.3086006[3] -
GEAR;PLANETARY
34.4406589[3] -
BRG.;NEEDLE
35.4192910[6] -
PLATE;THRUST
36.4210853[3] -
PIN
37.4173093[3] -
PIN;SPRING
38.2042351[1] -
SHAFT;PROP.
40.2043868[1] -
COVER
41.4285323[1] -
PIN;STOPPER
42.J011230[12] -
BOLT;SEMS
43.4245797[3] -
PLUG
46.3053559[1] -
NAME-PLATE
47.M492564[2] -
SCREW;DRIVE

• Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

• Advantage

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
