Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Final Drive Parts | Excavator Model: | 320C 320D |
|---|---|---|---|
| Parts No.: | 169-5586 169-5585 191-3236 191-3235 | Material: | Forged Iron, Steel |
| Warranty: | 6 Months | Package: | Standard Export Carton |
| Highlight: | final drive parts,final drive |
||

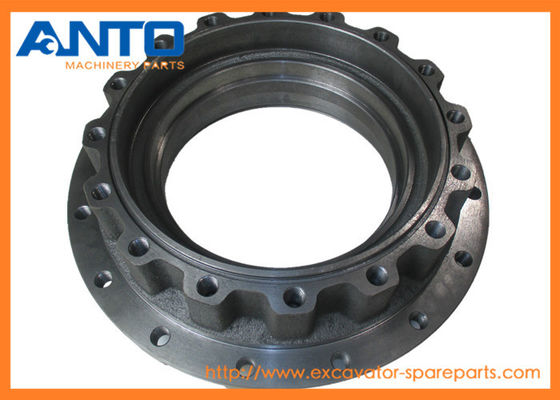

| PARTS NAME | E320C E320D Final drive hub |
| EQUIPMENT | E320C D Excavator |
| Category | Excavator Final Drive |
| ITEM CONDITION | New |
| Application | Replacement |
| MATERIAL | Steel |
| PROCESSING | Casting |
| MOQ | 1 pcs |
INDIVIDUAL PARTS:
1.7Y-1434[1] -
SPACER (40X69.5X6-MM THK)
2.096-1773 B[1] -
SHIM (0.15-MM THK)
096-1774 B[1] -
SHIM (0.3-MM THK)
096-1775 B[1] -
SHIM (0.4-MM THK)
096-1776 B[1] -
SHIM (0.5-MM THK)
096-1777 B[1] -
SHIM (0.6-MM THK)
096-1778 B[1] -
SHIM (0.7-MM THK)
096-1779 B[1] -
SHIM (0.8-MM THK)
096-1780 B[1] -
SHIM (1-MM THK)
096-1781 B[1] -
SHIM (1.6-MM THK)
11.6V-3303 M[14] -
BOLT (M16X2X60-MM)
12.7Y-0223[3] -
SHAFT-PLANETARY
13.094-1542[6] -
BEARING-ROLLER
14.7Y-1431[3] -
GEAR-PLANETARY (30-TEETH)
15.094-1528 M[6] -
WASHER (53X84X1-MM THK)
16.095-0891[6] -
PIN-SPRING
17.6I-6585[3] -
GEAR-PLANETARY (44-TEETH)
18.094-0616[3] -
BEARING AS-ROLLER
19.3E-2338[2] -
PLUG-PIPE
20.7M-8485[2] -
SEAL-O-RING
21.7Y-1426[1] -
COVER
22.7Y-0225[3] -
SHAFT-PLANETARY
23.094-0611[6] -
WASHER (47.3X76X1-MM THK)
24.094-0580[1] -
PLATE (10-MM THK)
25.6I-6583[1] -
GEAR-SUN (13-TEETH)
26.7Y-1430[1] -
GEAR-SUN (17-TEETH)
27.7Y-1558[1] -
SPACER (90X119.6X7.5-MM THK)
28.7Y-1432[1] -
CARRIER
29.7X-2568 M[16] -
BOLT (M20X2.5X180-MM)
30.8T-4123[16] -
WASHER (3.62X5.75X0.375-MM THK)
31.1U-8846 B-
SEALANT-GASKET
33.148-4705[1] -
GEAR-RING (104-TEETH)
34.7Y-1433[1] -
CARRIER
35.6D-0692[1] -
SEAL-O-RING
36.148-4715[1] -
GEAR-COUPLING (55-TEETH)
37.114-1539[6] -
PIN-DOWEL
38.191-3235[1] -
HOUSING
39.168-8451[2] -
BALL BEARING
40.114-1497[1] -
SEAL GP-DUO-CONE
41.191-3236[1] -
HOUSING
42.095-1270 M[2] -
SETSCREW-SOCKET (M12X1.75X30-MM)
43.148-4708[1] -
GEAR-RING (79-TEETH)
USE AS REQUIRED
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
