Product Details:
Payment & Shipping Terms:
|
| Parts No.: | 9065935 9080069 9096482 | Excavator Model: | EX120 |
|---|---|---|---|
| Excavator Brand: | Hitachi | Packing: | Wood Box |
| Warranty: | 3/6 Months | Weight: | 150 KG |
| Highlight: | final drive parts,excavator gearbox |
||
| Excavator spare parts name | Travel reduction gear |
| Equipment Model | EX120 |
| Parts Category | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
ENTIRE GROUP TRAVEL DEVICE:
00.9065907[1] -
MOTOR;OIL
00.9080113[1] -
MOTOR;OIL
00-44.9065935[2] -
TRAVEL DEVICE ASS'Y
00-44.9080069 Y[2] -
TRAVEL DEVICE ASS'Y 9096482 .
00-49.9096482[2] -
TRAVEL DEVICE ASS'Y
00A.9065906[1] -
VALVE;BRAKE
00A.9080511[1] -
VALVE;BRAKE
01.1009905[1] -
HOUSING
02.4179741[1] -
SEAL;GROUP .
03.1009401[1] -
FLANGE
04.4178201 Y[2] -
BRG.;ROL. 4240716 .
04.4240716[2] -
BRG.;ROL. .
05.1010325[1] -
SPROCKET
06.A590916[34] -
WASHER;SPRING .
07.J931640[32] -
BOLT .
08.3033234[1] -
NUT .
09.4178862[1] -
PLATE;LOCK .
11.J901020[2] -
BOLT
12.1009808[1] -
CARRIER .
13.3034195[3] -
GEAR;PLANETARY .
14.4183108[6] -
BRG.;NEEDLE .
15.4196487[6] -
PLATE;THRUST .
16.4183107[3] -
PIN .
17.4144020[3] -
PIN;SPRING
18.1010014[1] -
GEAR;RING
19.3033236[1] -
GEAR;SUN .
21.2021634[1] -
CARRIER .
22.4187683[1] -
SPACER .
23.3033238[3] -
GEAR;PLANETARY .
24.4113606[3] -
BRG.;NEEDLE .
25.4196489[6] -
PLATE;THRUST .
26.4178203[3] -
PIN .
27.4173093[3] -
PIN;SPRING
28.3033235[1] -
GEAR;SUN .
29.2021633[1] -
CARRIER .
29.2022129[1] -
CARRIER .
31.4178208[1] -
SPACER .
32.3033237[3] -
GEAR;PLANETARY .
32.3034194[3] -
GEAR;PLANETARY .
33.4177007[3] -
BRG.;NEEDLE .
34.4192910[6] -
PLATE;THRUST .
35.4178202[3] -
PIN .
36.4169566[3] -
PIN;SPRING .
37.2022128[1] -
SHAFT;PROP. .
37.2022131[1] -
SHAFT;PROP. .
38.2022682[1] -
COVER
38.2025960[1] -
COVER .
39.A590912[8] -
WASHER;SPRING .
41.M221228[8] -
BOLT .
42.4245797[3] -
PLUG .
42.94-2013[2] -
PLUG
42.94-2013 Y[3] -
PLUG 4245797
43.4092970[1] -
O-RING .
44.J931670[2] -
BOLT .
48.M492564[2] -
SCREW;DRIVE .
49.3053559[1] -
NAME-PLATE
60.J931670[28] -
BOLT .
61.A590916[28] -
WASHER;SPRING

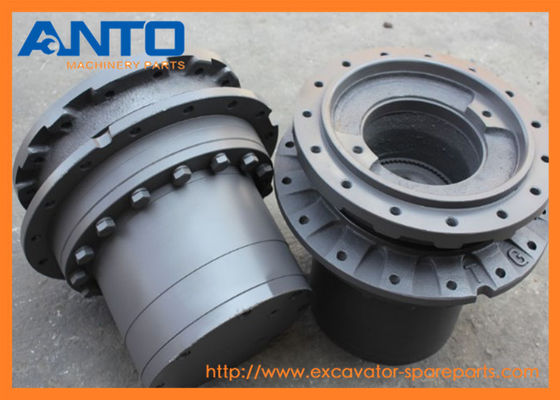

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
