Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Final Drive | Excavator Type: | Crawler Excavator |
|---|---|---|---|
| Parts No.: | 9181678 9195448 9233689 9233690 | Weight: | 250 KG |
| Packing: | Wood Box, Standard Carton, Pallet | Warranty: | 3/6 Months |
| High Light: | final drive,excavator gearbox |
||

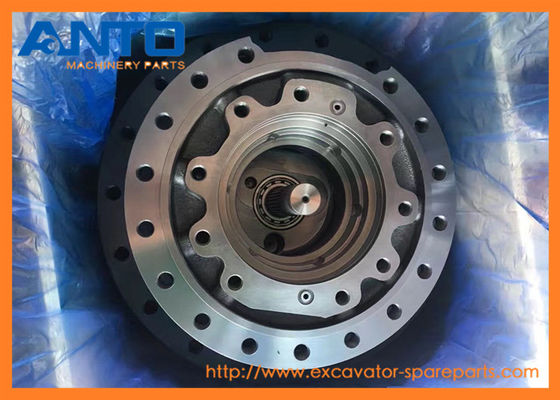

| Excavator spare parts name | Travel device |
| Equipment Model | ZX230 |
| Parts Category | excavator final drive |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
EXCAVATOR ZX200 . ZX225US . ZX225US-E . ZX225US-HCME . ZX225USR . ZX225USR-E . ZX225USRK . ZX230 . ZX230-HHE . ZX240H . ZX240K . ZX240LC-HHE . ZX250-HCME . Hitachi
9181678 I[2] -
TRAVEL DEVICE 9195448 (for assembly of machine)
9233689[2] -
TRAVEL DEVICE (for assembly of machine) .
9195448[2] -
TRAVEL DEVICE (for transportation) .
9233690[2] -
TRAVEL DEVICE (for transportation) .
00.9190294 I[1] -
MOTOR;OIL 9237803 (for assembly of machine) .
00.9234159 I[1] -
MOTOR;OIL 9237803 (for assembly of machine) .
00.9196318[1] -
MOTOR;OIL (for transportation) .
00.9237803[1] -
MOTOR;OIL (for transportation) .
02.4114753 I[1] -
SEAL;GROUP 4634693 .
02.4634693[1] -
SEAL;GROUP .
03.4246793[2] -
BRG.;ROL. .
04.1027152[1] -
DRUM .
05.1010203[1] -
SPROCKET
06.J932055[16] -
BOLT
07.A590920[16] -
WASHER;SPRING .
08.3086531[1] -
NUT
11.4436242[1] -
PIN;KNOCK .
12.1026779[1] -
CARRIER (3) .
13.3085966[3] -
GEAR;PLANETARY (3) .
14.4445531[6] -
BRG.;NEEDLE .
15.4284521[6] -
PLATE;THRUST .
16.4139975[3] -
PIN .
17.4116309[3] -
PIN;SPRING .
18.3085927[1] -
GEAR;SUN (3) .
20.1027158[1] -
GEAR;RING
21.J931640[28] -
BOLT .
23.1027161[1] -
CARRIER (2)
24.4401293[2] -
SPACER
25.3085985[3] -
GEAR;PLANETARY (2) .
26.4445529[3] -
BRG.;NEEDLE .
27.4210851[6] -
PLATE;THRUST .
28.4309995[3] -
PIN .
29.4246358[3] -
PIN;SPRING .
30.3085941[1] -
GEAR;SUN (2)
32.1027160[1] -
CARRIER (1)
33.3086006[3] -
GEAR;PLANETARY (1) .
34.4406589[3] -
BRG.;NEEDLE .
35.4192910[6] -
PLATE;THRUST .
36.4210853[3] -
PIN .
37.4173093[3] -
PIN;SPRING
38.2043851[1] -
SHAFT;PROP. .
38.2051204[1] -
SHAFT;PROP.
40.2043868[1] -
COVER .
41.4285323 Y[1] -
PIN;STOPPER 4478346
41.4478346[1] -
PIN;STOPPER .
42.J011230[12] -
BOLT;SEMS .
42.J271230 T[12] -
BOLT;SEMS J901230 .
J222012
43.4245797[3] -
PLUG .
46.+++++++[1] -
NAME-PLATE
47.M492564[2] -
SCREW;DRIVE
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
