Product Details:
Payment & Shipping Terms:
|
| Model Numb: | EC460B EC460C PL4608 PL4611 | Category: | Hydraulic System, Oil Cooling Pump Mount |
|---|---|---|---|
| Part Number: | 14537295 | Product Name: | Hydraulic Gear Pump |
| Lead Time: | 1-3 Days For Delivery | Packing: | Standard Export Carton |
| Highlight: | Hydraulic Gear Pump Excavator Spare Parts,14537295 Hydraulic Pump For EC460B,VOE14537295 Excavator Hydraulic Pump |
||
| Category | Hydraulic system, oil cooling pump mount |

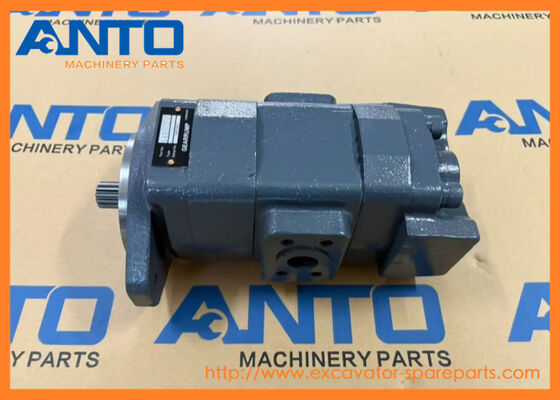

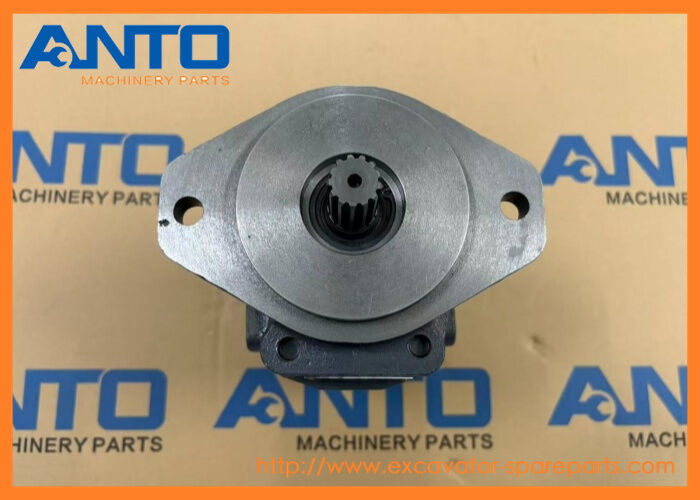

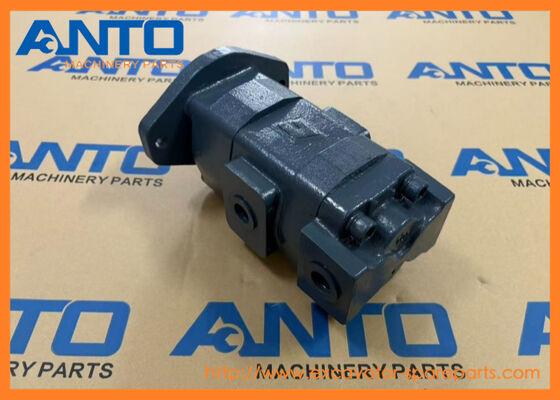

| Name | Hydraulic Gear Pump |
| Parts No | 14537295 |
| Machine Model | EC460B EC460C PL4608 PL4611 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Supplies stable flow of hydraulic oil for the cooling fan circuit, driving the hydraulic fan motor to control radiator cooling and keep engine hydraulic temperature within normal range |
| 2.Acts as charge pump, replenishes oil to the main hydraulic circuit, maintains system back pressure, and supports auxiliary hydraulic functions. |
| 3.Delivers continuous fixed displacement flow as the gears rotate, reliable for heavy-duty working conditions. |
EXCAVATORS EC460B EC460C PL4608 PL4611
| VOE20784020 Pump shaft |
| A35D, EC330B, EC360B, EC460B, EC700B, FB2800C, FBR2800C, G900 MODELS, L150E, L180E, L220E |
| VOE14526609 Pump |
| EC460B, EC460C, PL4608, PL4611 |
| VOE14541672 Pump |
| EC460C |
| VOE14622021 Pump |
| EC240B, EC240C, EC250D, EC250E, EC290B, EC290C, EC300D, EC300E, EC330B, EC330C, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC480E... |
| VOE14539074 Pump |
| EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC340D, EC350D, EC360B, EC360C, EC360CHR, EC380D, EC460B, EC460C, EC460CHR, EC700B, EC700BHR, EC700C, ECR305C, FC2924C, FC3329C, PL4608, PL4611 |
| RM20385001 Pump |
| RW195D |
| VOE15127941 Pump unit |
| L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250G, L250H, L350F |
| RM20170064 Pump shaft |
| RW100A, RW195D |
| VOE12763106 Pump |
| P7110, P7110B, P7170, P7170B |
| RM14289771 Pump |
| ABG325 |
| RM80718612 Pump Holder Sheet |
| MW500 |
| VOE11993393 Pump element |
| L160 |
| VOE12765943 Pump |
| CR24/CR30, DD100, DD105, DD112/DD118/DD120, DD132/DD138/DD140, DD14/DD15/DD16, DD25, DD25B, DD29/DD30/DD31HF/DD38HF, DD70/DD70HF, DD90/DD90HF, DD90B, PF6110, PF6160/PF6170, PT125/PT125R, PT125C |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14537295 | [1] | Pump | ||
| 1 | VOE14536185 | [1] | Cover | |
| 2 | VOE14536193 | [1] | Housing | |
| 3 | VOE14536189 | [1] | Carrier | |
| 4 | VOE14536193 | [1] | Housing | |
| 5 | VOE14536190 | [1] | Cover | |
| 6 | VOE14536186 | [1] | Gear | WITHOUT SPLINE |
| 7 | VOE14536188 | [1] | Gear | WITH SPLINE |
| 8 | VOE14536204 | [1] | Shaft | |
| 9 | VOE14536197 | [4] | Plate | |
| 10 | VOE14536201 | [1] | Seal | |
| 11 | VOE14530615 | [4] | Seal | |
| 12 | VOE14530614 | [4] | Seal | |
| 13 | VOE14530613 | [4] | Seal | |
| 14 | VOE14536202 | [8] | Pin | |
| 15 | VOE14590580 | [4] | Stud | |
| 16 | VOE14536203 | [4] | Washer | |
| 17 | VOE14536207 | [4] | Nut | |
| 100 | VOE14536209 | [1] | Sealing kit |
![]()
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
