3035852 Center Gear HITACHI Excavator Hydraulic Pump Parts For EX270 EX300 EX310H-3C

• 3035852 Center Gear HITACHI Excavator Hydraulic Pump Parts For EX270 EX300 EX310H-3C



• Specifiion

• Functions

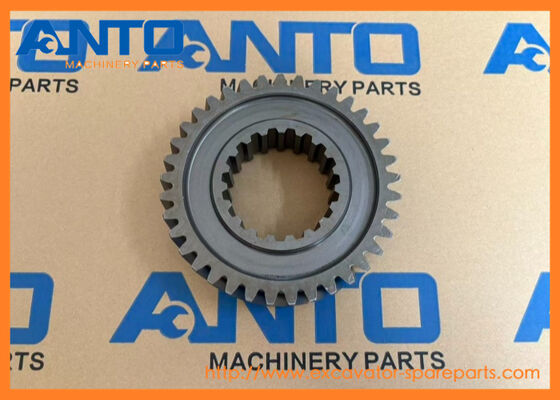

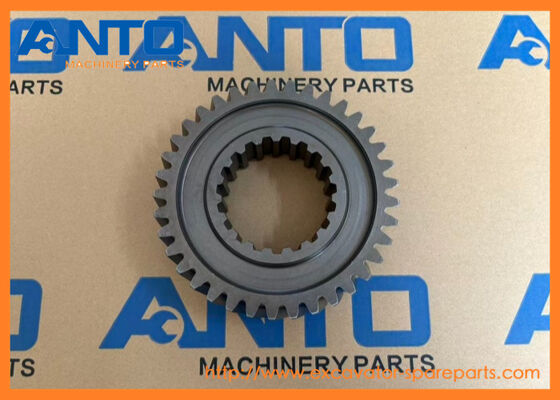

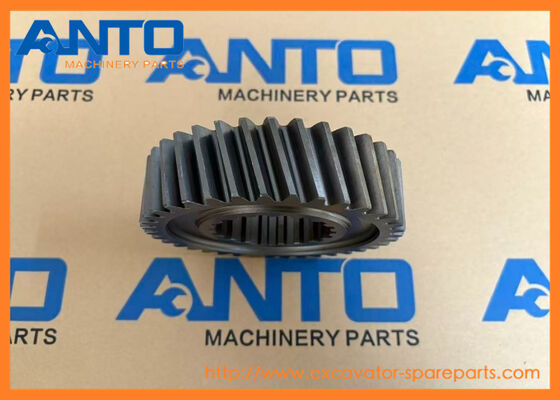

This 3035852 center gear is a core transmission gear inside the HPV145 hydraulic pump for Hitachi excavators.

It transfers rotational power, transmits torque between the pump drive and internal gear set, matches rotating speed, and drives the pump cylinder group to build hydraulic pressure for machine travel and working actions.

Its internal spline connects with the drive shaft to realize power input and stable power delivery.

• Appliion

EX270 EX300 EX300-2 EX300-3 EX300-3C EX300-5 EX300-5HHE EX300LC-5M EX300LCLL-5 EX300LCLL-5M EX310H-3C EX345USR(LC) EX350H-5 EX350H-5HHE EX350K-5 EX370-5M EX370HD-5 EX370LL-5M EX385USR LX80RS-2 Hitachi

• More gear related parts for HITACHI machine

• Catalog parts list diagram

Pos.	Part No	Qty	Parts name	Comments
1	1010373	[1]	CASING;GEAR
1	1013618	[1]	CASING;GEAR
01-73.	9075748	[1]	PUMP;DOUBLE ASS'Y
4	3035852	[1]	GEAR;CENTER
5	3038090	[1]	SHAFT;CENTER
8	4023596	[1]	BRG.;BALL
9	4198787	[1]	BRG.;BALL
10	4191219	[1]	RING;RETAINING
11	4179833	[1]	SEAL;OIL
12	3033593	[1]	COVER;T.MISSION
13	4179834	[1]	O-RING
14	991733	[1]	RING;RETAINING
17	4181700	[1]	PUMP;GEAR
19	M341028	[2]	BOLT;SOCKET
20	984054	[2]	WASHER;SPRING
21	A590110	[2]	WASHER;PLANE
23	4191974	[1]	ADAPTER
23A.	4506418	[1]	O-RING
28	3035853	[2]	GEAR;DRIVE
29	991345	[2]	RING;RETAINING
32	9075749	[2]	PUMP;SINGLE
32A.	9075750	[1]	REGULATOR
35	M211645	[8]	BOLT
36	4126090	[4]	WASHER;SEAL
37	A590916	[4]	WASHER;SPRING
40	4234782	[1]	PLUG
41	94-0649	[1]	ELBOW
42	J728684	[1]	REDUCER	I 4234782
43	4511984	[1]	PLUG	I 4234782
45	4196389	[1]	GAUGE;LEVEL	T 4236198
45	4196389	[1]	GAUGE;LEVEL	T 4236328
45A.	4509180	[1]	O-RING
48	4092534	[1]	PLUG	T 4217653
48	4092534	[1]	PLUG	T 4509180
48	4217653	[1]	PLUG
48A.	4509180	[1]	O-RING
49	4509180	[1]	O-RING
50	4192946	[2]	PIPE
52	4192947	[2]	PIPE
53	4179837	[6]	FITTING;PIPE
53A.	957366	[1]	O-RING
54	4203485	[2]	FITTING;PIPE
54A.	957366	[1]	O-RING
55	3036249	[1]	PIPE
56	3036486	[1]	PIPE
57	4118499	[4]	FITTING;PIPE
57A.	957366	[1]	O-RING
59	4179843	[2]	CLAMP
60	J900828	[1]	BOLT
61	M500807	[1]	NUT
62	A590908	[1]	WASHER;SPRING
63	4236198	[1]	GAUGE;LEVEL
63	4242263	[1]	GAUGE;LEVEL
64	4242262	[1]	PIPE;GUIDE
65	M340816	[2]	BOLT;SOCKET
66	4243160	[1]	PACKING
67	3039521	[1]	NAME-PLATE
68	M492564	[2]	SCREW;DRIVE
69	4236328	[1]	PIPE;GUIDE ASS'Y
69A.	4236200	[1]	PIPE
69B.	4236199	[1]	ADAPTER
69C.	4509180	[1]	O-RING
73	4118705	[1]	COUPLING ASS'Y
73A.	4183171	[1]	HUB
73B.	4183170	[2]	SCREW;SET
73C.	4101345	[12]	PIN;SPRING
73D.	4183167	[4]	INSERT
73E.	4183169	[4]	BOLT;SOCKET
73F.	4183166	[4]	INSERT
73G.	4183168	[4]	BOLT;SOCKET
73H.	4183165	[1]	COUPLING
80	J901040	[3]	BOLT
81	J901035	[5]	BOLT
82	A590910	[8]	WASHER;SPRING
