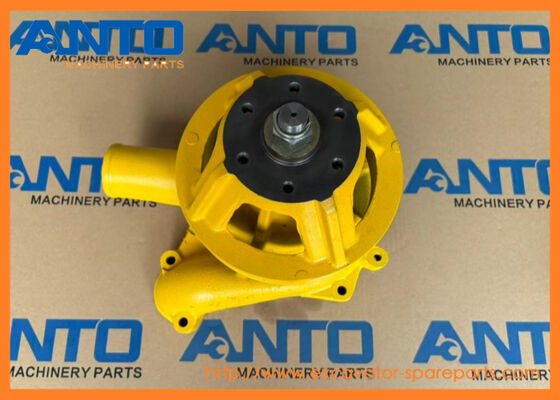

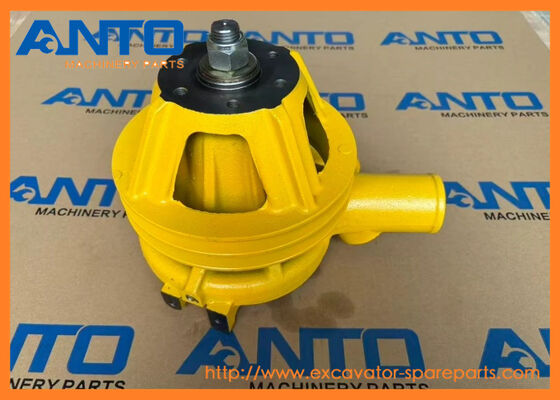

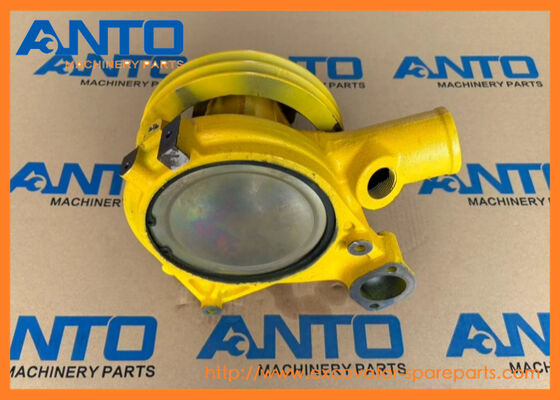

- 6222-61-2200 6222612200 Water Pump KOMATSU Excavator Spare Parts For S6D108E-2A-S6
| Name |
Water Pump |
| Parts No |
6222-61-2200 6222612200 |
| Engine Model |
S6D108E-2A-S6 |
| Category |
KOMATSU Engine Cooling Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Circulate engine coolant |
| It is the core driving component of the engine cooling system. Driven by the engine, it forces coolant to circulate continuously inside the engine block, cylinder head, radiator and expansion tank. The coolant absorbs heat generated during engine combustion and friction. |
| |
| 2.Control engine operating temperature |
| Hot coolant flows to the radiator for heat dissipation, then returns to the engine after cooling down. This cycle keeps the diesel engine working within the designed optimal temperature range, prevents overheating, and also helps the engine reach working temperature quickly during cold start. |
| |
| 3.Protect engine components |
| Stable coolant circulation avoids high-temperature damage such as cylinder liner scuffing, piston seizure, cylinder head cracking and gasket burnout. It reduces thermal deformation and prolongs engine service life. |
| |
| 4.Maintain cooling system pressure balance |
| Cooperates with thermostat and radiator to stabilize the whole cooling circuit, prevent local boiling and air blockage inside the water channel. |
EXCAVATORS 6D105 PC200-1 WA300-1 PC200-2 Komatsu
- More other water pump parts fit for KOMATSU machine
| 6136-61-1601 WATER PUMP ASS'Y,(WITH NON HARDENING PULLEY) |
| 6D105 |
| |
| 6136-61-1202 WATER PUMP ASS'Y,(HARDENING PULLEY TYPE) |
| 6D105 |
| |
| 6136-61-1401 WATER PUMP ASS'Y,(FOR EG75) |
| 6D105, S6D105 |
| |
| 6131-61-1202 WATER PUMP ASS'Y |
| S4D105 |
| |
| 6136-61-1600 WATER PUMP ASS'Y,(WITH NON HARDENING PULLEY) |
| 6D105, S6D105 |
| |
| 6222-61-2200 WATER PUMP ASS'Y |
| S6D108E, SAA6D108E |
| |
| 6215-61-1506 WATER PUMP ASS'Y |
| SA12V140, SAA12V140E, SDA12V140, SDA12V140E |
| |
| 6219-61-1100 WATER PUMP ASS'Y |
| SA12V140, SAA12V140E, SDA12V140, SDA12V140E |
| |
| 6215-61-1505 WATER PUMP ASS'Y |
| EGS1000, EGS1050, EGS1200, SA12V140, SAA12V140E, SDA12V140, SDA12V140E |
| |
| 6131-62-1204 WATER PUMP ASS'Y |
| S4D105 |
| |
| 154-04-X1000 WATER SEPARATOR G. |
| D85A, D85E, D85P |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
6222-61-2200 |
[1] |
WATER PUMP ASS'Y Komatsu OEM |
23.8 kg. |
| |
|
|
["SN: 35928-UP"] |1. |
|
| 2. |
07062-00000 |
[1] |
VALVE Komatsu |
0.013 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 3. |
6138-61-1330 |
[1] |
IMPELLER Komatsu |
0.82 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 4. |
6150-61-1520 |
[1] |
SEAL¤ WATER Komatsu China |
0.03 kg. |
| |
|
|
["SN: 35928-UP"] analogs:["6211611530", "6211611521", "6211611520", "6211611532", "6211611533"] |
|
| 5. |
6138-61-1320 |
[1] |
SHAFT Komatsu |
1.21 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 6. |
6222-61-1290 |
[1] |
SPACER Komatsu |
0.73 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 7. |
06047-06207 |
[1] |
BEARING,BALL Komatsu China |
|
| |
|
|
["SN: 35928-UP"] |
|
| 8. |
06040-05207 |
[1] |
BEARING,BALL Komatsu China |
|
| |
|
|
["SN: 35928-UP"] |
|
| 9. |
6138-61-1120 |
[1] |
COVER Komatsu |
0.386 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 10. |
6138-61-1130 |
[1] |
RING Komatsu China |
|
| |
|
|
["SN: 35928-UP"] |
|
| 11. |
07000-05160 |
[1] |
O-RING (K2) Komatsu OEM |
0.017 kg. |
| |
|
|
["SN: 35928-UP"] analogs:["0700015160"] |
|
| 12. |
6162-63-1440 |
[1] |
RING Komatsu |
0.02 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 13. |
01598-02223 |
[1] |
NUT Komatsu China |
|
| |
|
|
["SN: 35928-UP"] analogs:["0155502223"] |
|
| 14. |
01643-32260 |
[1] |
WASHER Komatsu China |
0.042 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 15. |
6131-62-1340 |
[1] |
SEAL,OIL Komatsu |
0.04 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 16. |
6134-61-1390 |
[1] |
SLEEVE Komatsu |
0.037 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 17. |
6222-61-1410 |
[1] |
PULLEY,NON HARDENING Komatsu China |
|
| |
|
|
["SN: 35928-UP"] |
|
| 18 |
6136-61-1820 |
[1] |
GASKET (K2) Komatsu |
0.02 kg. |
| |
|
|
["SN: 35928-UP"] analogs:["6136611811"] |
|
| 19 |
01435-01045 |
[1] |
BOLT Komatsu |
0.035 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 20 |
01435-01055 |
[3] |
BOLT Komatsu |
0.04 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 21 |
6136-61-1210 |
[1] |
BRACKET Komatsu China |
|
| |
|
|
["SN: 35928-UP"] |
|
| 22 |
6112-23-6971 |
[1] |
SPACER Komatsu |
0.125 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 23 |
01435-00816 |
[2] |
BOLT Komatsu |
0.013 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 24 |
01435-01075 |
[1] |
BOLT Komatsu |
0.049 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 25 |
6138-61-6120 |
[1] |
HOSE Komatsu |
0.11 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 26 |
6221-61-6110 |
[1] |
NIPPLE Komatsu China |
|
| |
|
|
["SN: 35928-UP"] |
|
| 27 |
07281-00549 |
[2] |
CLAMP Komatsu |
0.041 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 28 |
6221-11-6540 |
[1] |
HOUSING,THERMOSTAT Komatsu China |
|
| |
|
|
["SN: 35928-UP"] |
|
| 29 |
6221-11-6820 |
[1] |
GASKET Komatsu China |
|
| |
|
|
["SN: 35928-UP"] analogs:["6221116890"] |
|
| 31 |
01435-01060 |
[1] |
BOLT Komatsu |
0.042 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 32 |
7861-92-3320 |
[1] |
SENSOR,WATER TEMPERATURE Komatsu OEM |
0.076 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 33 |
08053-01512 |
[1] |
CLIP Komatsu |
0.02 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 34 |
01641-20812 |
[1] |
WASHER Komatsu |
0.005 kg. |
| |
|
|
["SN: 35928-UP"] analogs:["YM22117080000"] |
|
| 35 |
07043-A0415 |
[1] |
PLUG Komatsu |
0.032 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 36 |
07043-A0312 |
[1] |
PLUG Komatsu China |
|
| |
|
|
["SN: 35928-UP"] |
|
| 37 |
07040-11409 |
[2] |
PLUG Komatsu |
0.033 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 38 |
07005-01412 |
[2] |
GASKET (K1) Komatsu China |
0.01 kg. |
| |
|
|
["SN: 35928-UP"] analogs:["1294807H1", "YMR001361", "YM22190140002", "6731715880"] |
|
| 39 |
600-421-6310 |
[1] |
THERMOSTAT Komatsu |
0.3 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 40 |
6138-11-6810 |
[1] |
GASKET (K1) Komatsu OEM |
0.01 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 41 |
6221-11-6520 |
[1] |
CONNECTOR Komatsu |
1 kg. |
| |
|
|
["SN: 35928-UP"] |
|
| 42 |
01435-00825 |
[3] |
BOLT Komatsu |
0.016 kg. |
| |
|
|
["SN: 35928-UP"] |
|
