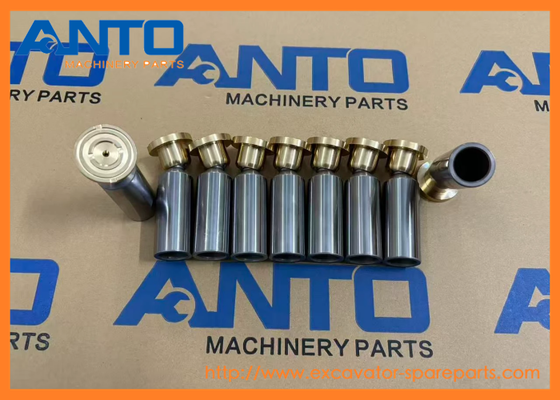

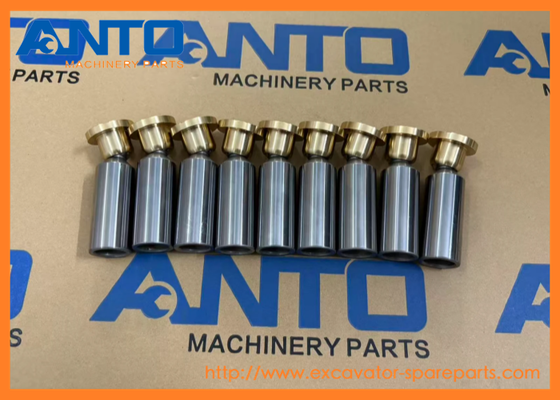

- 39Q8-41321 Piston Excavator Spare Parts Fitting For R250Lc-9 R260Lc-9S R300Lc-9S
| Name |
Piston |
| Parts No |
39Q8-41321 |
| Machine Model |
R290LC7A R450LC7 R500LC7 RD340LC-7 |
| Category |
Travel Motor |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Transmit hydraulic pressure force It is the core moving component inside the hydraulic main pump. When high-pressure oil pushes against it, it converts hydraulic pressure into mechanical rotary power to drive the pump output flow for excavator working actions. |
| |
| 2.Form sealed oil chamber Sliding with the swash plate, it creates variable volume oil cavities. As the piston reciprocates, the pump completes oil suction and oil discharge continuously. |
| |
| 3.Bear heavy load & wear resistance It withstands high pressure, impact and friction during continuous operation. Its polished sliding surface maintains stable contact with the swash plate and reduces internal leakage. |
| |
| 4.Adjust displacement together with swash plate When the swash plate angle changes, the piston stroke changes accordingly, so the hydraulic pump automatically adjusts output flow to match different load demands of the excavator. |
7-SERIES CRAWLER EXCAVATOR R290LC7A R450LC7 R500LC7 RD340LC-7
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH R430LC9 R430LC9A R430LC9SH R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S
F-SERIES CRAWLER EXCAVATOR HX260L HX300L HX330L HX430L HX480L HX520L Hyundai
- More other piston parts fit for HYUNDAI machine
| 4934860 PISTON-ENGINE |
| 110D-7E, HL730-7A, HL730-9, HL730-9S, HL730-9SB, HL730TM-9, HL730TM7A, HL740-7A, HL740-9, HL740TM-7A, HL740TM-9, HL757-7A, HL757-9, HL757-9S, HL757-9SB, HL757TM-9, HL760-7A, HL760-9, HL760-9SB, R290LC... |
| |
| 3917707 PISTON |
| HL760-9S, R300LC9S, R320LC7, R330LC9S |
| |
| XKBN-01978 PISTON |
| R380LC9DM, R520LC9 |
| |
| ZTAJ-00088 PISTON-BRAKE |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| |
| 31Y1-35586 PISTON |
| HX480L, HX520L, R500LC7, R800LC-9, R800LC7A, RD510LC-7 |
| |
| XKBN-02658 PISTON |
| BREAKERS, R520LC9, R520LC9A, R520LC9S |
| |
| ZSAE-00245 PISTON |
| HL770-F, HL780-F, HX480L, HX520L, R700LC9 |
| |
| ZSAE-01084 PISTON |
| HL780-F, HX480L, HX520L |
| |
| ZSAE-01077 PISTON RING KIT |
| HL780-F, HX480L, HX520L |
| |
| 39K7-41380 PISTON-PARKING |
| HX235L, HX260L |
| |
| 39Q8-41332 PISTON |
| HX300L, HX330L, HX480L, HX520L, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| |
| XJBN-01932 PISTON |
| R330LC9S |
| |
| 3930189 PISTON-ENGINE |
| R250LC3 |
| |
| 3930188 PISTON-ENGINE |
| R250LC3 |
| |
| 3930187 PISTON-ENGINE |
| R250LC3 |
| |
| 31Y1-12770 PISTON |
| R250LC3 |
| |
| 31Y1-09790 PISTON |
| R250LC3 |
| |
| 1320-159 PISTON |
| R250LC3, R450LC3A |
| |
| XKCD-03624 PISTON NUT |
| HX235L, R235LCR9, R235LCR9A |
| |
| XKCD-03622 PISTON |
| HX235L, R235LCR9, R235LCR9A |
| |
| XKDE-02389 PISTON-ENGINE |
| R210W9S |
| |
| XKDE-02386 PISTON-ENGINE |
| R210W9S |
| |
| XKDE-01277 PISTON-ENGINE |
| R260LC9S |
| |
| XJDD-01289 PISTON |
| HW210, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| |
| 39Q8-41331 PISTON |
| R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, RD340LC-7 |
| |
| 39Q8-41370T1 PISTON-PARKING |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| |
| XKDE-01278 PISTON,ENGINE |
| R260LC9S |
| |
| 38A01-11 PISTON SUB |
| R280LC |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR ASSY |
SEE 4135 |
| *-1. |
39Q8-41100 |
[1] |
TRAVEL MOTOR UNIT |
TYPE 2 |
| *-1. |
38Q8-41100 |
[1] |
TRAVEL MOTOR |
TYPE 3 |
| 1 |
39Q8-41110 |
[1] |
CASING |
|
| K2. |
39Q6-41120 |
[13] |
PLUG |
|
| K3. |
39Q8-41120 |
[1] |
SEAL-OIL |
|
| K4. |
39Q8-41130 |
[1] |
BLOCK-THRUST |
|
| NK5. |
S632-095004 |
[1] |
O-RING |
|
| 6 |
S602-100001 |
[1] |
RING-RETAINING,C TYPE |
|
| NK7. |
39Q8-41150 |
[1] |
PISTON |
|
| NK8. |
39Q8-41160 |
[1] |
SEAL-PISTON |
|
| 9 |
39Q8-41170 |
[1] |
SHAFT |
|
| 10 |
39Q8-41180 |
[1] |
BEARING-CYL.ROLLER |
|
| K11. |
39Q8-41190 |
[1] |
BEARING-NEEDLE |
|
| 12 |
S601-055001 |
[1] |
RING-RETAINING,C TYPE |
|
| 13 |
S751-040004 |
[1] |
RING-RETAINING,C TYPE |
|
| 14 |
39Q8-41210 |
[1] |
PLATE-THRUST |
|
| 15 |
39Q8-41220 |
[1] |
BALL-STEEL |
|
| 16 |
39Q8-41230 |
[2] |
PIVOT |
|
| 17 |
39Q8-41240 |
[1] |
PLATE-SWASH |
|
| NK18. |
39Q8-41270 |
[1] |
BLOCK-CYLINDER |
|
| NK19. |
39Q8-41280 |
[9] |
SPRING |
|
| NK20. |
39Q8-41300 |
[1] |
GUIDE-BALL |
|
| NK21. |
39Q8-41310 |
[1] |
PLATE-RETAINER |
|
| NK22. |
39Q8-41320 |
[9] |
PISTON ASSY |
|
| NK22. |
39Q8-41321 |
[9] |
PISTON ASSY |
|
| N22-1. |
39Q8-41330 |
[1] |
PISTON |
|
| N22-1. |
39Q8-41331 |
[1] |
PISTON |
|
| N22-1. |
39Q8-41332 |
[1] |
PISTON |
|
| N22-2. |
39Q8-41340 |
[1] |
SHOE |
|
| 23 |
39Q8-41351 |
[5] |
PLATE-FRICTION |
|
| 23 |
39Q8-41351 |
[6] |
PLATE-FRICTION |
|
| 24 |
39Q8-41360 |
[6] |
PLATE-SEPARATE |
|
| 24 |
39Q8-41360 |
[7] |
PLATE-SEPARATE |
|
| 25 |
39Q8-41370 |
[1] |
PISTON-PARKING |
SB-I-2013-41.PDF |
| 25 |
39Q8-41370T1 |
[1] |
PISTON-PARKING |
FOR A/S |
| NK26. |
39Q8-41380 |
[1] |
D-RING |
|
| NK27. |
39Q8-41390 |
[1] |
D-RING |
|
| 28 |
39Q8-41400 |
[1] |
PLATE-VALVE |
|
| 28 |
39Q8-41600 |
[1] |
PLATE-VALVE |
|
| *-2. |
@ |
[1] |
TRAVEL REDUCTION GEAR |
SEE 4137 |
| K. |
39Q8-41140 |
[1] |
PLUG KIT |
SEE ILLUST |
| K. |
39Q8-41250 |
[1] |
ROTARY KIT |
SEE ILLUST |
| K. |
39Q8-41260 |
[1] |
CYLINDER BLOCK KIT |
SEE ILLUST |
| K. |
39Q8-41290 |
[1] |
RETAINER KIT |
SEE ILLUST |
| K. |
39Q8-41440K |
[1] |
COVER KIT-REAR |
SEE ILLUST |
| K. |
38Q8-41440K |
[1] |
COVER KIT-REAR |
SEE ILLUST |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
