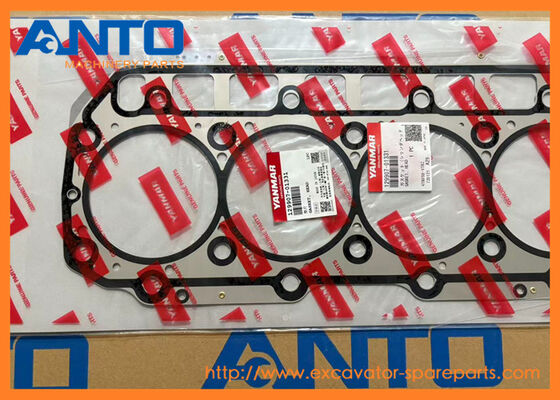

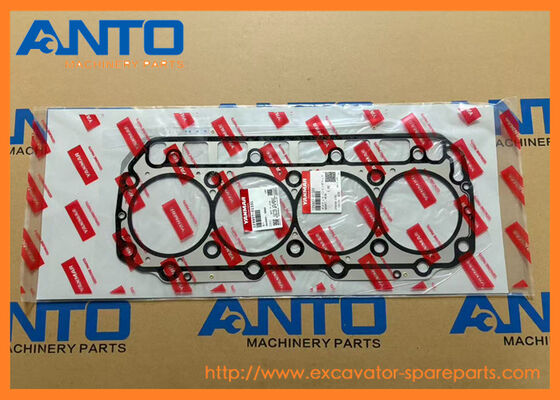

- 129907-01331 12990701331 Cylinder Head Gasket Excavator Engine Parts For 4TNV98 4TNV94L ZX60USB
| Category |
Cylinder Block |
| Name |
Cylinder Head Gasket |
| Parts No |
129907-01331 12990701331 |
| Machine Model |
ZX60USB-3F ZX65USB-3F |
| Engine model |
4TNV98 4TNV94L |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.Sealing combustion chamber: Forms a tight seal between the cylinder head and engine block. It prevents leakage of high-pressure combustion gas inside cylinders, ensuring stable engine power output. |
| |
| 2.Coolant sealing: Blocks engine coolant from leaking between water passages, avoiding coolant loss and engine overheating. |
| |
| 3.Lubricating oil sealing: Separates oil galleries, stops engine oil from mixing with coolant or leaking into combustion chamber. |
| |
| 4.Pressure & heat resistance: Withstands extreme temperature and pressure changes during engine operation. It maintains sealing performance under heavy-duty working conditions. |
| |
| 5.Isolation of media: Keeps combustion gas, cooling liquid and lubricating oil separated from one another to avoid cross-contamination. |
ZX60USB-3F ZX65USB-3F Hitachi
- More other gasket for HITACHI engines
| 4428123 GASKET |
| EX20UR-3, EX27U, EX27UNA, EX30U, EX35U, EX35UNA, VR308, VR308-2, VR408, VR408-2, ZX14-3, ZX14-3CKD, ZX16-3, ZX17U-2, ZX17UNA-2, ZX18-3, ZX20UR, ZX22U-2, ZX27U, ZX27U-2, ZX27U-3, ZX27U-3F, ZX29U-3, ZX2... |
| |
| 977770-1207F GASKET.LIQUID |
| ZX17U-2, ZX17UNA-2, ZX30U-3F, ZX33U-3F, ZX35U-3F, ZX38U-3F, ZX48U-3F, ZX50U-3F, ZX52U-3F, ZX60USB-3F, ZX65USB-3F |
| |
| 129930-13201 GASKET, SILENCER |
| ZX60USB-3F, ZX65USB-3F |
| |
| 4673212 GASKET |
| ZX60USB-3, ZX60USB-3F, ZX60USBNA-3, ZX65USB-3F |
| |
| 129933-11310 GASKET, BONNET |
| ZX60USB-3F, ZX65USB-3F |
| |
| 121850-49540 GASKET, THERMOSTAT |
| ZX60USB-3F, ZX65USB-3F |
| |
| 121850-49550 GASKET, THERMOSTAT |
| ZX60USB-3F, ZX65USB-3F |
| |
| 129900-49870 GASKET, CASE |
| ZX60USB-3F, ZX65USB-3F |
| |
| 729927-92660 GASKET SET(NON-ASB.) |
| ZX60USB-3F, ZX65USB-3F |
| |
| 129900-13251 GASKET |
| ZX60USB-3F, ZX65USB-3F |
| |
| 119129-77020 GASKET |
| ZX60USB-3F, ZX65USB-3F |
| |
| 129900-42020 GASKET, CW-P |
| ZX60USB-3F, ZX65USB-3F |
| |
| YA00023849 GASKET |
| EH5000AC-3-C |
| |
| T122669 GASKET |
| DX75, DX75L, DX75M |
| |
| 8976036760 GASKET; INL MANIF TO HD |
| 470G LC, ZX470-5B, ZX470-5B-LD, ZX470H-5B, ZX470H-5B-LD, ZX470LC-5B, ZX470LCH-5B, ZX470LCR-5B, ZX470R-5B |
| |
| 8941678840 GASKET; OIL FILTER |
| EX40, EX45, EX60UR |
| |
| 5863008700 GASKET; FRT PLATE TO C/BL |
| EX20U-3, EX20UR-3, ZX25 |
| |
| 4719139 GASKET |
| EH4000AC2 |
| |
| T174394 GASKET |
| LX100-5, LX120-5, LX150-5, LX230-5 |
| |
| R119383 GASKET |
| LX150-5 |
| |
| 8976085720 GASKET; PLUG |
| 470G LC, ZX470-5B, ZX470-5B-LD, ZX470H-5B, ZX470H-5B-LD, ZX470LC-5B, ZX470LCH-5B, ZX470LCR-5B, ZX470R-5B |
| |
| 4371670 GASKET |
| EX3500 |
| |
| 4299552 GASKET |
| EX1800, EX3500 |
| |
| 1878106575 GASKET SET; ENG OVERHAUL |
| CX1100, EX400, EX400-3, KH1000, KH500-3, KH850-3 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
729907-01560 |
[1] |
BLOCK ASSY, CYLINDER |
|
| 4 |
129900-01250 |
[1] |
PLUG 55 |
|
| 5 |
171051-01921 |
[1] |
PLUG |
|
| 6 |
129900-02020 |
[10] |
BOLT, METAL CAP |
|
| 9 |
129900-02410 |
[1] |
BUSH, CAMSHAFT |
|
| 10 |
22351-060012 |
[2] |
SPRING PIN 6X12 |
|
| 11 |
23876-030000 |
[1] |
PLUG PT3/8,SCREW |
|
| 12 |
23876-030000 |
[1] |
PLUG PT3/8,SCREW |
|
| 13 |
23876-030000 |
[1] |
PLUG PT3/8,SCREW |
|
| 14 |
27241-300000 |
[8] |
PLUG 30 |
|
| 24 |
129900-02931 |
[2] |
BEARING ASSY, THRUST |
|
| 27 |
129900-01200 |
[18] |
BOLT, HEAD |
|
| 28 |
129907-01331 |
[1] |
GASKET,CYLINDER HEAD |
|
| 29 |
129907-01190 |
[1] |
SPACER |
|
| 30 |
729900-02801 |
[5] |
MAIN BEARING SET |
(1) REPAIR PART. |
| 33 |
129900-02341 |
[5] |
MAIN BEARING US=0.25 |
(2) UNDER-SIZED(U.S=0.25)PART. |
| 36 |
129900-02941 |
[2] |
BEARING,THRUST .25OS |
(3) OVER-SIZED(O.S=0.25)PART. |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
