160094A1 160144A1 Final Drive Hub Housing Gear Excavator Parts Applied To Sumitomo SH200

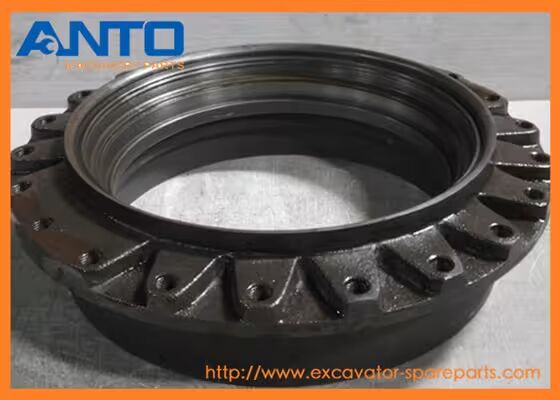

Large Image : 160094A1 160144A1 Final Drive Hub Housing Gear Excavator Parts Applied To Sumitomo SH200

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	Sumitomo SH200

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Excavator FINAL DRIVE Gear	Machine Model:	SH200
Parts Name:	SH200 Drive Hub	Material:	Forged, Steel
Warranty:	3-6 Months	Package:	Standard Export Carton
Highlight:	Sumitomo SH200 final drive hub , excavator final drive gear housing , Sumitomo excavator final drive parts

160094A1 160144A1 Final Drive Hub Housing Gear Excavator Parts Applied To Sumitomo SH200

Description

160094A1 and 160144A1 are a matched set of Final Drive components for Case, Link-Belt, and Sumitomo heavy machinery (e.g., SH200 excavators). They work together in the travel drive gearbox to deliver torque to the undercarriage.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

Spec Sheet

*PARTS NAME*	SH200 Final drive HUB
*EQUIPMENT*	SH200 Excavator
*Category*	Excavator final drive
*ITEM CONDITION*	New
*Appliion*	Replacement
*MATERIAL*	Steel
*PROCESSING*	Casting
*MOQ*	1 pcs

Parts gear Case catalog

J918776 GEAR

2555, PX190, 420, PX215, 420 TIER 3, PX240, 620, 625, 2166, 2188, 2366, 2377, 2388, 2577, 2588, CX330, 6TAA-8304 275HP, 6TAA-8304 305HP, CPX420, 6TAA-9004 350HP, CPX610, CPX620, STEIGER 280, STEIGER 3...

J905427 GEAR

5140, 688BCK, PX190, 5150, 1666, PX215, 420 TIER 3, CX240, PX240, 5230, 1680, 5240, 5250, 855D, 1688, 1800, 2144, 2166, 688C, 2188, 1822, 2344, 750K, 2366, W14B, 1844, 2377, W14C, 2388, 2022, 2044, 25...

J918777 GEAR

2555, 7130, PX190, 420, MX210, 721B, 821B, MX180, 721C, 821C, 2166, 2188, MX220, PX215, 2366, 2377, MX230, SPX4260, 2388, 7140, 7150, MX200, 7220, PX240, 885, 9040B, 7230, 9045B, 7240, 7250, 8910, 892...

J931387 GEAR

586E, 580L, 85XT, 2144, 621B, 570LXT, 90XT, 580SL, 585E, 888, 584E, 9030B, 590SL, 9020B, 95XT, 9010B, 590L

J931379 GEAR

721C, 821C, 8910, 2166, 8920, 721B, 2188, 9040B, 8930, 821B, 9045B, 8940, MX180, 885, 7240

160520A1 GEAR

CX210LR, 9020B, CX160B, CX160C, CX160D LC, CX210B, CX210C LC, 9030B, CX225SR, CX210N, CX210C LR, CX210D LC LR, CX210BNLC, CX210C NLC, CX210D NLC, CX160, CX235C SR, CX210

160145A1 GEAR WHEEL

9040B, 9030B

Parts Diagram

Pos.	Part No	Qty	Parts name	Comments
. .	160142A1	[1]	REDUCER	SUM TRANSMISSION ASSEMBLY - without track drive motor, Includes: Ref. 1 - 6
. .	160146A1	[1]	GEAR WHEEL	SUM CARRIER ASSEMBLY A - planetary gear; Incl Ref 1 - 6
1	160094A1	[1]	GEAR WHEEL	SUM CARRIER A - planetary gears
2	160004A1	[3]	SUN GEAR	SUM GEAR - planetary
3	160278A1	[3]	BEARING, NEEDLE,30mm ID x 40mm OD x 19.8mm W	SUM NEEDLE - bearing
4	160029A1	[3]	LARGE PIN	SUM SHAFT - gear
5	160291A1	[6]	THRUST WASHER	SUM WASHER - thrust
6	160109A1	[2]	PIN, ROLL	SUM PIN - roll, special
. .	160144A1	[1]	HOLDER	SUM CARRIER ASSEMBLY B - planetary gear, replaces 160144A1, carrier assembly B (replaces 164714A1 ), Includes: Ref. 7 - 12
7	160095A1	[1]	GEAR WHEEL	SUM CARRIER B - planetary gears
8	160005A1	[4]	SUN GEAR	SUM GEAR - planetary
9	160273A1	[4]	NEEDLE BEARING,35mm ID x 51mm OD x 24.8mm W	SUM BEARING - roller
10	160030A1	[4]	SHAFT	SUM - gear
11	160043A1	[3]	THRUST WASHER	SUM WASHER - thrust
12	160098A1	[4]	PIN, ROLL	SUM PIN - roll, special
. .	160145A1	[1]	GEAR WHEEL	SUM CARRIER ASSEMBLY C - planetary gear, Includes: Ref. 13 - 20
13	160207A1	[1]	HOLDER	SUM CARRIER C - planetary gears
14	160010A1	[4]	SUN GEAR	SUM GEAR - planetary
15	160326A1	[68]	ROLLER	SUM NEEDLE - bearing
16	160031A1	[4]	SHAFT	SUM - gear
17	160037A1	[4]	BUSHING	SUM RACE - bearing
18	160093A1	[8]	COLLAR	SUM - needle retaining
19	160044A1	[8]	THRUST WASHER	SUM WASHER - thrust
20	160099A1	[4]	PIN, ROLL	SUM PIN - roll, special
21	160007A1	[1]	PINION	SUM GEAR - drive
22	160038A1	[1]	PLATE, THRUST	SUM PLATE - thrust
23	160008A1	[1]	SUN GEAR	SUM GEAR B - sun
24	160009A1	[1]	SUN GEAR	SUM GEAR C - sun Superseded by part number: 155283A1
25	155643A1	[1]	RING, SNAP	SUM RING - snap
26	NSS	[1]	NOT SOLD SEPARAT	CON FLANGE - final drive transmission
27	156144A1	[2]	BEARING, BALL,240mm ID x 310mm OD x 32mm W	SUM BEARING - ball
28	NSS	[1]	NOT SOLD SEPARAT	CON HOUSING - bearing
29	160223A1	[1]	SHIM KIT	SUM KIT - shim
30	160104A1	[4]	PIN	SUM - dowel
31	863-16090	[4]	HEX SOC SCREW,M16 x 90mm, Cl 12.9	SUM BOLT - hex socket, 16-2.0 x 90 mm, class 12.9 Superseded by part number: 2465671
32	863-18055	[16]	HEX SOC SCREW,M18 x 55mm, Cl 12.9	SUM BOLT - hex socket, 18-2.5 x 55 mm, class 12.9 Superseded by part number: 108R018Z055N
33	156338A1	[4]	PLATE	SUM - lock
34	160006A1	[1]	PINION	SUM GEAR - ring
. .	160575A1	[1]	SEAL KIT	SUM KIT - seal, replaces 160224A1, seal kit, Includes: Ref. 35 and 36
35	155299A1	[1]	SEAL	SUM - face Superseded by part number: LE01126
36	155183A1	[1]	O-RING	SUM - seal
37	156200A1	[16]	BOLT,M14 x 95mm	SUM BOLT - hex socket, 14-2.0 x 95 mm
38	155647A1	[3]	COTTER PIN	SUM PIN - dowel
39	160220A1	[1]	SET OF PARTS	SUM KIT - thrust plate
40	160325A1	[1]	COVER	SUM - final drive transmission
41	863-10020	[16]	HEX SOC SCREW,M10 x 20mm, Cl 12.9	CAS BOLT - hex socket, 10-1.5 x 20 mm, class 12.9
42	151033A1	[3]	PLUG	SUM - hex socket, special
43	151026A1	[1]	PLUG	SUM - port
44	151022A1	[1]	PLUG	SUM - hex socket, special
45	892-10016	[4]	LOCK WASHER,M16	SUM WASHER - lock, 16 mm
46	155578A1	[1]	PIN	SUM - dowel
47	160002A1	[1]	COUPLING	SUM - drive motor Superseded by part number: 155257A1
48	738-1650	[1]	LOCK PIN,M6 x 50, Slotted	CAS PIN - roll, 6 x 50 mm

160094A1 160144A1 Final Drive Hub Housing Gear Excavator Parts Applied To Sumitomo SH200 0

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
