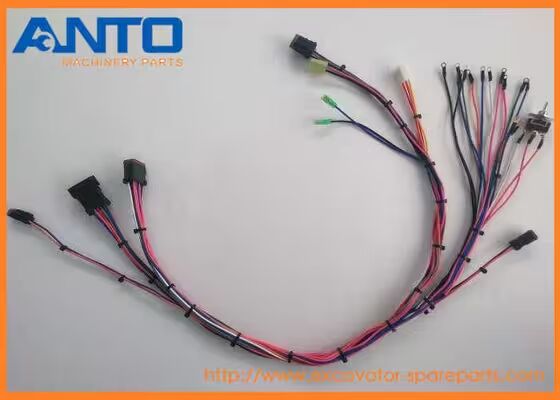

- 197-4279 1974279 Wiring Harness Excavator Engine Parts For 312C 315C 320C 322C
| Name |
Wiring Harness |
| Parts No |
197-4279 1974279 |
| Machine Model |
312C L 315C 318C 320C 320C FM 320C L 322C |
| Category |
Wiring Gp-Console |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
- Key specifications & Construction
| Material: |
| 1.High-purity oxygen-free copper conductors (for maximum conductivity & corrosion resistance) |
| 2.Heat-resistant, oil-resistant, abrasion-resistant cross-linked polyethylene (XLPE/PVC) insulation |
| 3.Protective outer jacket (black abrasion-resistant tubing) |
| |
| Connectors: |
| 1.Sealed, waterproof automotive-grade connectors (IP65+ rated) |
| 2.OEM-matching pin layouts |
| 3.Tin-plated terminals to prevent oxidation |
EXCAVATOR 312C L 315C 318C 320C 320C FM 320C L 322C
- More other harness parts fit for C A T machine
| 2851975 HARNESS AS-WIRING |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 553C, 559, 613G, 924H, 924HZ, 928H, 928HZ, 938H, 953D, 963D, AP-600D, AP-655D, AP1000E, AP1055E, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS... |
| |
| 3552682 HARNESS AS-LIGHTING |
| AP-600D, AP-655D |
| |
| 3159766 HARNESS AS-CHASSIS |
| AP-600D, BG600D |
| |
| 3555999 HARNESS AS-CHASSIS |
| AP-600D, BG600D |
| |
| 3535791 HARNESS AS-WIRING |
| AP-600D, AP1000E, AP1055E, AP555E, BG1000E, BG1055E, BG500E, BG600D |
| |
| 2920973 HARNESS AS-CHASSIS |
| AP-600D |
| |
| 3556000 HARNESS AS-CHASSIS |
| AP-600D |
| |
| 3116188 HARNESS AS-CONSOLE |
| AP-600D |
| |
| 3090939 HARNESS AS-WIRING |
| CS-56, CS-563E |
| |
| 4289421 HARNESS AS-SENSOR |
| CP-54B, CP-68B, CP-74B, CS-54B, CS-56B, CS-64B, CS-66B, CS-68B, CS-74B, CS-76B, CS-78B |
| |
| 2526629 HARNESS AS-CHASSIS |
| M322D |
| |
| 2526631 HARNESS AS-CHASSIS |
| M322D |
| |
| 2605542 HARNESS AS-ENGINE |
| 120M, 12M, 320D GC, 320D L, 323D L, 924H, 924HZ, 928H, 928HZ, AP1000E, AP1055E, C6.6, D6N, R1300G II |
| |
| 2382666 HARNESS AS-ENGINE |
| C6.6, R1300G II |
| |
| 3083378 HARNESS AS-SENSOR |
| C4.4 |
| |
| 3045164 HARNESS AS-ENGINE |
| C4.4, CW-34 |
| |
| 2880515 HARNESS AS-ENGINE |
| C4.4, CW-34 |
| |
| 3045165 HARNESS AS-ENGINE |
| C4.4, CB-54, CB-64, CP-44, CS-44, CS-54, CS-54B, D3K XL, D4K XL, D5K LGP, M313D, M315D |
| |
| 2519503 HARNESS AS-MOTOR |
| G3512, G3516 |
| |
| 2519410 HARNESS AS-ENGINE |
| G3512 |
| |
| 2519501 HARNESS AS-SWITCH |
| G3508, G3512, G3516 |
| |
| 2519409 HARNESS AS-ENGINE |
| G3508 |
| |
| 2519403 HARNESS AS-POWER |
| G3508 |
| |
| 2988840 HARNESS AS-POWER |
| G3508, G3508B, G3512, G3512B, G3516, G3516B |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
163-6795 |
[1] |
STRAP-CABLE |
|
| 2 |
6V-5738 BD |
|
TRIM-EDGE (1-M) |
|
| 3 |
283-3074 |
[1] |
SWITCH AS-TOGGLE (AEC AUTO/MANUAL) |
|
| 4 |
163-6711 |
[1] |
SWITCH AS-TOGGLE (BACK-UP THROTTLE) |
|
| 5 |
197-4279 |
[1] |
HARNESS AS-CONSOLE |
|
| |
3S-2093 |
[13] |
STRAP-CABLE |
|
| |
7K-1181 |
[1] |
STRAP-CABLE |
|
| |
8C-5064 BE |
|
CONDUIT-FLEXIBLE (17.75-MM ID, SPLIT)(18-CM) |
|
| |
102-8801 |
[1] |
KIT-RECEPTACLE (12-PIN) |
|
| |
102-8802 |
[2] |
KIT-RECEPTACLE (2-PIN) |
|
| |
102-8804 |
[1] |
KIT-RECEPTACLE (4-PIN) |
|
| |
102-8805 |
[1] |
KIT-RECEPTACLE (6-PIN) |
|
| |
|
|
(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
155-2255 |
[1] |
KIT-CONNECTING PLUG (12-PIN) |
|
| |
155-2270 |
[1] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
155-2271 |
[1] |
KIT-CONNECTING PLUG (4-PIN) |
|
| |
155-2274 |
[2] |
KIT-CONNECTING PLUG (6-PIN) |
|
| |
|
|
(EACH CONNECTING PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
|
| 6 |
9G-7641 Y |
[1] |
SWITCH GP-START (ENGINE, KEY) |
|
| 7 |
163-6702 |
[1] |
PANEL AS |
|
| |
170-9324 |
|
LAMP AS-INDICATOR (24-VOLT, 3-WATT) |
|
| 8 |
185-9208 |
[1] |
KNOB AS (THROTTLE POSITION) |
|
| 9 |
106-0107 Y |
[1] |
SWITCH GP-ROTARY (THROTTLE POSITION) |
|
| 10 |
170-6828 |
[1] |
HARNESS AS-SWITCH (ENGINE START) |
|
| |
120-7724 |
[1] |
CONNECTOR |
|
| 11 |
119-5026 |
[4] |
SCREW-PAN HEAD (10-16X0.63-IN) |
|
| 12 |
3S-2093 |
[2] |
STRAP-CABLE |
|
| 13 |
7K-1181 |
[1] |
STRAP-CABLE |
|
| |
B |
|
USE AS REQUIRED |
|
| |
D |
|
ORDER BY THE METER |
|
| |
E |
|
ORDER BY THE CENTIMETER |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
