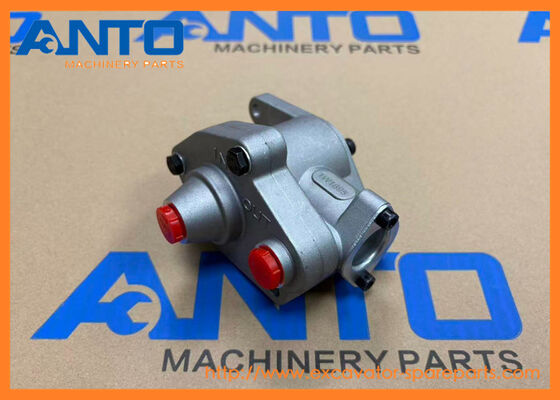

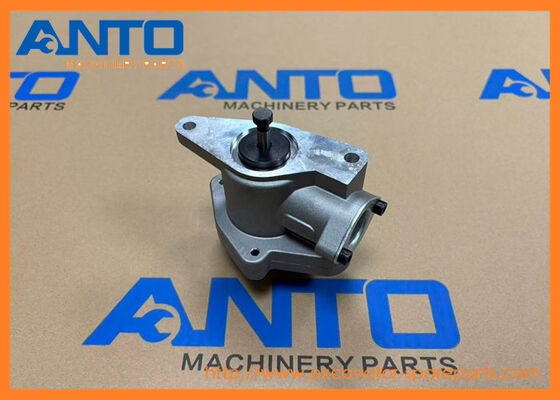

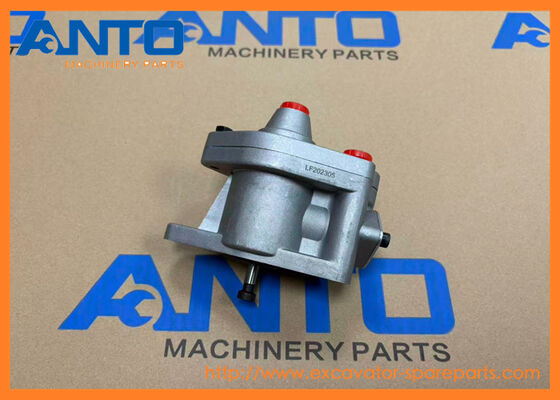

1W-1695 1w1695 Fuel Transfer Pump Excavator Spare Parts Fit For 3306 215D 219D 225D 229D

Large Image : 1W-1695 1w1695 Fuel Transfer Pump Excavator Spare Parts Fit For 3306 215D 219D 225D 229D

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	1W-1695 1w1695

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	37 USD / pcs
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Engine Number:	3412E C-15 C11 C13 C15 C18 C32 C7 C9	Part Number:	1W-1695 1w1695
Product Name:	Fuel Transfer Pump	Machine Number:	215B 215C 215D 219D 225D 229D 235B
Application:	Excavator	Lead Time:	1-3 Days For Delivery
Packing:	Standard Export Carton
Highlight:	Excavator fuel transfer pump , 3306 excavator spare parts , 215D 219D fuel pump

1W-1695 1w1695 Fuel Transfer Pump Excavator Spare Parts Fit For 3306 215D 219D 225D 229D

Specifiion

Category	Engine Parts；Fuel Filter
Name	Fuel Transfer Pump
Parts No	1W-1695
Machine Number	215B 215C 215D 219D 225 225D 229 229D 235 235B
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT
Packing	As request or standard packing

Key functions & working principle

Working Principle	1. Drive & Suction: The pump’s gear set is driven by the engine’s camshaft/accessory drive. As the gears rotate, the space between the gear teeth and pump housing expands on the inlet side, creating a vacuum that draws fuel from the tank through the inlet port and fuel filter.
	2. Fuel Transfer: Rotating gears trap fuel in the tooth spaces and carry it to the outlet side of the pump.
	3. Compression & Delivery: On the outlet side, the gear teeth mesh together, reducing the volume of the tooth spaces and forcing fuel out of the outlet port at a consistent pressure to the HPIP.
	4. Pressure Regulation: If system pressure exceeds the relief valve setting (2.5 bar), the valve opens, diverting excess fuel back to the fuel tank to maintain safe operating pressure.
	5. Self-Priming: The tight gear meshing and sealed housing allow the pump to create sufficient vacuum to pull fuel from the tank and purge air from the system without manual priming (unlike manual priming pumps).
Core Functions	1. Consistent Fuel Delivery: Supplies a steady flow of fuel to the HPIP at optimal pressure – critical for precise fuel injection and engine power output
	2. System Pressure Regulation: Built-in relief valve prevents overpressure, protecting fuel lines, filters, and the HPIP from damage
	3. Self-Priming: Eliminates the need for manual priming after maintenance/fuel depletion – reduces downtime in remote mining/construction sites
	4. Contaminant Protection: Works in tandem with CAT fuel filters (1R-0750) to ensure clean fuel reaches the HPIP – extends injector life

Compatible models

ARTICULATED TRUCK D250B D250E D250E II D25C D25D D300B D300D D300E D300E II D30C D350C D35C
CHALLENGER 65 65C 70C
ENGINE - MACHINE 3304
EXCAVATOR 215 215B 215C 215D 219D 225 225D 229 229D 235 235B 235C 235D 330 330 FM L 330 L 330B 330B L 350 E240 E300 E300B
FELLER BUNCHER FB518
GEN SET ENGINE 3304 3304B 3306 3306B
GENERATOR SET 3304B 3306B
INDUSTRIAL ENGINE 3304 3306 3306B
LANDFILL COMPACTOR 816B 816F
LOAD HAUL DUMP R1300 R1300G
MARINE ENGINE 3304 3304B 3306 3306B
MOTOR GRADER 120G 12G 12H 12H ES 12H NA 130G 140G 140H 140H ES 140H NA 143H 14G 14H NA 160G 160H 160H ES 160H NA 163H NA
PIPELAYER 571G 572G 572R
SOIL COMPACTOR 815B 815F
TRACK LOADER 963 973 973C
TRACK SKIDDER 517 527 D4HTSK III D5HTSK II
TRACK-TYPE TRACTOR D4E D4E SR D4H D4H XL D5B D5E D5H D5H XL D6D D6E D6E SR D6F SR D6G D6G SR D6G2 LGP D6G2 XL D6H D6H II D6H XL D6H XR D6R D7G D7G2 D7H D7R
TRUCK ENGINE 3306 3306B 3306C
VIBRATORY COMPACTOR CB-534 CS-643
WHEEL DOZER 814B 814F
WHEEL LOADER 930 930R 936 936F 950B 950B/950E 966C 966D 966F 966F II 966G 970F 972G G936
WHEEL SCRAPER 615C 621E 627B 627E 627G 637D 637E 637G 639D
WHEEL SKIDDER 515 518 518C 525 528 528B 530B 545
WHEEL TRACTOR 611 615 627B 627E 627F
WHEELED EXCAVATOR W330B C.ater.pillar.

More other pump applied to C A T heavey machine

0R1003 PUMP GP-WATER

D6H, D6H XL, D6H XR, D7G, D7H

1623905 PUMP AS-FUEL PRIMING

120H, 120H ES, 120H NA, 135H, 135H NA, 963B, 973, 973C

8N0490 PUMP ASSEM.

963, 973, 992C, D10, D9H

0R1000 PUMP GP-WATER

615C, 966F, 966F II, 972G

0R0997 PUMP GP-WATER

611, 615C

10R0482 PUMP GP-WATER

621F, 623E, 627F, 824G, 825G, 826G, 980C, 980F, 980G, D8N, D8R, D8R II

3E5470 PUMP AS-WASHER

120H ES, 120H NA, 12H ES, 12H NA, 130G, 135H NA, 140H, 140H ES, 140H NA, 143H, 14H NA, 160H ES, 160H NA, 163H NA, 16H NA, D7G

9T1802 PUMP GP-GEAR

120G, 14G, 16G

2223769 PUMP GP-METERING

120H, 120K, 120K 2, 12H, 12H NA, 12K, 135H, 140H, 140H NA, 140K, 140K 2, 143H, 160H, 160H NA, 160K, 163H

0R1005 PUMP GP-WATER

12H, 140G, 140H, 140H NA, 143H, 160H

0R1004 PUMP GP-WATER

140G, 143H, 160H

8J5846 PUMP GROUP

120G, 12G, 130G

7C1500 PUMP GP-FUEL INJECTION

205B, 213B, 214B, 224B, 3114, 3116, 446, 446B, AP-1000, AP-1050, CB-434, CP-563, CS-531, CS-533, CS-573, CS-583, E110B, E120B, E200B, E240C, EL240B

1727760 PUMP GP-WATER

330, 3304, 3304B, 3306, 3306B, 3306C, 330B L, 350, 517, 527, 545, 611, 615C, 966F, 966F II, CB-534, D4H, D4HTSK III, D6D, D6G2 XL, D6H, D7G, D7H, G3304B, G3306B, R1300, R1300G

9t9912 PUMP GP-PISTON

D6H, D6H XL, D6H XR, D6R

2466099 PUMP & MTG GP-PISTON

1664089 PUMP GP-GEAR

7S2983 PUMP GP-TMSN & SCAVENGE

627, 627B, 627E, 627F, 627G, 627H, 627K, 627K LRC, 637, 637B, 637D, 637E, 637G, 639D

5J8605 PUMP GP-VANE

977H, 977K

4P9392 PUMP GP-GOV & FUEL INJ

2053665 PUMP GP-GEAR

924G, 924GZ, 930G, IT28G

3461832 PUMP GP-DIAPHRAGM

216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 247, 247B, 247B3, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 267, 267B, 268B, 272C, 272D...

1991064 PUMP GP-PISTON

D3G, D4G, D5G

6E3136 PUMP GP-PISTON

120H, 120H ES, 120H NA, 120K, 120K 2, 12H, 12K, 135H, 135H NA, 140H, 140K, 140K 2, 160H, 160K

Directory listing

Pos.	Part No	Qty	Parts name	Comments
1	4F-7957	[1]	BOLT (1/4-20X0.875-IN)
2	1W-1695 Y	[1]	PUMP GP-FUEL TRANSFER
3	4B-9365	[1]	BOLT (1/4-20X3-IN)
4	4J-8997 C	[1]	SEAL-O-RING
5	5P-0537 C	[2]	WASHER-HARD (7.2X14.5X2-MM THK)
	C		CHANGE FROM PREVIOUS TYPE
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION

1W-1695 1w1695 Fuel Transfer Pump Excavator Spare Parts Fit For 3306 215D 219D 225D 229D 0

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
