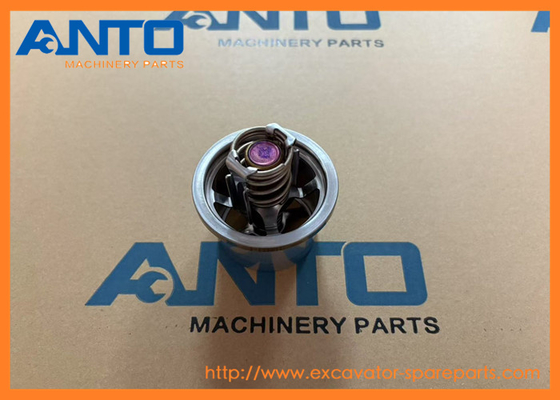

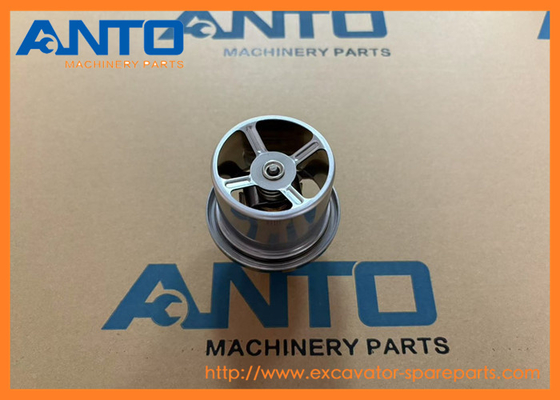

• 1-13770080-1 8-97674729-0 Thermostat ISUZU Excavator Spare Parts Fitting For 6WG1 6RB1 CXZ81K CYZ

• Specification

• Function and working principle

1.Function: The main function of the thermostat is to automatically regulate the flow of coolant according to the engine's temperature, so as to maintain the engine at an optimal operating temperature. It can control the flow path of the coolant, ensuring that the engine can quickly reach the normal operating temperature when it is cold - started and can be effectively cooled when it is running at high temperatures.

2.Working Principle: The ISUZU 1-13770080-1 thermostat is likely a wax - type thermostat. When the engine coolant temperature is lower than a certain value (usually around 70℃), the wax inside the thermostat is in a solid state, and the valve is closed. At this time, the coolant only circulates within the engine, which is called a small - cycle. This can quickly heat up the engine to the normal operating temperature. When the coolant temperature rises to a certain level (such as above 80℃), the wax expands due to heat, pushing the valve to open, and the coolant begins to flow through the thermostat and the radiator for large - cycle cooling, which can take away the excess heat of the engine and prevent it from overheating.

• Compatible models

670G LC 870G LC ZX670LC-5B ZX670LCH-5B ZX670LCR-5B ZX870-5B ZX870-5B-LD ZX870H-5B ZX870H-5B-LD ZX870LC-5B ZX870LCH-5B ZX870LCR-5B ZX870R-5B

• More other thermostat parts fit for ISUZU machine

• Catalog parts list

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
