| Application |
C A T excavator final drive |
| Name |

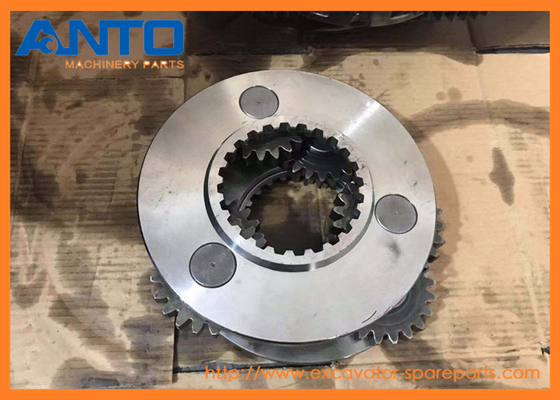

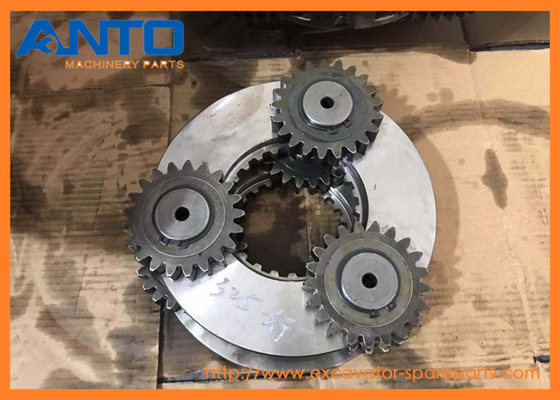

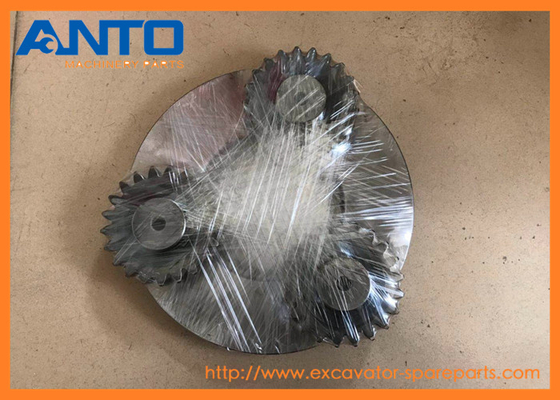

Carrier |
| Parts No |
1912686 191-2686 |
| Model |
320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
1.Supporting Planetary Gears: It provides positioning and support for the bearing assemblies of the planetary transmission. It fixes the planetary gears, ensuring they are correctly positioned relative to the sun gear and the ring gear, so as to enable the normal operation of the planetary gear mechanism.
2.Participating in Power Transmission: As an important part of the power - transmission system, it is connected with the planetary gears. It can receive the power transmitted by the planetary gears and output it to other components, thus completing the power transmission in the machine.
EXCAVATOR 320C 320C FM 320D 320D FM 320D FM RR 322C 323D LN 323D SA 323E L 325C 325C FM 325D 325D L 325D MH 329D 329D L 329D LN 329E 329E L 329E LN
MOBILE HYD POWER UNIT 325D 329D L
UNDERCARRIAGE OEMS
- More carrier parts supplied to C A T machine
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| |
| 1912578 CARRIER-PLANETARY |
| 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320... |
| |
| 1484637 CARRIER-PLANETARY |
| 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320... |
| |
| 7I7728 CARRIER-PLANETARY |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 322 FM L, 322B L, 322B LN, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 324E, 324E L, 324E LN, 325B, 325B L, 325C, 325C FM, ... |
| |
| 1912571 CARRIER-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32... |
| |
| 1912678 CARRIER AS |
| 322C, 322C FM, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 326D L |
| |
| 2676799 CARRIER-PLANETARY |
| 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS |
| |
| 7Y0731 CARRIER AS |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0645 CARRIER |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
3E-2338 |
[2] |
PLUG-PIPE |
|
| 2 |
267-6863 BJ |
[1] |
SHIM (0.75-MM THK) |
|
| |
7Y-0752 BJ |
[1] |
SHIM (0.8-MM THK) |
|
| |
267-6864 BJ |
[1] |
SHIM (0.85-MM THK) |
|
| |
267-6865 BJ |
[1] |
SHIM (0.9-MM THK) |
|
| |
267-6866 BJ |
[1] |
SHIM (0.95-MM THK) |
|
| |
7Y-0753 BJ |
[1] |
SHIM (1-MM THK) |
|
| |
267-6867 BJ |
[1] |
SHIM (1.2-MM THK) |
|
| |
267-6868 BJ |
[1] |
SHIM (1.4-MM THK) |
|
| |
7Y-0754 BJ |
[1] |
SHIM (1.6-MM THK) |
|
| |
267-6869 BJ |
[1] |
SHIM (1.8-MM THK) |
|
| |
267-6870 BJ |
[1] |
SHIM (2-MM THK) |
|
| |
267-6871 BJ |
[1] |
SHIM (2.3-MM THK) |
|
| 5 |
094-0578 B |
[1] |
PLATE (8-MM THK) |
|
| |
094-0579 B |
[1] |
PLATE (9-MM THK) |
|
| |
094-0580 B |
[1] |
PLATE (10-MM THK) |
|
| 8 |
094-1528 |
[12] |
WASHER (53X84X1-MM THK) |
|
| 9 |
114-1540 J |
[4] |
PIN-DOWEL |
|
| 10 |
168-8452 J |
[2] |
BALL BEARING |
|
| 11 |
169-5589 |
[1] |
GEAR-SUN (24-TEETH) |
|
| 12 |
169-5590 |
[1] |
GEAR-SUN (24-TEETH) |
|
| 13 |
169-5592 |
[3] |
GEAR-PLANETARY (23-TEETH) |
|
| 14 |
169-5593 |
[3] |
GEAR-PLANETARY (23-TEETH) |
|
| 15 |
169-5601 |
[3] |
SHAFT-PLANETARY |
|
| 16 |
169-5602 |
[3] |
SHAFT-PLANETARY |
|
| 17 |
171-9387 |
[1] |
GEAR-RING (64-TEETH) |
|
| 18 |
191-2569 |
[3] |
BEARING AS (CAGED ROLLER) |
|
| 19 |
191-2570 |
[6] |
BEARING AS (CAGED ROLLER) |
|
| 20 |
191-2571 |
[1] |
CARRIER-PLANETARY |
|
| 21 |
191-2676 |
[1] |
GEAR-RING (72-TEETH) |
|
| 22 |
191-2683 |
[1] |
GEAR-SUN (20-TEETH) |
|
| 23 |
191-2684 |
[3] |
GEAR-PLANETARY (21-TEETH) |
|
| 24 |
191-2685 |
[3] |
BEARING AS |
|
| 25 |
191-2686 |
[1] |
CARRIER AS |
|
| |
191-2687 |
[3] |
RACE-BEARING |
|
| 26 |
191-2689 |
[3] |
WASHER (34X70X1-MM THK) |
|
| 27 |
191-2690 |
[3] |
WASHER (42.3X70X1-MM THK) |
|
| 28 |
199-4503 |
[1] |
COVER |
|
| 29 |
207-1571 J |
[1] |
SEAL GP-DUO-CONE |
|
| |
214-3570 |
[2] |
RING-TORIC |
|
| 30 |
267-6797 J |
[1] |
HOUSING-MOTOR |
|
| 31 |
267-6798 J |
[1] |
HOUSING |
|
| 32 |
267-6799 |
[1] |
CARRIER-PLANETARY |
|
| 33 |
267-6800 J |
[1] |
GEAR-COUPLING |
|
| 43 |
093-1731 |
[2] |
RING-RETAINING |
|
| 44 |
095-0891 |
[6] |
PIN-SPRING |
|
| 45 |
096-0433 |
[3] |
RING-RETAINING |
|
| 46 |
096-3216 M |
[2] |
SETSCREW-SOCKET (M12X1.75X12-MM) |
|
| 47 |
171-9298 |
[1] |
SEAL-O-RING |
|
| 48 |
179-8733 M |
[16] |
BOLT (M20X2.5X170-MM) |
|
| 49 |
7M-8485 |
[2] |
SEAL-O-RING |
|
| 50 |
7Y-0595 |
[3] |
SPACER (58X79.6X6-MM THK) |
|
| 51 |
7Y-5217 JM |
[16] |
BOLT-SOCKET HEAD (M20X2.5X70-MM) |
|
| 52 |
8T-3282 J |
[16] |
WASHER-HARD (22X35X3.5-MM THK) |
|
| 53 |
8T-4123 |
[16] |
WASHER (22X35X3.5-MM THK) |
|
| 54 |
9X-6032 M |
[12] |
BOLT-SOCKET HEAD (M10X1.5X30-MM) |
|
| 55 |
1U-8846 B |
|
SEALANT-GASKET |
|
| |
|
|
|
| |
|
|
AVAILABLE REPAIR KIT(S): |
| |
267-6818 J |
[1] |
KIT-FINAL DRIVE BEARING |
|
| |
B |
|
USE AS REQUIRED |
| |
J |
|
KIT MARKED J SERVICES PART(S) MARKED J |
| |
M |
|
METRIC PART |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
