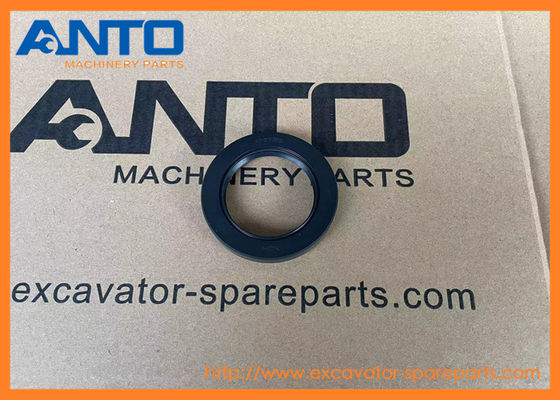

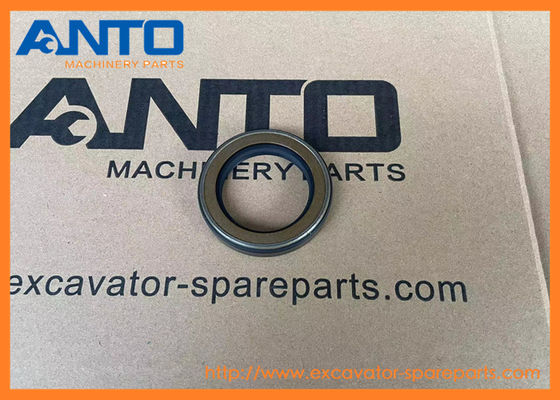

XKAQ00212 XKAQ-0212 Motor Ring Excavator Final Drive For HYUNDAI R250LC7 R250LC7A

Large Image : XKAQ00212 XKAQ-0212 Motor Ring Excavator Final Drive For HYUNDAI R250LC7 R250LC7A

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	XKAQ00212 XKAQ-0212

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD 11/PCS
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	HYUNDAI Excavator Final Drive	Parts Name:	Motor Ring
PAH01054 XKAH-01054arts Number:	XKAQ00212 XKAQ-0212	Models:	R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7
Lead Time:	Stock For Soon Delivery	Warranty:	6/12 Months
Highlight:	XKAQ00212 Motor Ring Excavator , Excavator Final Drive for HYUNDAI , R250LC7 Excavator Final Drive

XKAQ00212 XKAQ-0212 Motor Ring Excavator Final Drive For HYUNDAI R250LC7 R250LC7A

Specification

spare parts name	Motor ring
Equipment Model	R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7
Parts Category	HYUNDAI Excavator Final Drive
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Function

1.Prevent oil leakage: Oil seals are usually installed at the joints of the rotating shaft or other moving parts of the excavator. They can separate the parts that need lubrication from the outside world, prevent lubricating oil or hydraulic oil from leaking from these parts, avoid oil waste, and ensure the normal operation of the lubrication system and hydraulic system.

2.Maintain system pressure: In the hydraulic system of the excavator, oil seals help maintain the pressure in the system. Hydraulic oil drives each component to work under pressure. The oil seal prevents hydraulic oil leakage by forming a tight seal, so that the hydraulic system can maintain sufficient pressure to ensure the excavation force of the excavator and the normal operation of each action.

Compatible models

7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7

9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH

More other carrier parts applicable for HYUNDAI machine

XKAQ-00485 CARRIER-NO.2

R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAQ-00495 CARRIER ASSY-NO.1

R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S

XKAQ-00787 CARRIER-NO.1

R250LC7, R250LC7A

39Q8-42190 CARRIER 2

HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42270 CARRIER 1

HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42180 CARRIER ASST KIT 1

HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

39Q8-42260 CARRIER ASST KIT 2

HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7

XKAQ-00965 CARRIER 3 ASSY

R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH

XKAQ-00966 CARRIER 3

R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
*-2.	31N8-40070	[1]	T/REDUCTION GEAR
*-2.	31N8-40071	[1]	T/REDUCTION GEAR
*-2.	31N8-40071BG	[1]	T/REDUCTION GEAR
*-2.	31N8-40072	[1]	T/REDUCTION GEAR
*-2.	31N8-40073	[1]	T/REDUCTION GEAR
*-2.	31N8-40074	[1]	T/REDUCTION GEAR
2	XKAQ-00173	[1]	SEAL-FLOATING
2	XKAQ-00803	[1]	SEAL-FLOATING
3	XKAQ-00174	[1]	HOUSING
3	XKAQ-00802	[1]	HOUSING
4	XKAQ-00175	[2]	BEARING-ANGULAR
4	XKAQ-00175-AS	[2]	BEARING-ANGULAR	FOR AS ONLY
5	XKAQ-00176	[1]	SHIM	STD
5	XKAQ-00992	[1]	SHIM	0.5T
5	XKAQ-00993	[1]	SHIM	0.9T
5	XKAQ-00994	[1]	SHIM	1.0T
5	XKAQ-00995	[1]	SHIM	1.2T
6	XKAQ-00177	[1]	RETAINER
7	XKAQ-00178	[17]	BOLT-WRENCH
8	XKAQ-00179	[1]	CARRIER ASSY-NO.3
8	XKAQ-00398	[1]	CARRIER 3 ASSY
8	XKAQ-00965	[1]	CARRIER 3 ASSY
8-1.	XKAQ-00180	[1]	CARRIER-NO.3
8-1.	XKAQ-00396	[1]	CARRIER 3
8-1.	XKAQ-00966	[1]	CARRIER 3
8-2.	XKAQ-00181	[4]	GEAR-PLANETARY NO.3
8-2.	XKAQ-00389	[4]	GEAR 3-PLANETARY
8-3.	XKAQ-00182	[72]	NEEDLE-NO.3
8-3.	XKAQ-00390	[72]	NEEDLE 3
8-4.	XKAQ-00183	[8]	WASHER-THRUST NO.3
8-4.	XKAQ-00391	[8]	WASHER 3-THRUST
8-5.	XKAQ-00184	[4]	PIN 3
8-6.	XKAQ-00185	[4]	PIN 3-SPRING
8-6.	XKAQ-00967	[4]	PIN 3-SPRING
8-7.	XKAQ-00186	[1]	GEAR 3-SUN
8-8.	XKAQ-00187	[1]	RING 3-SNAP
8-9.	XKAQ-00651	[4]	PIN 3-SPRING
8-9.	XKAQ-00968	[4]	PIN 3-SPRING
9	XKAQ-00188	[1]	CARRIER ASSY-NO.2
9	XKAQ-00399	[1]	CARRIER ASSY 2
9	XKAQ-00969	[1]	NO2 CARRIER ASS'Y
9-1.	XKAQ-00189	[1]	CARRIER-NO.2
9-1.	XKAQ-00397	[1]	CARRIER 2
9-1.	XKAQ-00970	[1]	NO2 CARRIER
9-2.	XKAQ-00190	[3]	GEAR-PLANETARY NO.2
9-2.	XKAQ-00392	[3]	GEAR 2-PLANETERY
9-3.	XKAQ-00191	[45]	NEEDLE-NO.2
9-3.	XKAQ-00393	[45]	NEEDLE 2
9-4.	XKAQ-00192	[6]	WASHER-THRUST NO.2
9-4.	XKAQ-00394	[6]	WASHER 2-THRUST
9-5.	XKAQ-00193	[3]	PIN 2
9-6.	XKAQ-00194	[6]	PIN 2-SPRING
9-6.	XKAQ-00971	[6]	PIN 2-SPRING
9-7.	XKAQ-00195	[1]	GEAR 2-SUN
9-8.	XKAQ-00196	[1]	RING 2-SNAP
9-9.	XKAQ-00650	[6]	PIN 2-SRPING
10	XKAQ-00197	[1]	CARRIER ASSY-NO.1
10	XKAQ-00400	[1]	CARRIER 1 ASSY
10-1.	XKAQ-00198	[1]	CARRIER 1
10-2.	XKAQ-00199	[3]	GEAR 1-PLANETARY
10-3.	XKAQ-00200	[3]	BEARING-NEEDLE
10-4.	XKAQ-00201	[6]	WASHER-THRUST NO.1
10-4.	XKAQ-00395	[6]	WASHER 1-THRUST
10-5.	XKAQ-00202	[3]	PIN 1
11	XKAQ-00203	[1]	GEAR 1-SUN
12	XKAQ-00204	[3]	PLUG
13	XKAQ-00205	[4]	PIN-LOCK
14	XKAQ-00206	[1]	GEAR-RING
14	XKAQ-00762	[1]	GEAR-RING
15	XKAQ-00207	[24]	BOLT-WRENCH
16	XKAQ-00208	[1]	RING-THRUST
17	XKAQ-00209	[1]	COVER
17	XKAQ-00973	[1]	COVER
18	XKAQ-00210	[AR]	RING 2-THRUST
19	XKAQ-00211	[16]	BOLT-WRENCH
20	XKAQ-00212	[1]	MOTOR-RING
21	XKAQ-00213	[1]	RING 3-THRUST
22	XKAQ-00214	[1]	PAD
23	XKAQ-00215	[1]	COUPLING
24	XKAQ-00216	[1]	NAME PLATE
N.	@	[1]	NOT SUPPLIED PARTS

XKAQ00212 XKAQ-0212 Motor Ring Excavator Final Drive For HYUNDAI R250LC7 R250LC7A 0

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
