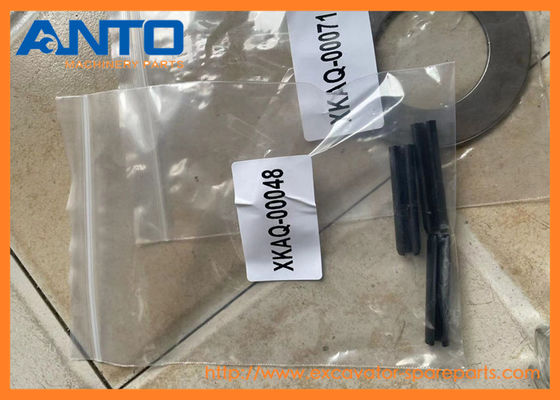

- XKAQ00048 XKAQ-00048 Spring Pin Excavator Swing Motor For HYUNDAI R170W7 R170W7A R200W7
| spare parts name |
Spring pin |
| Equipment Model |
R170W7 R170W7A R200W7 R200W7A |
| Parts Category |
HYUNDAI Excavator Swing Motor |
| Spare parts Condition |
Brand new, OEM quality |
| MOQ of order(PCS, SET) |
1 PCS |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
1.ibration and Impact Absorption: Made of elastic materials such as spring steel, it can produce elastic deformation when the equipment is subjected to vibration or impact.
2.Compensation for Size Deviation: It can compensate for a certain amount of pin - hole size differences. During the manufacturing and assembly process of mechanical parts, there may be some dimensional tolerances.
3.Easy Assembly and Disassembly: Compared with connection methods such as bolts and nuts, the spring pin has a simple structure, and it can be directly pressed into the hole during installation without the need for complex operations such as screwing, which can significantly improve the assembly efficiency.
7 SERIES WHEEL EXCAVATOR R170W7 R170W7A R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7 RD510LC-7
- More other pin parts applicable for HYUNDAI machine
| 3904483 PIN-DOWEL |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 35D-9, 42HDLL, 50D-9, 80D-9, H70, H80, HDF35A-2, HDF50A, HL25C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7... |
| |
| 3950549 PIN-PISTON |
| 180DE, 250D-9, 250DE, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R320LC7A, R320LC9, R330LC9A, R360LC7A, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R430LC9, R430LC9A |
| |
| S491-060252 PIN-CLEVIS |
| 35D-9, 35D-9A, 35D-9K, 35D-9S, 60L-7A, DX20, HC25E, HC50E, HDF50-3, HDF80-3, R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210NLC7, R250LC7, R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z... |
| |
| 4083244 PIN-PISTON |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| |
| XKDA-00480 PIN |
| R520LC9S |
| |
| XKDA-00481 PIN |
| R520LC9S |
| |
| XKDA-00490 PIN |
| R520LC9S |
| |
| XKDA-00572 PIN |
| R520LC9S |
| |
| XKDA-00573 PIN |
| R520LC9S |
| |
| XKDA-00574 PIN |
| R520LC9S |
| |
| XKDA-00575 PIN |
| R520LC9S |
| |
| 61QD-00030 PIN WA |
| R800LC-9 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31QA-10151 |
[1] |
SWING MOTOR ASSY |
SEE 4100 |
| *-2. |
31QA-10141 |
[1] |
SWING REDUCTION GEAR |
|
| 1 |
XKAQ-00738 |
[1] |
CASING |
|
| 2 |
XKAQ-00739 |
[1] |
SHAFT-DRIVE |
|
| 3 |
XKAQ-00146 |
[1] |
BEARING-ROLLER |
|
| 4 |
XKAQ-00171 |
[1] |
RING-SPACER |
|
| 5 |
XKAQ-00149 |
[1] |
SEAL-OIL |
|
| 6 |
XKAQ-00027 |
[1] |
BEARING-ROLLER |
|
| 7 |
XKAQ-00264 |
[1] |
CARRIER ASSY-NO 2 |
|
| 8 |
XKAQ-00740 |
[1] |
CARRIER 2 |
|
| 9 |
XKAQ-00741 |
[4] |
GEAR-PLANETARY 2 |
|
| 10 |
XKAQ-00742 |
[4] |
PIN ASSY 2 |
|
| 11 |
XKAQ-00254 |
[1] |
PIN 2 |
|
| N12. |
XKAQ-00255 |
[1] |
BUSHING 2 |
|
| 13 |
XKAQ-00165 |
[1] |
PIN-SPRING |
|
| 14 |
XKAQ-00156 |
[4] |
WASHER-THRUST |
|
| 15 |
XKAQ-00050 |
[4] |
PIN-SPRING |
|
| 16 |
XKAQ-00412 |
[1] |
CARRIER ASSY 1 |
|
| 17 |
XKAQ-00743 |
[1] |
CARRIER 1 |
|
| 18 |
XKAQ-00414 |
[4] |
GEAR-PLANETARY 1 |
|
| 19 |
XKAQ-00744 |
[4] |
PIN 1 |
|
| 20 |
XKAQ-00030 |
[4] |
CAGE-NEEDLE |
|
| 21 |
XKAQ-00417 |
[4] |
PLATE 1-SIDE |
|
| 22 |
XKAQ-00416 |
[4] |
PLATE 2-SIDE |
|
| 23 |
XKAQ-00041 |
[4] |
RING-STOP |
|
| 24 |
XKAQ-00048 |
[1] |
PIN-SPRING |
|
| 25 |
XKAQ-00422 |
[1] |
RING-THRUST |
|
| 26 |
XKAQ-00745 |
[1] |
GEAR-SUN 2 |
|
| 27 |
XKAQ-00746 |
[1] |
GEAR-SUN 1 |
|
| 28 |
XKAQ-00420 |
[1] |
GEAR-RING |
|
| 29 |
XKAQ-00072 |
[2] |
PIN-KNOCK |
|
| 30 |
XKAQ-00747 |
[1] |
PLATE-COVER |
|
| 31 |
XKAQ-00148 |
[8] |
BOLT-HEX |
|
| 32 |
XKAQ-00775 |
[1] |
SPACER |
|
| 33 |
XKAQ-00749 |
[1] |
GEAR-PINION |
|
| 34 |
XKAQ-00299 |
[1] |
PLATE-LOCK |
|
| 35 |
XKAQ-00042 |
[4] |
BOLT-HEX |
|
| 36 |
XKAQ-00292 |
[2] |
WASHER-LOCK |
|
| 37 |
XKAQ-00274 |
[2] |
PLUG |
|
| 38 |
XKAQ-00049 |
[1] |
PLUG |
|
| 39 |
XKAQ-00259 |
[16] |
BOLT-SOCKET |
|
| 40 |
XKAQ-00750 |
[1] |
COVER |
|
| 41 |
XKAQ-00751 |
[1] |
O-RING |
|
| 42 |
XKAQ-00170 |
[4] |
BOLT-SOCKET |
|
| 43 |
XKAQ-00066 |
[1] |
PLUG |
|
| 45 |
XKAQ-00798 |
[1] |
AIR BREATHER ASSY |
|
| 45-1. |
XKAQ-00797 |
[1] |
CAP-ARI BREATHER |
|
| 45-2. |
XKAQ-00143 |
[1] |
POST-AIR BREATHER |
|
| 46 |
XKAQ-00167 |
[1] |
PIPE-GAUGE |
|
| 47 |
XKAQ-00166 |
[1] |
BAR-GAUGE |
|
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
