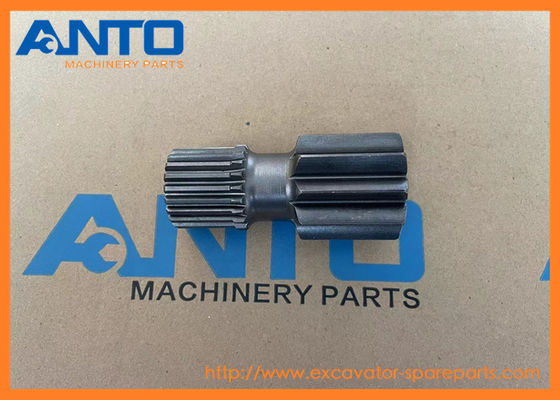

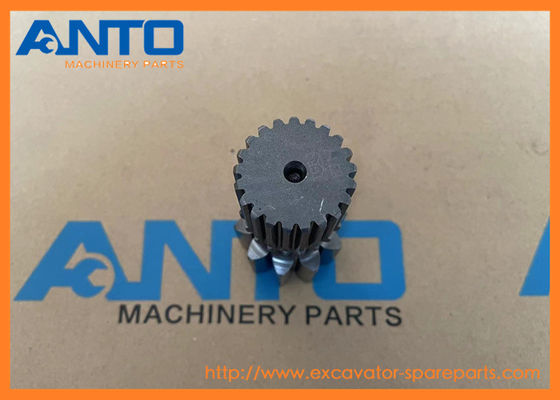

- XKAQ-00402 XKAQ00402 Sun Gear 1 Excavator Final Drive For HYUNDAI R210LC9 R210LC9BC
| spare parts name |
Sun gear 1 |
| Equipment Model |
R210LC9 R210LC9BC R210LC9BH R210NLC9 R235LCR9 |
| Parts Category |
HYUNDAI Excavator Final Drive |
| Spare parts Condition |
Brand new, OEM quality |
| MOQ of order(PCS, SET) |
1 PCS |
| Parts Availability |
In stock |
| Delivery Lead time |
1-3 days |
1.Power input and transmission:
It is the starting point for power transmission, receiving the high - speed and low - torque power output from the motor and transmitting it to other components of the planetary gear system.
2.Torque conversion:
Through meshing with planetary gears, it drives the planetary gears to rotate around their own axes and revolve around the sun gear. excavator to obtain sufficient driving force and traction force.
3.Speed regulation cooperation:
Works in conjunction with the ring gear and planet carrier in the planetary gear mechanism.
4.Ensuring stable operation:
Made of high - quality materials and processed by heat treatment such as case carburizing, it has high strength and wear - resistance. It can stably transmit power during long - term operation, ensuring the normal operation of the excavator's traveling system and reducing the occurrence of failures.
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 RC215C7 RC215C7H RD210-7 RD220-7
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R235LCR9
- More other gear parts applicable for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| |
| 4893389 GEAR-FUEL PUMP |
| R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A |
| |
| XKBH-01834 GEAR-IDLER 2 |
| R210LC7H, R210LC9BH |
| |
| XKBH-01847 GEAR-IDLER 2 |
| R210LC7H, R210LC9BH |
| |
| XKBH-01929 GEAR & CASE ASSY |
| R210LC7H, R210LC9BH |
| |
| XKBH-01932 GEAR-OIL PUMP DRIV |
| R210LC7H, R210LC9BH |
| |
| XKBH-02183 GEAR SET |
| R210LC7H, R210LC9BH |
| |
| XKBH-02185 GEAR |
| R210LC7H, R210LC9BH |
| |
| XKDE-01126 GEAR-FUEL PUMP |
| R210W9S, R260LC9S, RD220-7, RD220LC9 |
| |
| 5284293 GEAR-FUEL PUMP |
| R215LC7, RD210-7 |
| |
| 3978313 GEAR-FLYWHEEL RING |
| R215LC7, RD210-7 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
TRAVEL MOTOR ASSY |
SEE 4139D |
| *-2. |
31N6-40041BG |
[1] |
T/REDUCTION GEAR |
|
| *-2. |
31N6-40042BG |
[1] |
T/REDUCTION GEAR |
|
| 1 |
XKAQ-00217 |
[1] |
HOUSING |
|
| 2 |
XKAQ-00218 |
[2] |
BEARING-MAIN |
|
| 2 |
XKAQ-00986 |
[2] |
BEARING-MAIN |
|
| 3 |
XKAQ-00219 |
[1] |
SEAL-FLOATING |
|
| 4 |
XKAQ-00220 |
[1] |
SHIM |
|
| 5 |
XKAQ-00221 |
[1] |
RETAINER |
|
| 6 |
XKAQ-00222 |
[12] |
BOLT-HEX |
|
| 7 |
XKAQ-00223 |
[2] |
PIN-PARALLEL |
|
| 8 |
XKAQ-00224 |
[1] |
GEAR-RING |
|
| 9 |
XKAQ-00225 |
[1] |
COUPLING |
|
| 10 |
XKAQ-00226 |
[1] |
CARRIER 2 ASSY |
|
| 10-1. |
XKAQ-00227 |
[1] |
CARRIER 2 |
|
| 10-2. |
XKAQ-00228 |
[4] |
GEAR-PLANET 2 |
|
| 10-3. |
XKAQ-00229 |
[8] |
BEARING-NEEDLE 2 |
|
| 10-4. |
XKAQ-00230 |
[8] |
WASHER-THRUST |
|
| 10-5. |
XKAQ-00231 |
[4] |
PIN 2 |
|
| 10-6. |
XKAQ-00232 |
[4] |
PIN-SPRING |
|
| 10-7. |
XKAQ-00208 |
[2] |
RING-THRUST |
|
| 11 |
XKAQ-00233 |
[1] |
CARRIER ASSY 1 |
|
| 11 |
XKAQ-00653 |
[1] |
CARRIER ASSY 1 |
|
| 11-1. |
XKAQ-00234 |
[1] |
CARRIER 1 |
|
| 11-2. |
XKAQ-00235 |
[1] |
GEAR-SUN 2 |
|
| 11-3. |
XKAQ-00236 |
[1] |
RING-RETAINING |
|
| 11-4. |
XKAQ-00237 |
[3] |
GEAR-PLANET 1 |
|
| 11-5. |
XKAQ-00238 |
[3] |
BEARNG-NEEDLE 1 |
|
| 11-6. |
XKAQ-00239 |
[6] |
WASHER-THRUST |
|
| 11-6. |
XKAQ-00657 |
[6] |
WASHER-THRUST |
|
| 11-7. |
XKAQ-00240 |
[3] |
PIN 1 |
|
| 11-8. |
XKAQ-00241 |
[3] |
PIN-SPRING |
|
| 11-9. |
XKAQ-00655 |
[3] |
PIN-SPRING |
|
| 12 |
XKAQ-00402 |
[1] |
GEAR-SUN 1 |
|
| 13 |
XKAQ-00243 |
[1] |
COVER |
|
| 14 |
XKAQ-00214 |
[1] |
PAD |
|
| 15 |
XKAQ-00244 |
[20] |
BOLT-SOCKET |
|
| 16 |
XKAQ-00245 |
[2] |
SCREW-HEX SOCKET |
|
| 17 |
XKAQ-00246 |
[3] |
PLUG-HYDRAULIC |
|
| 18 |
XKAQ-00247 |
[3] |
O-RING |
|
| 19 |
XKAQ-00248 |
[1] |
NAME PLATE |
|
| K. |
XKAY-00518 |
[1] |
SEAL KIT |
SEE ILLUST |
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts catalog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
