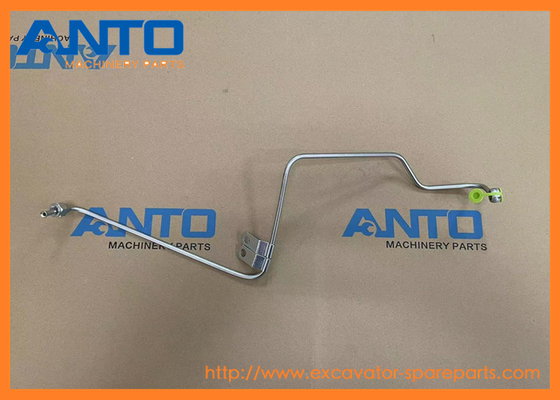

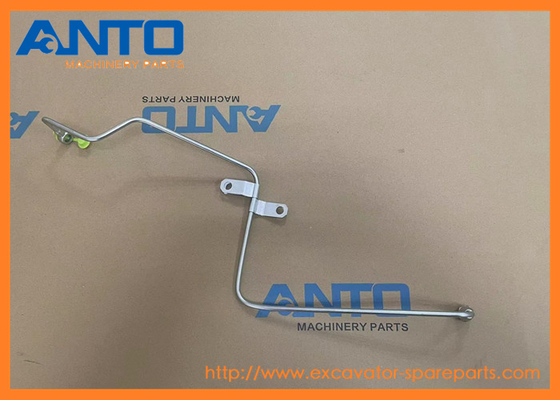

XJAF02352 XJAF-02352 Oil Pipe Excavator Engine Parts For HYUNDAI R140W7A R170W7A

Large Image : XJAF02352 XJAF-02352 Oil Pipe Excavator Engine Parts For HYUNDAI R140W7A R170W7A

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	XJAF02352 XJAF-02352

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	USD 15/PCS
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	HYUNDAI Excavator Engine Parts	Parts Name:	Oil Pipe
Parts Number:	XJAF02352 XJAF-02352	Models:	R140W7A R170W7A
Lead Time:	Stock For Soon Delivery	Warranty:	6/12 Months
Highlight:	R170W7A Oil Pipe , R140W7A Oil Pipe , HYUNDAI R140W7A Oil Pipe

XJAF02352 XJAF-02352 Oil Pipe Excavator Engine Parts Fitting For HYUNDAI R140W7A R170W7A

Specification

spare parts name	Oil pipe
Equipment Model	R140W7A R170W7A
Parts Category	HYUNDAI Excavator Engine Parts
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

What It Is & Its Role

1.Function: Transfers engine oil to lubricate the turbocharger, ensuring proper lubrication and cooling of the bearing journal.

2.Critical Importance: A blocked, cracked, or leaking line can lead to turbo failure or oil starvation, which can rapidly damage the turbocharger.

Compatible models

7 SERIES WHEEL EXCAVATOR R140W7A R170W7A

7-SERIES CRAWLER EXCAVATOR R110-7A R140LC-7A R160LC7A R180LC7A

9-SERIES CRAWLER EXCAVATOR R140LC9 R145CR9 R160LC9 R180LC9

More other pipe parts applicable for HYUNDAI machine

31N3-50250 PIPE ASSY

R110-7, R110-7A, RD110-7

31N3-92310 PIPE ASSY

R110-7, R110-7A, RD110-7

XJAF-02258 PIPE-OIL

R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9

31N4-51151 PIPE ASSY

R140LC-7, R140LC-7A, R140W7, R140W7A

31N4-52990 PIPE ASSY

R140LC-7, R140LC-7A, R140W7, R140W7A

31N4-92190 PIPE ASSY

R140LC-7, R140LC-7A

31Y1-21160 PIPE ASSY-R,LH

R140LC-7, R140LC-7A, R140W7, R140W7A

31Q4-12130 PIPE ASSY

HX180L, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, RB140LC9S, RB160LC9S

31Q4-53080 PIPE ASSY

R140LC9, R140LC9S, R140W9, R140W9S

31Q4-91310 PIPE ASSY

HW140, HX140L, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, RB140LC9S

31Y1-31660 PIPE ASSY-R

R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9

31Q4-93721 PIPE ASSY

R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A

XJAF-02258 PIPE-OIL

R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9

31N3-12350 PIPE ASSY

R110-7A

31N3-13010 PIPE ASSY-SUCTION

R110-7A, RD110-7

11N4-45130 PIPE-CHARGE AIR

R110-7A, R140LC-7A, R140W7A

11N4-45120 PIPE-CHARGE AIR

R110-7A, R140LC-7A, R140W7A

11N3-21100 PIPE WA-A/C HOSE

R110-7A

XJAF-00456 PIPE-OIL

R110-7

XJAF-00455 PIPE-OIL

R110-7

XJAF-00451 PIPE-FUEL RETURN

R110-7

XJAF-00432 PIPE-INJ NO.4

R110-7

XJAF-00431 PIPE-INJ NO.3

R110-7

XJAF-00430 PIPE-INJ NO.2

R110-7

XJAF-02353 PIPE-OIL DRAIN

R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9

XJAF-02371 PIPE-DRAIN

R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9

XJAF-02389 PIPE-BREATHER

R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9

XJAF-02402 PIPE-PUMP

R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
1	XJAF-02352	[1]	PIPE-OIL
2	XJAF-02353	[1]	PIPE-OIL DRAIN
3	XJAF-02354	[1]	GASKET-OIL PIPE
4	XJAF-02355	[2]	BOLT-W/WASHER
5	XJAF-00371	[2]	GASKET
6	XJAF-00372	[1]	BOLT-EYE
7	XJAF-00376	[1]	CONNECTOR
8	XJAF-02568	[1]	GASKET-DRAIN PIPE
9	XJAF-02313	[2]	BOLT-W/WASHER

XJAF02352 XJAF-02352 Oil Pipe Excavator Engine Parts For HYUNDAI R140W7A R170W7A 0

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
