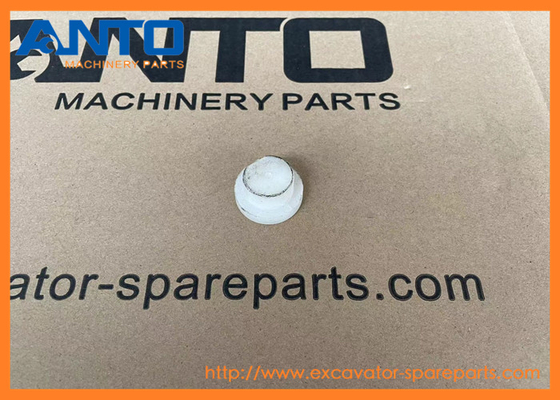

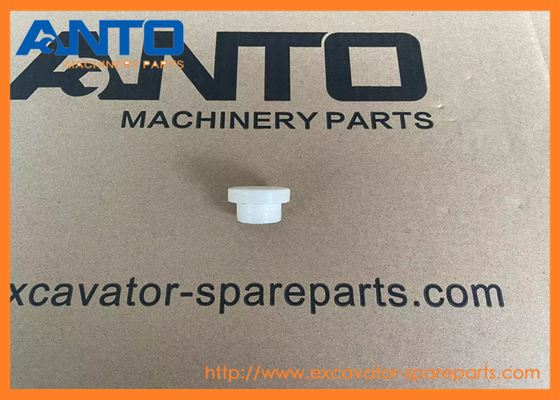

XKAQ00214 XKAQ-00214 Pad Excavator Final Drive For HYUNDAI R110-7 R110-7A R140LC-7

XKAQ00214 XKAQ-00214 Pad Excavator Final Drive For HYUNDAI R110-7 R110-7A R140LC-7
XKAQ00214 XKAQ-00214 Pad Excavator Final Drive For HYUNDAI R110-7 R110-7A R140LC-7 XKAQ00214 XKAQ-00214 Pad Excavator Final Drive For HYUNDAI R110-7 R110-7A R140LC-7

Large Image :  XKAQ00214 XKAQ-00214 Pad Excavator Final Drive For HYUNDAI R110-7 R110-7A R140LC-7

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: XKAQ00214 XKAQ-00214
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD 8/PCS
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100-2000
Contact Now
Detailed Product Description
Category: HYUNDAI Excavator Final Drive Parts Name: Pad
Parts Number: XKAQ00214 XKAQ-00214 Models: R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7
Lead Time: Stock For Soon Delivery Warranty: 6/12 Months
Highlight:

R140LC-7 Pad Excavator Final Drive

,

XKAQ00214 Pad Excavator Final Drive

  • XKAQ00214 XKAQ-00214 Pad Excavator Final Drive For HYUNDAI R110-7 R110-7A R140LC-7







  • Specification
spare parts name Pad
Equipment Model R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7
Parts Category HYUNDAI Excavator Final Drive
Spare parts Condition Brand new, OEM quality
MOQ of order(PCS, SET) 1 PCS
Parts Availability In stock
Delivery Lead time 1-3 days







  • Function

1.​Cushions gear engagement: Absorbs vibration and shock during travel motor operation.



2.Protects components: Reduces wear by dampening metal-to-metal contact between gear and carrier assembly.


3.Maintains proper spacing and alignment within the gearbox, ensuring smoother operation and longevity.







  • Compatible models

7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7







  • More other pad parts applicable for HYUNDAI machine
71K8-01650 PAD-RUBBER
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-01640 PAD-RUBBER
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-02960 PAD
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-02360 PAD
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-02370 PAD
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-03170 PAD
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-02150 PAD
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-10120 PAD-RUBBER
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-10130 PAD-RUBBER
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-10150 PAD-RUBBER
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-10220 PAD-SEALING
HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L

71K8-04380 PAD-RUBBER
HW210, HX140L, HX160L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L







  • Parts list diagram
Pos. Part No Qty Parts name Comments
*. 31Q5-42051 [1] TRAVEL MOTOR ASSY
*-2. 31Q6-40121 [1] T/REDUCTION GEAR
1 XKAQ-00217 [1] HOUSING
2 XKAQ-00986 [2] BEARING-MAIN
3 XKAQ-00219 [1] SEAL-FLOATING
4 XKAQ-00220 [1] SHIM
5 XKAQ-00221 [1] RETAINER
6 XKAQ-00222 [12] BOLT-HEX
7 XKAQ-00223 [2] PIN-PARALLEL
8 XKAQ-00224 [1] GEAR-RING
9 XKAQ-00225 [1] COUPLING
10 XKAQ-00226 [1] CARRIER 2 ASSY
10-1. XKAQ-00227 [1] CARRIER 2
10-2. XKAQ-00228 [4] GEAR-PLANET 2
10-3. XKAQ-00229 [8] BEARING-NEEDLE 2
10-4. XKAQ-00230 [8] WASHER-THRUST
10-5. XKAQ-00231 [4] PIN 2
10-6. XKAQ-00232 [4] PIN-SPRING
10-7. XKAQ-00208 [2] RING-THRUST
11 XKAQ-00233 [1] CARRIER ASSY 1
11-1. XKAQ-00234 [1] CARRIER 1
11-2. XKAQ-00235 [1] GEAR-SUN 2
11-3. XKAQ-00236 [1] RING-RETAINING
11-4. XKAQ-00237 [3] GEAR-PLANET 1
11-5. XKAQ-00238 [3] BEARNG-NEEDLE 1
11-6. XKAQ-00239 [6] WASHER-THRUST
11-7. XKAQ-00240 [3] PIN 1
11-8. XKAQ-00241 [3] PIN-SPRING
11-9. XKAQ-00655 [3] PIN-SPRING
12 XKAQ-00242 [1] GEAR-SUN 1
13 XKAQ-00243 [1] COVER
14 XKAQ-00214 [1] PAD
15 XKAQ-00244 [20] BOLT-SOCKET
16 XKAQ-00245 [2] SCREW-HEX SOCKET
17 XKAQ-00246 [3] PLUG-HYDRAULIC
18 XKAQ-00247 [3] O-RING
19 XKAQ-00989 [1] NAME PLATE







  • Advantage



1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB



  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance







  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
