| Application |

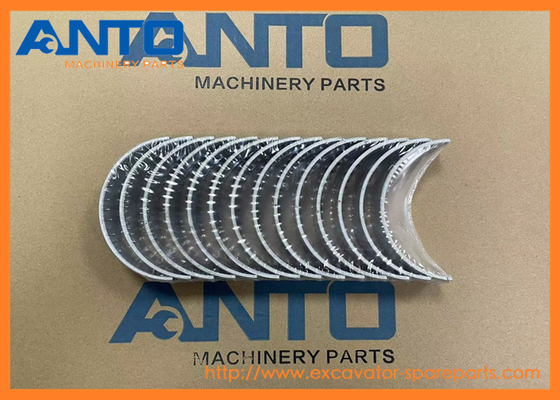

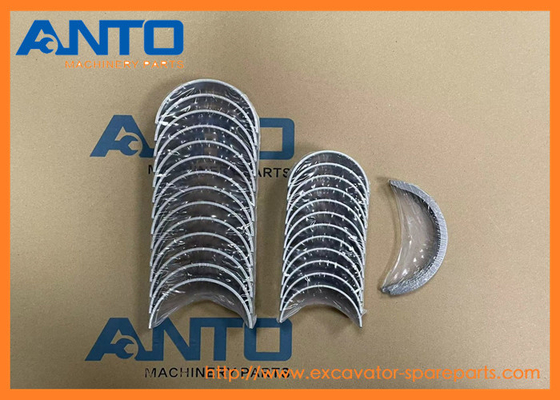

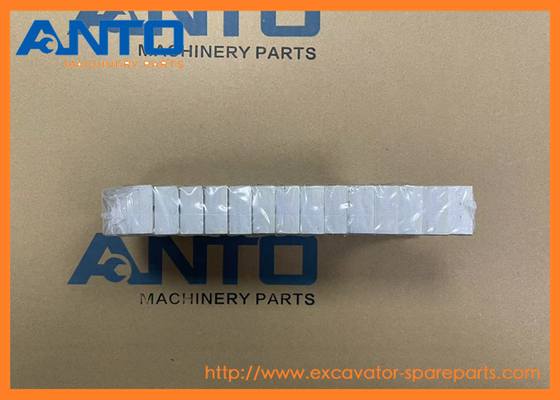

DOOSAN excavator engine parts |
| Name |
Metal |
| Parts No |
65.01110-6090B 65.011106090B |
| Model |
DX140W DX210 DX220AF DX225LCA SOLAR 130LC-V SOLAR 130W-V SOLAR 140LC-V SOLAR 140W-V
|
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
EXCAVATORS
DX140W DX210 DX220AF DX225LCA SOLAR 130LC-V SOLAR 130W-V SOLAR 140LC-V SOLAR 140W-V
- More metal parts supplied to DOOSAN machine
| 1100240149 METAL |
| Doosan |
| |
| 65.02410-6126B METAL;CON-ROD 0.5mm |
| Doosan |
| |
| 65.02410-6125B METAL;CON-ROD 0.25mm |
| Doosan |
| |
| 65.02410-6124B METAL;CON-ROD 0.125mm |
| Doosan |
| |
| 65.02410-6083B METAL;CON-ROD STD |
| Doosan |
| |
| 1100022813 METAL |
| Doosan |
| |
| 129900-23600 METAL ASS'Y(STD.) |
| Doosan |
| |
| 129900-02940 METAL;THRUST(0.25) |
| Doosan |
| |
| 129900-02340 METAL;MAIN(0.25) |
| Doosan |
| |
| 129150-02450 METAL;THRUST |
| Doosan |
| |
| 65.01110-6092B METAL;CRANK 0.50 |
| Doosan |
| |
| 65.01110-6091B METAL;CRANK 0.25 |
| Doosan |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
65.01101-6054G |
[1] |
CYLINDER BLOCK ASS'Y |
65.01101-6054H |
| 1 |
65.01101-6054H |
[1] |
CYLINDER BLOCK ASS'Y |
|
| 10 |
65.04410-0006A |
[5] |
BUSH;CAM SHAFT |
|
| 11 |
65.90302-0009 |
[2] |
. PLUG;CORE |
|
| 12 |
06.15091-0319 |
[2] |
PLUG;CORE |
|
| 13 |
06.15091-0322 |
[3] |
PLUG;CORE |
|
| 15 |
65.90310-0030 |
[1] |
SCREW;PLUG M12X1.25 |
|
| 16 |
06.56190-0704 |
[1] |
. RING;SEAL |
|
| 17 |
65.90320-0019 |
[1] |
PLUG SCREW PT3/8 |
|
| 18 |
06.15091-0313 |
[2] |
PLUG;CORE |
|
| 19 |
65.90320-0022 |
[10] |
PLUG SCREW |
|
| 2 |
65.01101-0031D |
[1] |
BLOCK;CYLINDER |
|
| 20 |
65.90201-0058 |
[1] |
BOLT;STUD M14X12.5X45 |
|
| 21 |
65.91605-0001 |
[1] |
COVER |
65.91605-0001E |
| 21 |
65.91605-0001E |
[1] |
COVER |
|
| 22 |
06.01913-3113 |
[2] |
.. BOLT ASS`Y M8X20 |
|
| 23 |
65.01112-0021 |
[2] |
COVER;PUSH ROD CHAMBER |
|
| 23 |
65.01112-0021A |
[3] |
COVER;PUSH ROD CHAMBER |
|
| 24 |
65.01112-6003 |
[1] |
COVER;PUSH ROD CHAMBER |
|
| 25 |
65.90020-0049 |
[6] |
BOLT;HEX. |
|
| 26 |
65.96507-0007 |
[6] |
PACKING;PUSH ROD CHAMBER |
|
| 27 |
65.01110-6090B |
[7] |
METAL;CRANK STD |
|
| 27 |
65.01110-6091B |
[7] |
BEARING,MAIN 0.25 |
|
| 27 |
65.01110-6092B |
[7] |
BEARING,MAIN 0.50 |
|
| 28 |
65.01150-6010A |
[2] |
WASHER;THRUST STD |
|
| 28 |
65.01150-6034A |
[2] |
WASHER;THRUST 0.25 |
|
| 28 |
65.01150-6035A |
[2] |
WASHER;THRUST 0.50 |
|
| 29 |
65.91615-0011 |
[1] |
COVER;BLIND |
|
| 3 |
65.01105-1004 |
[6] |
CAP;BEARING(F.M.R) |
|
| 30 |
06.01913-3113 |
[2] |
.. BOLT ASS`Y M8X20 |
|
| 31 |
65.01201-0029B |
[6] |
LINER;CYLINDER |
65.01201-0067 |
| 31 |
65.01201-0067 |
[6] |
LINER;CYLINDER (ALTV.) |
|
| 31 |
65.01201-0068 |
[6] |
LINER;CYLINDER(1A) |
|
| 31 |
65.01201-0069 |
[6] |
LINER;CYLINDER(1B) |
|
| 31 |
65.01201-0070 |
[6] |
LINER;CYLINDER(2A) |
|
| 31 |
65.01201-0071 |
[6] |
LINER;CYLINDER(2B) |
|
| 36 |
65.01901-0004 |
[3] |
GASKET;CHAMBER COVER |
65.01901-0020 |
| 36 |
65.01901-0020 |
[3] |
GASKET;PUSH ROD CHAMBER |
|
| 37 |
06.56021-0106 |
[1] |
O-RING;O/P DRIVE FLANGE |
|
| 38 |
65.90310-0135 |
[1] |
PLUG;SCREW |
|
| 39 |
06.56190-0706 |
[1] |
SEAL RING |
|
| 40 |
65.05903-0013 |
[1] |
GASKET |
65.05903A0013 |
| 40 |
65.05903A0013 |
[1] |
GASKET;FLANGE |
|
| 41 |
65.98130-0040A |
[1] |
ADAPTER |
|
| 42 |
65.06310-6003 |
[1] |
PLUG;DRAIN |
|
| 44 |
04.50010-0811 |
[1] |
HOSE;VINYL |
|
| 45 |
06.56190-0713 |
[1] |
RING;SEAL |
|
| 48 |
06.56021-0102 |
[1] |
. O-RING |
|
| 5 |
65.01105-1003 |
[1] |
CAP;BEARING(NO.4) |
|
| 52 |
65.05401-5002 |
[1] |
RELIEF VALVE ASS'Y |
65.05401-5002F |
| 52 |
65.05401-5002F |
[1] |
RELIEF VALVE ASS'Y |
|
| 53 |
65.27441-7006 |
[1] |
SWITCH;OIL PRESS |
|
| 55 |
65.97401-0050 |
[1] |
CLIP;PIPE |
|
| 7 |
65.91710-0001 |
[2] |
.. RING;STOPPER |
|
| 8 |
65.90020-0029 |
[14] |
BOLT;HEX. BEARING CAP |
65.90020-0066A |
| 8 |
65.90020-0066A |
[14] |
. BOLT;BRG CAP |
|
| 9 |
65.04410-0012 |
[1] |
BUSH;CAM SHAFT |
65.04410-0007A |
| 9 |
65.04410-0007A |
[1] |
BUSH;CAM SHAFT |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
