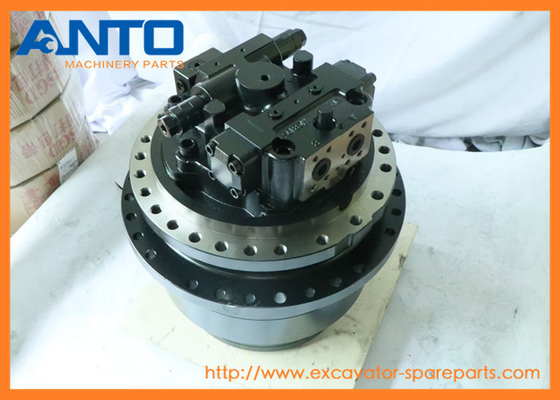

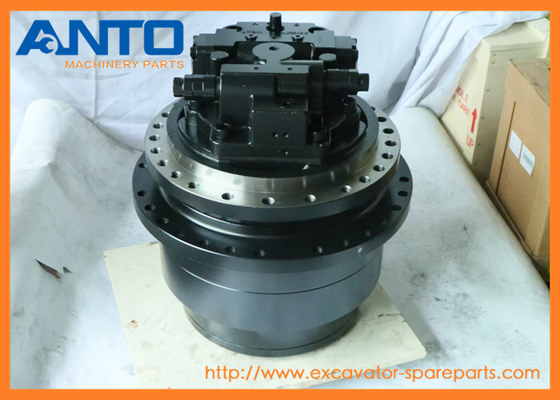

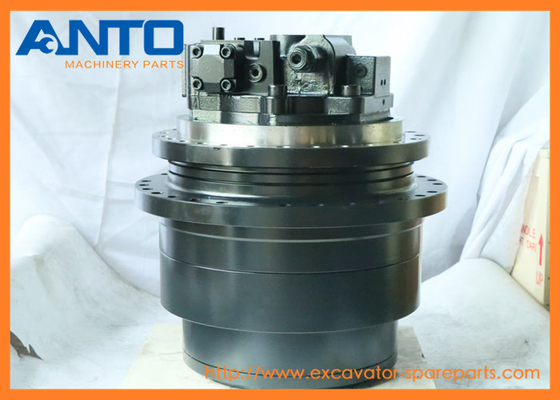

- 31QA-40041 31QA-40040 31QA-40042 Final Drive HYUNDAI Excavator Travel Motor Parts For R390LC-9
| Name |
Final Drive |
| Parts No |
31QA-40041 31QA-40040 31QA-40042 |
| Machine Model |
R360LC9 R380LC9A R380LC9SH R390LC9 |
| Category |
Travel Motor |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
9-SERIES CRAWLER EXCAVATOR R360LC9 R380LC9A R380LC9SH R390LC9 Hyundai
- More other travel motor parts fit for HYUNDAI machine
| 31QA-40040 TRAVEL MOTOR ASSY |
| R360LC9, R380LC9SH, R390LC9 |
| |
| 71Q6-20601 TRAVEL LEVER WA-LH |
| HX180L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R220LC9A, R220NLC9A, R23... |
| |
| 71Q6-20751 TRAVEL LEVER WA-RH |
| HX180L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R220LC9A, R220NLC9A, R23... |
| |
| 31QA-40021 TRAVEL MOTOR ASSY |
| HX380L, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R380LC9SH, R390LC9 |
| |
| XKAH-01617 TRAVEL MOTOR UNIT |
| R360LC7A, R360LC9, R370LC7, R380LC9DM, R380LC9SH, R390LC9 |
| |
| 31QA-40042 TRAVEL MOTOR ASSY |
| HX380L, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R380LC9SH, R390LC9 |
| |
| XKAH-01618 TRAVEL REDUCTION GEAR |
| R360LC9, R380LC9DM, R380LC9MH, R380LC9SH, R390LC9 |
| |
| XKAY-02027 TRAVEL REDUCTION GEAR |
| R360LC7A, R360LC9, R380LC9A, R380LC9SH, R390LC9 |
| |
| XKAY-02147 TRAVEL REDUCTION GEAR |
| HX380L, R360LC7A, R360LC9, R370LC7, R380LC9A, R380LC9DM, R380LC9MH, R380LC9SH, R390LC9 |
| |
| XJBN-01876 TRAVEL SPOOL "7NT4" |
| R380LC9A, R430LC9A |
| |
| XJBN-01895 TRAVEL STRAIGHT SPOOL SUB |
| R380LC9A, R430LC9A |
| |
| XKAY-02144 TRAVEL MOTOR |
| R360LC7A, R370LC7, R380LC9A, R380LC9SH |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
31QA-40040 |
[1] |
TRAVEL MOTOR ASSY |
*-1,*-2 |
| *. |
31QA-40041 |
[1] |
TRAVEL MOTOR ASSY |
*-1,*-2 |
| *. |
31QA-40042 |
[1] |
TRAVEL MOTOR ASSY |
*-1,*-2 |
| *-1. |
XKAY-01623 |
[1] |
TRAVEL MOTOR |
|
| 1 |
XKAY-01602 |
[1] |
CASING-SHAFT |
|
| 2 |
XKAY-01415 |
[12] |
PLUG |
|
| 3 |
XKAY-01603 |
[1] |
ORIFICE |
|
| 4 |
XKAY-00199 |
[1] |
SCREW-ORIFICE |
|
| *-11. |
XKAY-01156 |
[1] |
SWASH PISTON KIT |
|
| N5. |
XKAY-01604 |
[1] |
PISTON-SWASH |
|
| 6 |
XKAY-01158 |
[2] |
BALL-SWASH |
|
| 7 |
XKAY-01605 |
[4] |
PIN-BRAKE |
|
| 8 |
XKAY-01159 |
[1] |
SHAFT |
|
| 9 |
XKAY-00209 |
[1] |
BEARING-ROLLER |
|
| 10 |
XKAY-00210 |
[1] |
RING-STOP |
|
| 11 |
XKAY-00275 |
[1] |
RING-LOCK |
|
| 12 |
XKAY-01606 |
[1] |
PLATE-SWASH |
|
| *-12. |
XKAY-01161 |
[1] |
ROTARY KIT |
|
| *-A. |
XKAY-01162 |
[1] |
CYLINDER BLOCK KIT |
|
| N13. |
XKAY-00220 |
[1] |
BLOCK-CYLINDER |
|
| N14. |
XKAY-00221 |
[9] |
SPRING-CYLINDER |
|
| N28. |
XKAY-01612 |
[1] |
PLATE-VALVE |
|
| *-B. |
XKAY-01163 |
[1] |
RETAINER KIT |
|
| N15. |
XKAY-01607 |
[1] |
SPACER |
|
| N16. |
XKAY-01608 |
[1] |
GUIDE-BALL |
|
| N17. |
XKAY-01164 |
[1] |
PLATE-SET |
|
| *-C. |
XKAY-01165 |
[1] |
PISTON KIT |
|
| N18. |
XKAY-01609 |
[9] |
PISTON & SHOE ASSY |
|
| 19 |
XKAY-00228 |
[2] |
PLATE-FRICTION |
|
| 20 |
XKAY-00229 |
[2] |
PLATE-SEPARATOR |
|
| *-13. |
XKAY-01166 |
[1] |
BRAKE PISTON KIT |
|
| 21 |
XKAY-01610 |
[1] |
PISTON-BRAKE |
|
| 22 |
XKAY-00231 |
[1] |
RING-PISTON 252 |
|
| 23 |
XKAY-00232 |
[1] |
RING-PISTON 278 |
|
| 24 |
XKAY-00270 |
[3] |
O-RING |
|
| 25 |
XKAY-01611 |
[10] |
SPRING-BRAKE |
|
| *. |
XKAY-02333 |
[1] |
VALVE CASING ASSY |
NEW |
| 26 |
XKAY-01168 |
[1] |
CASING-VALVE |
OLD |
| 26 |
XKAY-02335 |
[1] |
CASING-VALVE |
NEW |
| 27 |
XKAY-00237 |
[2] |
PIN-VALVE PLATE |
|
| 29 |
XKAY-00235 |
[1] |
BEARING-NEEDLE |
|
| 30 |
XKAY-00236 |
[1] |
O-RING |
|
| 31 |
XKAY-01171 |
[1] |
SPOOL-SWASH |
|
| 32 |
XKAY-00269 |
[1] |
SPRING-SWASH |
|
| 33 |
XKAY-00266 |
[1] |
PLUG |
|
| 34 |
XKAY-00267 |
[1] |
O-RING |
|
| 35 |
XKAY-00204 |
[1] |
O-RING |
|
| 36 |
XKAY-00252 |
[2] |
SEAT |
|
| 37 |
XKAY-01174 |
[2] |
BALL-STEEL |
|
| 38 |
XKAY-00254 |
[2] |
STOPPER |
|
| 39 |
XKAY-00255 |
[7] |
PLUG-HP |
|
| 40 |
XKAY-00256 |
[7] |
O-RING |
|
| 41 |
XKAY-00257 |
[2] |
PLUG-HP |
|
| 42 |
XKAY-00247 |
[2] |
O-RING |
|
| 43 |
XKAY-01613 |
[2] |
RELIEF VALVE ASSY |
|
| *-14. |
XKAY-01614 |
[1] |
SPOOL KIT |
|
| N44. |
XKAY-01615 |
[1] |
SPOOL-MAIN |
|
| N45. |
XKAY-00478 |
[2] |
CHECK |
|
| N46. |
XKAY-00479 |
[2] |
SPRING |
|
| N47. |
XKAY-01616 |
[2] |
PLUG |
|
| N48. |
XKAY-00481 |
[2] |
O-RING |
|
| 49 |
XKAY-00482 |
[2] |
SEAT-SPRING |
|
| 50 |
XKAY-00483 |
[2] |
SPRING |
|
| 51 |
XKAY-01617 |
[2] |
COVER |
|
| 52 |
XKAY-00485 |
[2] |
SPRING |
|
| 53 |
XKAY-00486 |
[2] |
SPOOL |
|
| 54 |
XKAY-00487 |
[2] |
BALL-STEEL |
|
| 55 |
XKAY-00488 |
[2] |
SPRING |
|
| 56 |
XKAY-00489 |
[2] |
PLUG |
|
| 57 |
XKAY-00490 |
[2] |
SEAT-SPRING |
|
| 58 |
XKAY-00825 |
[2] |
O-RING |
|
| 59 |
XKAY-00519 |
[2] |
ORIFICE |
|
| 60 |
XKAY-00385 |
[8] |
BOLT-WRENCH |
|
| 61 |
XKAY-01618 |
[1] |
NAME PLATE |
|
| 62 |
XKAY-00517 |
[2] |
RIVET |
|
| 63 |
XKAY-01179 |
[1] |
SEAL-OIL |
|
| 64 |
XKAY-01180 |
[1] |
RING-SNAP |
|
| 65 |
XKAY-00271 |
[6] |
BOLT-WRENCH |
|
| 65 |
XKAY-00271 |
[8] |
BOLT-WRENCH |
|
| 66 |
XKAY-01619 |
[4] |
BOLT-WRENCH |
|
| 67 |
XKAY-01282 |
[1] |
PIN-SPRING |
|
| 80 |
XKAY-02013 |
[2] |
O-RING |
|
| *-2. |
@ |
[1] |
T/REDUCTION GEAR |
SEE 4135 |
| N. |
@ |
[AR] |
NOT SUPPLIED PARTS |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
