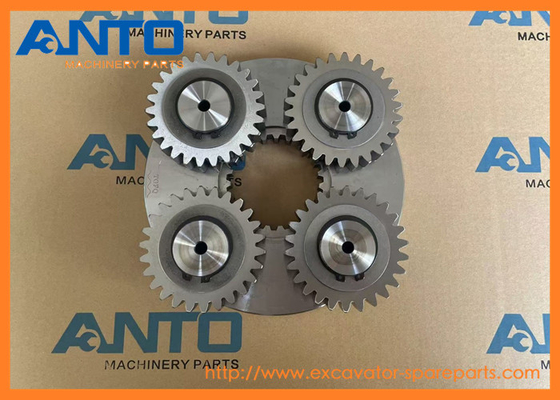

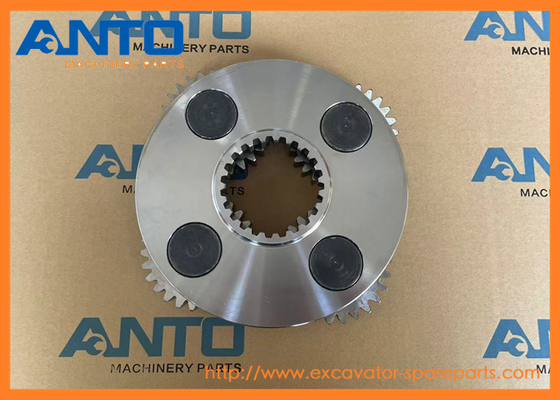

- XKAQ-00126 Carrier HYUNDAI Excavator Spare Parts Fitting For R250LC-7 R260LC-9A
| Name |
Carrier |
| Parts No |
XKAQ-00126 |
| Machine Model |
R250LC9 R250LC9A R260LC9S RB260LC9S |
| Category |
Swing Reduction Gear |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S RB260LC9S Hyundai
- More other carrier parts fit for HYUNDAI machine
| XKAQ-00496 CARRIER-NO.1 |
| R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| |
| 39Q8-42190 CARRIER 2 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| |
| 39Q8-42270 CARRIER 1 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| |
| 39Q8-42180 CARRIER ASST KIT 1 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| |
| 39Q8-42260 CARRIER ASST KIT 2 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| |
| XKAQ-00965 CARRIER 3 ASSY |
| R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| |
| XKAQ-00966 CARRIER 3 |
| R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| |
| 39Q7-12180 CARRIER 2 |
| HX260L, HX520L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| |
| 39Q7-12210 CARRIER 1 |
| HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| |
| 39Q7-12170 CARRIER ASSY 2 |
| HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| |
| 39Q7-12200 CARRIER ASSY 1 |
| HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| |
| XKAQ-00974 CARRIER ASSY 2 |
| R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| |
| XKAQ-00121 CARRIER 2 |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
@ |
[1] |
SWING MOTOR ASSY |
SEE 4100 |
| *-2. |
31EN-10070 |
[1] |
SWING REDUCTION GEAR |
|
| *-2. |
31EN-10071 |
[1] |
SWING REDUCTION GEAR |
|
| 1 |
XKAQ-00632 |
[1] |
CASING |
|
| 1 |
XKAQ-00633 |
[1] |
CASING |
|
| 2 |
XKAQ-00115 |
[1] |
SHAFT |
|
| 3 |
XKAQ-00116 |
[1] |
SPACER |
|
| 4 |
XKAQ-00117 |
[1] |
BEARING-ROLLER |
|
| 5 |
XKAQ-00118 |
[1] |
PLATE-COVER |
|
| 6 |
XKAQ-00064 |
[8] |
BOLT-HEX |
|
| 7 |
XKAQ-00119 |
[1] |
SEAL-OIL |
|
| 8 |
XKAQ-00120 |
[1] |
BEARING-ROLLER |
|
| 9 |
XKAQ-00121 |
[1] |
CARRIER 2 |
|
| 10 |
XKAQ-00122 |
[1] |
GEAR-SUN 2 |
|
| 10 |
XKAQ-00634 |
[1] |
GEAR-SUN 2 |
|
| 11 |
XKAQ-00123 |
[4] |
GEAR-PLANET 2 |
|
| 12 |
XKAQ-00124 |
[4] |
PIN 2 |
|
| N13. |
XKAQ-00533 |
[4] |
BUSHING 2 |
|
| N34. |
@ |
[4] |
PIN-SPRING |
|
| 14 |
XKAQ-00050 |
[4] |
PIN-SPRING |
|
| 15 |
XKAQ-00071 |
[4] |
WASHER-THRUST |
|
| 16 |
XKAQ-00126 |
[1] |
CARRIER 1 |
|
| 17 |
XKAQ-00127 |
[1] |
GEAR-SUN 1 |
|
| 18 |
XKAQ-00128 |
[4] |
GEAR-PLANET 1 |
|
| 19 |
XKAQ-00019 |
[4] |
PIN 1 |
|
| 20 |
XKAQ-00030 |
[4] |
CAGE-NEEDLE |
|
| 21 |
XKAQ-00129 |
[4] |
NEEDLE CAGE |
|
| 22 |
XKAQ-00635 |
[1] |
GEAR-RING |
|
| 23 |
XKAQ-00072 |
[4] |
PIN-KNOCK |
|
| 24 |
XKAQ-00131 |
[12] |
BOLT-SOCKET |
|
| 25 |
XKAQ-00132 |
[1] |
GEAR-PINION |
|
| 26 |
XKAQ-00296 |
[1] |
PLATE-LOCK |
|
| 27 |
XKAQ-00292 |
[1] |
WASHER-LOCK |
|
| 28 |
XKAQ-00042 |
[2] |
BOLT-HEX |
|
| 29 |
XKAQ-00066 |
[2] |
PLUG |
|
| 30 |
XKAQ-00049 |
[1] |
PLUG |
|
| 31 |
XKAQ-00040 |
[4] |
PLATE-SIDE 2 |
|
| 32 |
XKAQ-00041 |
[4] |
RING-STOP |
|
| 33 |
XKAQ-00048 |
[4] |
PIN-SPRING |
|
| 34 |
XKAQ-00133 |
[1] |
PIN-SPRING |
|
| 35 |
XKAQ-00166 |
[1] |
BAR-GAUGE |
|
| 35 |
XKAQ-00034 |
[1] |
BAR-GAUGE |
|
| 36 |
XKAQ-00167 |
[1] |
PIPE-GAUGE |
|
| 36 |
XKAQ-00035 |
[1] |
PIPE-GAUGE |
|
| 37 |
XKAQ-00143 |
[1] |
POST-AIR BREATHER |
|
| 37-1. |
@ |
[1] |
POST |
|
| 37-2. |
XKAQ-00797 |
[1] |
CAP-ARI BREATHER |
|
| *-1. |
@ |
[1] |
SWING MOTOR UNIT |
SEE 4100 |
| N. |
@ |
[1] |
NOT SUPPLIED PARTS |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
