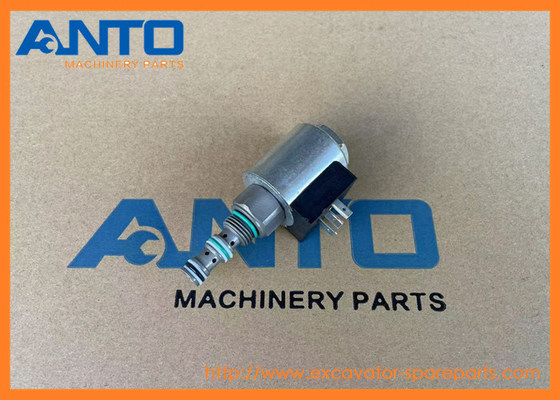

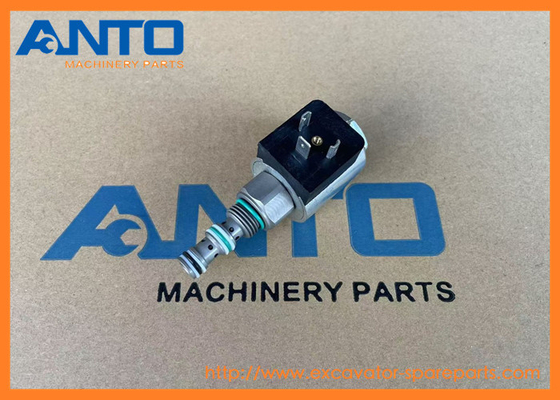

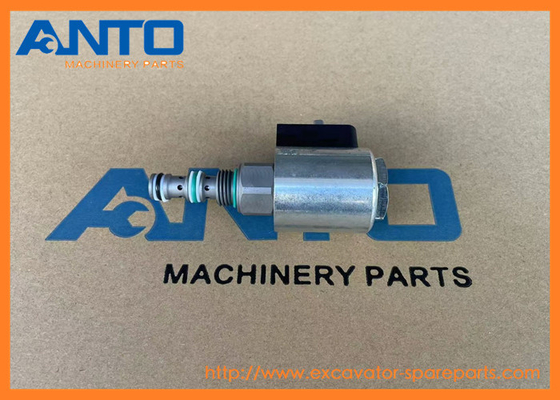

177-6820 1776820 Solenoid Valve Vibratory Compactor Engine Parts Fitting For 3116 CS-563D

Large Image : 177-6820 1776820 Solenoid Valve Vibratory Compactor Engine Parts Fitting For 3116 CS-563D

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	177-6820 1776820

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	Head Pump	Machine Model:	CP-573E CP-663E CS-531D CS-533D CS-563D
Application:	Vibratory Compactor	Product Name:	Solenoid Valve
Part Number:	177-6820 1776820	Packing:	Standard Export Carton

177-6820 1776820 Solenoid Valve Vibratory Compactor Engine Parts Fitting For 3116 CS-563D

Specification

Name	Solenoid Valve
Parts No	177-6820 1776820
Machine Model	CP-573E CP-663E CS-531D CS-533D CS-563D
Category	Head Pump
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

Compatible models

VIBRATORY COMPACTOR CP-573E CP-663E CS-531D CS-533D CS-563D CS-563E CS-573D CS-583D CS-583E CS-663E CS-683E C.ater.pillar.

More other valve parts fit for C A T machine

8F8151 VALVE-SHUTOFF

1090, 1190, 1190T, 120, 120B, 120G, 120H, 120H ES, 120H NA, 1290T, 12F, 12G, 12H, 12H NA, 130G, 135H, 135H NA, 1390, 140, 140B, 140G, 140H, 140H NA, 143H, 14E, 14H, 16, 160H, 163H, 16G, 16H NA, 16M, 2...

5F5434 VALVE AS-VENT

120, 120B, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 12E, 12F, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 130G, 135H, 135H NA, 140, 140B, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 143H, 14E, ...

6V7238 VALVE-SHUTOFF

1090, 1190, 1190T, 120K, 120K 2, 120M, 120M 2, 1290T, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 1390, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 214B, 2...

1382050 VALVE-EXHAUST

3054, 3054B, 3056, 3056E, 312C, 550B, 554, 560B, 564, 574B, 924G, 924GZ, 930G, AP-655C, AP-800C, BB-760, BG-225B, BG-225C, CB-534C, CB-535B, CP-433C, CP-433E, CP-573E, CP-663E, CS-431C, CS-433C, CS-56...

1456855 VALVE-INLET

3054, 3056, 3056E, 312B L, 315B L, 416C, 416D, 420D, 426C, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D, 550B, 560B, 564, 574B, 908, 924G, 924GZ, 930G, AP-655C, BB-760, CB-434C, CP-573E, CP-663E, CS...

1456857 VALVE-EXHAUST

3054, 3056, 312B L, 315B L, 416C, 416D, 420D, 426C, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D, 908, 924G, 924GZ, CB-434C, CS-323C, CS-663E, CS-683E, PS-150B

1129717 VALVE-DUST

216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D, 267, 267B,...

1614280 VALVE-INLET

120H, 120H ES, 120H NA, 135H, 135H NA, 30/30, 3116, 3126, 320B, 322B L, 322B LN, 322C, 322C FM, 325B L, 35, 45, 525B, 533, 535B, 539, 543, 55, 550, 561M, 570, 574, 580, 613C II, 928G, 938F, 938G, 950F...

1645590 VALVE GP-FLUID SAMPLING

1090, 1190, 1190T, 120H, 120H ES, 120H NA, 120K, 120K 2, 1290T, 12H, 12K, 135H, 135H NA, 1390, 140H, 140K, 140K 2, 143H, 14H, 160H, 160K, 163H, 16H, 216B, 216B3, 226B, 226B3, 2290, 232B, 236B

Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	117-7280	[1]	BUSHING (INTERNAL)
2	117-7282	[1]	SEAL-O-RING
3	117-7279	[1]	BUSHING (EXTERNAL)
4	6V-8397	[2]	SEAL-O-RING
5	5W-1250	[2]	PIN
6	087-4772	[2]	PLUG-O-RING
7	123-7590	[1]	CONTROL-PISTON
8	6E-4400	[2]	RETAINER-SPRING
9	6E-4399	[1]	SPRING
10	7Y-5219	[1]	SEAL-O-RING
11	117-7287	[1]	SCREW
12	6E-1607 M	[2]	LOCKNUT-SEALING
13	149-1283	[1]	SCREW-ADJUSTMENT
14	6E-4396	[1]	PISTON
15	6E-4397	[1]	PISTON
16	6V-5586	[2]	SEAL-O-RING
17	152-1811 Y	[1]	VALVE GP-RELIEF
18	177-1724	[1]	SPINDLE
19	177-1718	[1]	COLLAR
20	177-1837	[1]	SPRING
21	177-1821	[1]	NUT-SPRING
22	177-1725	[1]	PIN-THREADED
23	177-6815	[1]	PLUG-LOCKING
24	112-4716	[1]	BOLT-ADJUSTMENT
25	167-7713	[1]	RING-BACKUP
26	177-6854	[1]	PLUG-PIN
27	112-4714	[1]	SPRING
28	5E-6955	[4]	BOLT
29	120-4394	[2]	PLUG-BREAK OFF
30	112-4628	[2]	SCREW (7/16-20X0.5-IN)
31	6V-8978	[1]	SEAL-O-RING
32	177-6820	[1]	VALVE GP-SOLENOID
33	6V-5326	[2]	SEAL-O-RING
34	177-6853	[1]	VALVE-THROTTLE
35	4J-5309	[1]	SEAL-O-RING
36	112-4634 Y	[1]	VALVE GP-RELIEF
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

177-6820 1776820 Solenoid Valve Vibratory Compactor Engine Parts Fitting For 3116 CS-563D 0

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
