39Q641110 39Q6-41110 Casing Excavator Travel Motor Fitting For HYUNDAI R210LC7A

I appreciate the help from Paul, he's prefessional and knows exactly what parts I need. My CAT has gone back to work without any problem.

—— Raphael

Got the final drive and its beautiful I think. We've have it assembled in our Hitachi ZX330 excavator, my machines goes to work again now. Many thanks

—— Kevin

Fast shippment, the arrived parts is good quality, our engine is repaired and is perfectly running at maximum power. Thank you, god bless.

—— Mohammed

I'm Online Chat Now

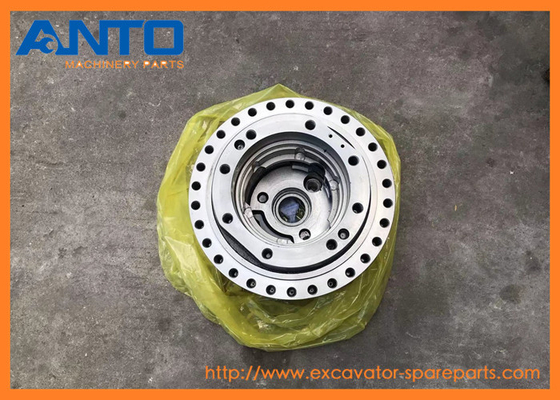

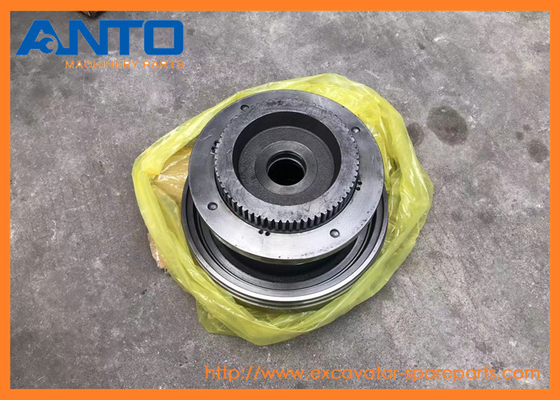

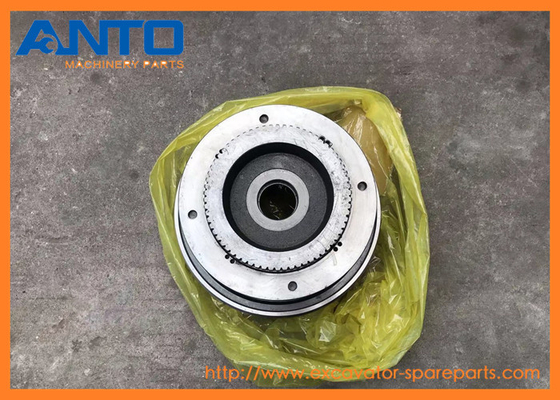

39Q641110 39Q6-41110 Casing Excavator Travel Motor Fitting For HYUNDAI R210LC7A

39Q641110 39Q6-41110 Casing Excavator Travel Motor Fitting For HYUNDAI R210LC7A
39Q641110 39Q6-41110 Casing Excavator Travel Motor Fitting For HYUNDAI R210LC7A

Large Image :  39Q641110 39Q6-41110 Casing Excavator Travel Motor Fitting For HYUNDAI R210LC7A

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 39Q641110 39Q6-41110
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100-2000
Detailed Product Description
Category: HYUNDAI Excavator Travel Motor Parts Name: Casing
Parts Number: 39Q641110 39Q6-41110 Models: R210LC7A R215LC7 RD210-7 RD210-7V RD220-7
Lead Time: Stock For Soon Delivery Warranty: 6/12 Months

  • 39Q641110 39Q6-41110 Casing Excavator Travel Motor Fitting For HYUNDAI R210LC7A







  • Specification
Spare parts name Casing
Equipment Model R210LC7A R215LC7 RD210-7 RD210-7V RD220-7
Parts Category HYUNDAI Excavator Travel Motor
Spare parts Condition Brand new, OEM quality
MOQ of order(PCS, SET) 1 PCS
Parts Availability In stock
Delivery Lead time 1-3 days







  • Compatible models

7-SERIES CRAWLER EXCAVATOR R210LC7A R215LC7 RD210-7 RD210-7V RD220-7

9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD220LC9

F-SERIES CRAWLER EXCAVATOR HX220L HX220NL







  • More other casing parts applicable for HYUNDAI machine
31Y1-15545 SEAL KIT
R290LC7, R290LC7A, R300LC7, R305LC7

31Y1-34340 SEAL KIT
HX300L, R290LC7A, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R305LC7

31Y1-30111 SEAL KIT
HX300L, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R520LC9

31Y1-30290 SEAL KIT
R290LC9, R300LC9A, R300LC9S, R300LC9SH, R380LC9DM, R520LC9

XKAH-01290 SEAL-FLOATING
R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, RD510LC-7

31Y1-18420 SEAL KIT
R450LC7

31Y1-24791 SEAL KIT
R450LC7, R450LC7A

31Y1-24790 SEAL KIT
R450LC7, R450LC7A

31Y1-24792 SEAL KIT
R450LC7, R450LC7A

31Y1-18430 SEAL KIT
R450LC7







  • Parts list diagram
Pos. Part No Qty Parts name Comments
*. 39K6-40100 [1] TRAVEL MOTOR ASSY TYPE 1
*. 39K6-40101 [1] TRAVEL MOTOR ASSY TYPE 1
*. 38K6-40100 [1] TRAVEL MOTOR ASSY TYPE 2
*. 38K6-40101 [1] TRAVEL MOTOR ASSY TYPE 2
*-1. 39K6-41100 [1] TRAVEL MOTOR UNIT TYPE 1
*-1. 38K6-41100 [1] TRAVEL MOTOR UNIT TYPE 2
1 39Q6-41110 [1] CASING
K2. 39Q6-41120 [1] PLUG
3 39Q6-41130 [1] SEAL-OIL
4 39Q6-41140 [1] PLATE-THRUST
5 S602-060001 [1] RING-RETAINING
NK6. 39Q6-41160 [1] PISTON
NK7. 39Q6-41170 [1] SEAL-PISTON
8 39Q6-41180 [1] SHAFT
9 39Q6-41190 [1] BEARING-ROLLER
K10. 39Q6-41200 [1] BEARING-NEEDLE
11 S602-080001 [1] RING-RETAINING
12 S601-040001 [1] RING-RETAINING
13 39Q6-41210 [1] RING-SNAP
14 39Q6-41220 [1] PLATE-THRUST
15 39Q6-41230 [1] BALL-STEEL
16 39Q6-41240 [2] PIVOT
17 39Q6-41250 [1] PLATE-SWASH
NK18. 39Q6-41280 [1] BLOCK-CYLINDER
NK19. 39Q6-41290 [9] SPRING
NK20. 39Q6-41310 [1] GUIDE-BALL
NK21. 39Q6-41320 [1] PLATE-RETAINER
NK22. 39Q6-41330 [9] PISTON ASSY
N22-1. 39Q6-41341 [1] PISTON NOT SHOWN
N22-2. 39Q6-41350 [1] SHOE NOT SHOWN
23 39Q6-41361 [5] PLATE-FRICTION
24 39Q6-41370 [6] PLATE-SEPARATED
25 39Q6-41380 [1] PISTON-PARKING
NK26. 39Q6-41390 [1] D-RING
NK27. 39Q6-41400 [1] D-RING
28 39Q6-43410 [1] PLATE-VALVE
NK31. 39Q6-41440 [1] O-RING
K. 39Q6-41150 [1] PISTON KIT SEE ILLUST
K. 39Q6-41260 [1] ROTARY KIT SEE ILLUST
K. 39Q6-41270 [1] CYLINDER BLOCK KIT SEE ILLUST
K. 39Q6-41300 [1] RETAINER KIT SEE ILLUST
K. 39Q6-41810 [1] O-RING KIT SEE ILLUST
K. 39Q6-41820 [1] D-RING KIT SEE ILLUST
K. 38K6-41462K [1] REAR COVER KIT SEE ILLUST
N. @ [AR] NOT SUPPLIED PARTS

39Q641110 39Q6-41110 Casing Excavator Travel Motor Fitting For HYUNDAI R210LC7A 0







  • Advantage



1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB



  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance







  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
