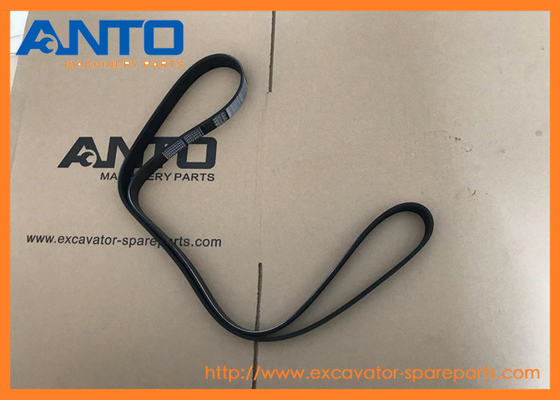

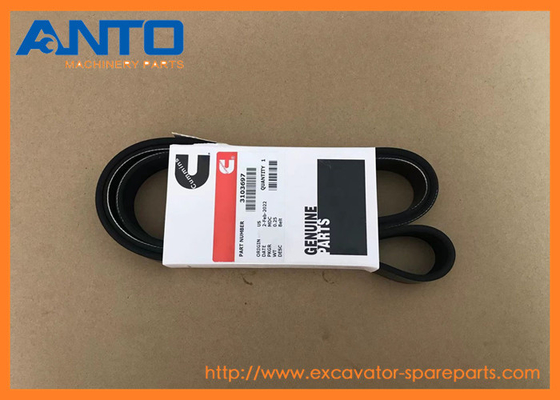

3103697 V-Belt Excavator Engine Parts Fitting For HYUNDAI R450LC7 R450LC7A R500LC7

• 3103697 V-Belt Excavator Engine Parts Fitting For HYUNDAI R450LC7 R450LC7A R500LC7

• Specification

• Application

7-SERIES CRAWLER EXCAVATOR R450LC7 R450LC7A R500LC7 R500LC7A RD510LC-7

9-SERIES CRAWLER EXCAVATOR R480C9MH R480LC9 R480LC9S R520LC9 R520LC9S

• More belt parts Applied To HYUNDAI machine

• Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
1	S-117	[2]	SCREW-HEX HD CAP	FA2173-01
2	107695	[1]	PIN-ROLL
3	3009330	[2]	WASHER-PLAIN
5	3103961	[1]	BELT-V RIBBED	12 RIB, 1143MM
5	3103697	[1]	BELT-V RIBBED	8 RIB, 1628MM
6	3034319	[1]	NUT-REGULAR HEX
7	3034320	[1]	WASHER-PLAIN
8	3034836	[4]	SCREW-HEX HD CAP
9	3071506	[1]	PULLEY-FAN
*.	3267045	[1]	IDLER PULLEY ASSY
10	3060884	[1]	COVER-IDLER PULLEY
11	3062601	[1]	SEAL/O-RING
N*-1.	3254679	[1]	IDLER PULLEY
12	3003163	[1]	WASHER-PLAIN
13	3027680	[1]	SEAL-OIL
14	3027681	[1]	BEARING-ROLLER
15	3254678	[1]	IDLER PULLEY
16	3335044	[1]	SCREW-HEX HD CAP
17	3254648	[1]	IDLER SHAFT
*.	3065358	[1]	FAN HUB
18	3027675	[1]	SEAL-OIL
19	3027676	[1]	SHAFT-FAN HUB
20	3027677	[1]	FLANGE
21	3027686	[1]	WASHER-PLAIN
22	3037597	[1]	HUB-FAN
23	3063844	[1]	COVER-FAN HUB
16	3335044	[1]	SCREW-HEX HD CAP
24	3896996	[1]	BEARING
25	3081348	[3]	SCREW-HEX HD CAP
26	3253776	[1]	SUPPORT FAN HUB
27	3253778	[1]	SCREW-HEX H/CAP



• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Our Service

1. OEM Manufacturing welcome : Product , Package ...

2. When you place order with us , we will take clear photos as your need .

3. We will reply you for your inquiry in 24 hours .

4. When you got the goods , test them , and give me a feedback . If you have any questions about the problem , contact with us , we will offer the solve way for you .

• Our Company

Anto Machinery is made up of a professinal engineering team, with high experirence in genuine, OEM and aftermarket parts.

for excavators, bulldozers, forklift, loaders, and crane covering brand Hyundai , Sany , DOOSAN , Vo-lvo , HITACHI , KOBELCO , KOMATSU , KATO , , JCB , LIEBHERR , SANY , XCMG , XGMA , LIUGONG , SHANTUI , etc.

We are with full range of data information for the engine parts, hydraulic parts ,seal parts, electrical parts, gear & reducer parts, cylinder parts, bucket parts, cab parts, etc. As exporting about 20 years, we now have customers the whole world including the countries Brazil, Mexico, Colombia, Venezuela, Peru, America, Canada, Russia, Poland, Ireland, Sweden, France, England, Romania, Spain, Portugal, Ukraine, Lithuania, Norway, Italy, Finland, UAE, Saudi Arabia, Israel, Iraq, Sudan, Kenya, Tanzania, Sri Lanka, Kazakhstan, Pakistan, Burma, Thailand, Vitenam, Philippines, Indonesia, Australia, New Zealand, etc.

Thanks very much to our customers support and big trust.

We will keep improving everyday. Any of your encouragement in inquiry and order is our motivation.

We warm welcome your visiting and consulting on your needed parts.

• Why choose us

1. Quality stability .

2. Professional R&D team .

3. We have all Specifications of our products and can meet customers ’ product diversity needs .

4. We prefer to accept your lower MOQ in order to relieve your purchasing stress .

5. Our markets are widely distributed to North Europe , East Europe , West Europe , North America , South America , East Asia , Southeast Asia , Middle East , Australia , etc . and enjoy good reputation .
