Product Details:
Payment & Shipping Terms:
|
| Category: | Vo-lvo Excavator Engine Parts | Machine Model: | EC240B EC240C EC290B EC290C FC2924C FC3329C G900 MODELS L105 L110E L110F L120E L120F |
|---|---|---|---|
| Parts No.: | 20893636 VOE20893636 | Parts Name: | Main Cable Harness |
| Warranty: | 6 Months | Package: | Standard Export Carton |
| Highlight: | EC240B Main Cable Harness,VOE20893636 Main Cable Harness,EC240C Main Cable Harness |
||

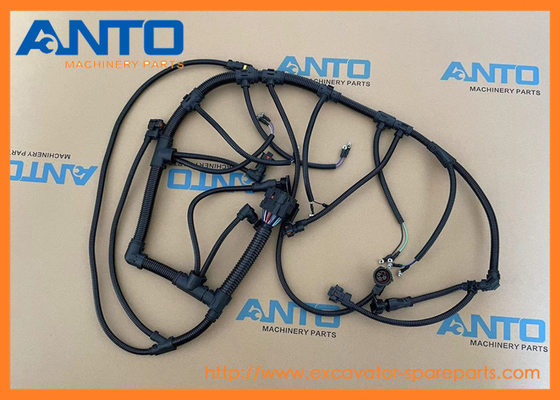

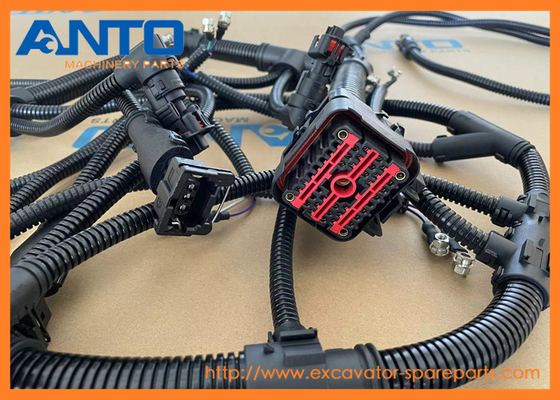

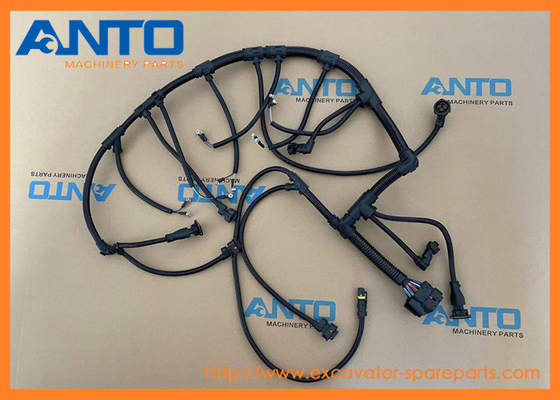

| Product name | Main cable harness |
| Part number | 20893636 VOE20893636 |
| Model |
EC240B EC240C EC290B EC290C FC2924C FC3329C G900 MODELS L105 L110E L110F L120E L120F |
| Category group | Vo-lvo Excavator Engine Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
EXCAVATORS
EC240B EC240C EC290B EC290C FC2924C FC3329C G900 MODELS L105 L110E L110F L120E L120F
| VOE3987034 Main switch |
| A20, A20C, A20C VOLVO BM, A25 VOLVO BM, A25B, A25C, A25C VOLVO BM, A25D, A25E, A25F, A30 VOLVO BM, A30C, A30C VOLVO BM, A30D, A30E, A30F, A35, A35C, A35C VOLVO BM, A35D, A35E, A35E FS, A35F, A35F FS, ... |
| VOE20867178 Main bearing kit |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, FB2800C, FBR2800C, G900 MODELS, L150E |
| VOE20867757 Main Bearing Ki |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, FB2800C, FBR2800C, G900 MODELS, L150E |
| VOE20405541 Main bearing |
| ABG7820/ABG7820B, ABG8820/ABG8820B, BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, EC200D, EC210D, EC240B, EC240C, EC250D, EC290B, EC290C, EC300D, ECR305C, EL70C VOLVO BM, EW1... |
| VOE21141948 Main bearing |
| ABG7820/ABG7820B, ABG8820/ABG8820B, BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, EC200D, EC210D, EC240B, EC240C, EC250D, EC290B, EC290C, EC300D, ECR305C, EL70C VOLVO BM, EW1... |
| VOE21234191 Main bearing |
| ABG7820/ABG7820B, ABG8820/ABG8820B, BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, EC200D, EC210D, EC240B, EC240C, EC250D, EC290B, EC290C, EC300D, ECR305C, EL70C VOLVO BM, EW1... |
| VOE15152461 Main axle beam |
| G900 MODELS, G900B, G900C |
| VOE16021145 Main axle beam |
| G900 MODELS, G900B, G900C |
| VOE20867751 Main Bearing |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, FB2800C, FBR2800C, G900 MODELS, L150E |
| VOE20867761 Main Bearing Ki |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, FB2800C, FBR2800C, G900 MODELS, L150E |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE20893636 | [1] | Main Cable Harness | ENG - 10785521 |
| 1 | VOE21814758 | [1] | Wiring harness | ENG 10785522 - |
| CONNECTED TO: | ||||
| Connector | ||||
| Engine speed,camshaft | SE2703 | |||
| Solenoid valve | ||||
| Coolant temperature | SE2606 | |||
| Charge-air temperature | SE2507, SE2508 | |||
| Fuel Regulator | ||||
| Fuel Nozzle | MA2301-MA2306 | |||
| Fuel pressure | SE2301 | |||
| Oil pressure sensor | SE2203 | |||
| Engine speed | SE2701 | |||
| Pressure Sensor | SE2309 | |||
| 2 | VOE20864600 | [1] | Bracket | |
| 3 | VOE20460347 | [7] | Clamping band | |
| 4 | VOE23002666 | [1] | Connector | |
| 5 | VOE21377079 | [1] | Bracket | |
| 6 | VOE20450802 | [2] | Flange screw | |
| 7 | VOE20834570 | [7] | Retainer | |
| 7 | VOE20792329 | [1] | Clamping Band | |
| 7 | VOE21011793 | [1] | Bracket | |
| 8 | VOE21896711 | [1] | Retaining plate | |
| 9 | VOE20405672 | [4] | Screw | |
| 10 | VOE4881440 | [REQ] | Cable tie | |
| 11 | VOE21063356 | [2] | Retainer | |
| 12 | VOE20450683 | [1] | Adapter | |
| 13 | VOE13947628 | [1] | Plane gasket | |
| 14 | VOE21531072 | [1] | Temperature sensor | SE2606 |
| 15 | VOE20524936 | [1] | Pressure sensor | SE2507, SE2508 |
| 16 | VOE20450728 | [1] | Bolt | |
| 17 | VOE22435058 | [1] | Sensor | SE2703 |
| 18 | VOE20450694 | [1] | Screw | |
| 19 | VOE20700252 | [1] | Bracket | |
| 20 | VOE20799862 | [2] | Bolt | |
| 21 | VOE20450707 | [1] | Tachometer | SE2701 |
| 22 | VOE20450694 | [1] | Screw | |
| 23 | VOE20450997 | [2] | Bracket | |
| 24 | VOE21291011 | [1] | Pressure sensor | SE2203 |
| 25 | VOE22899626 | [1] | Pressure sensor | SE2301 |
| 26 | [1] | Pressure Sensor | SE2309 | |
| 27 | VOE22383368 | [1] | Level sensor | SE2205, SE2202 |
| 28 | VOE20828295 | [1] | Sealing ring | |
| 29 | [1] | Solenoid valve | ||
| 30 | VOE60100000 | [1] | Electronic unit | E-ECU |
| 31 | VOE21071773 | [4] | Rubber element | |
| 32 | VOE20460055 | [1] | Screw |
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
