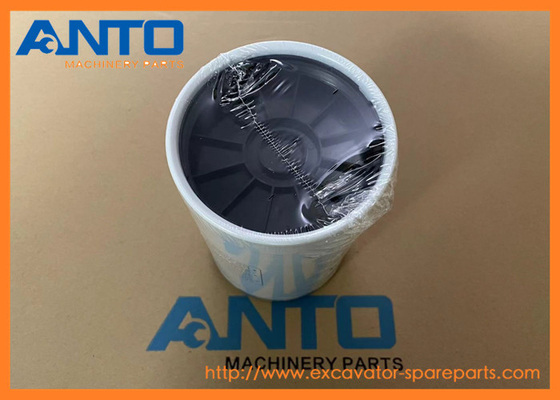

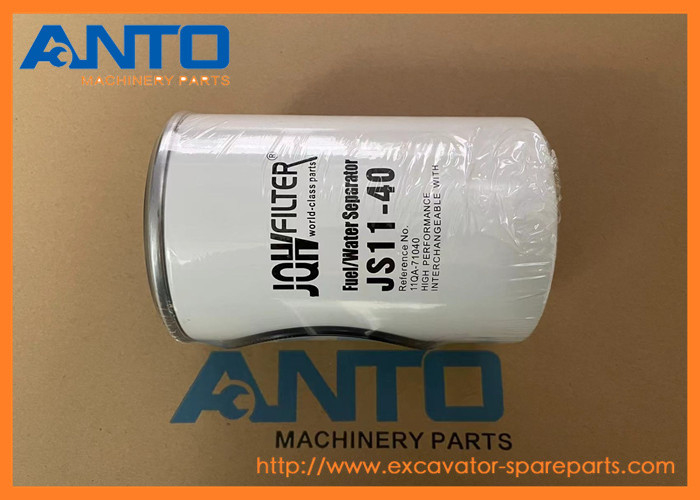

11KA71040 11KA-71040 Element For HYUNDAI Wheel Excavators HW210

Large Image : 11KA71040 11KA-71040 Element For HYUNDAI Wheel Excavators HW210

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	11KA71040 11KA-71040

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
Delivery Time:	3-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100-2000

Contact Now

Detailed Product Description

Category:	HYUNDAI Excavator Filter	Parts Name:	Element
Parts Number:	11KA71040 11KA-71040	Models:	HW210
Lead Time:	Stock For Soon Delivery	Warranty:	6/12 Months
Highlight:	11KA71040 Element , HW210 Element , 11KA-71040 Element

11KA71040 11KA-71040 Element For HYUNDAI Wheel Excavators HW210

Specification

spare parts name	Element
Equipment Model	11KA71040 11KA-71040
Parts Category	HYUNDAI Excavator Filter
Spare parts Condition	Brand new, OEM quality
MOQ of order(PCS, SET)	1 PCS
Parts Availability	In stock
Delivery Lead time	1-3 days

Compatible models

9-SERIES FORK LIFT-DIESEL 110D-9 35D-9 50D-9 80D-9

F-SERIES CRAWLER EXCAVATOR HX220L HX220NL HX235L HX260L HX300L HX330L HX380L HX430L

F-SERIES WHEEL EXCAVATOR HW210

F-SERIES WHEEL LOADER HL740-F HL740TM-F HL757-F HL757TM-F HL760-F Hyundai

More other element parts applicable for HYUNDAI machine

31E3-0018 ELEMENT-LINE FILTER

100D-7, 110D-7A, 110D-7E, 110D-9, 110DE, 33HDLL, 42HDLL, 50D-7A, 50D-7K, 50D-9, 50DE, 50DEACE, 80D-9, 80DE, 80DEACE, HL25C, HL35C, HL720-3, HL720-3C, HL730-7, HL730-9S, HL730-9SB, HL7303, HL7303C, HL7...

31EE-02110 ELEMENT

15D, 15D-9, 15D-9S, 15G-7M, 15L-7M, 15LC-7M, 20D-7E, 20DF, 20DT, 22D-9, 22D-9E, 22D-9T, 25G-7M, 25GC-7A, 25GC-7M, 25GC-7S, 25L-7A, 25L-7M, 25LC-7A, 25LC-7M, 25LC-7S, 25LF, 35D-9, 35D-9K, 35D-9S, 50D-9...

11N6-27030 ELEMENT-SAFETY

HL730-9, HL730-9S, HL730-9SB, HL730TM-9, HL740-9B, HL740-9S, HL740-9SB, HL757-9SM, HW140, HW210, HX220NL, HX235L, R140LC9, R140LC9S, R140W9, R140W9S, R160LC9, R160LC9S, R170W9, R170W9S, R180LC9, R180L...

11N6-27040 ELEMENT-PRIMARY

11N7-10020 ELEMENT

HW140, HW210, HX180L, HX220L, HX220NL, HX235L, HX260L, R125LCR-9A, R140LC9A, R140W9, R140W9A, R145CR9A, R160LC9A, R160W9A, R170W9, R180LC9A, R180W9A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC9, R210L...

4936636 ELEMENT-BREATHER

110D-7A, 110D-9, HL740-9A, HL740-F, HL740TM-9A, HL740TM-F, HL757-9A, HL757-F, HL757TM-9A, HL757TM-F, HL760-9A, HL760-9AW, HL760-F, HW140, HW210, HX220L, HX220NL, HX235L, HX260L, HX300L, R140W9A, R160W...

31Q6-20340 ELEMENT-LINE FILTER

HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145C...

1DFQ-20130 ELEMENT ASSY-SECONDARY

35D-9, 50D-9, 80D-9

4353984 ELEMENT-CATALYST

35D-9

5311117 ELEMENT-CATALYST

35D-9, 50D-9, 80D-9

5311116 ELEMENT-CATALYST

50D-9, 80D-9

31WD-60210 ELEMENT

HL757-F, HL757TM-F

Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
1	11FT-56011	[1]	COVER WA-FUEL
2	11FT-50020	[1]	GASKET
3	S035-082556	[10]	BOLT-W/WASHER
4	P020-110002	[2]	ELBOW-90
5	P220-110103	[1]	PLUG-HEX
6	S631-011001	[5]	O-RING
7	18FT-50010	[1]	FUEL RECIRCULATION KIT
8	S035-083526	[3]	BOLT-W/WASHER
9	18FT-50020	[3]	ELBOW-90
10	P010-310007	[1]	CONNECTOR
11	S611-019001	[4]	O-RING
12	11KA-71000	[1]	FUEL FILTER ASSY	SINGLE F/WARMER
12-1.	11QA-71010	[1]	HEAD ASSY
12-2.	11KA-71040	[1]	ELEMENT ASSY
12-3.	11QA-71050	[1]	BOWL ASSY
12-4.	11QA-71020	[1]	SENSOR ASSY-WIF
13	S037-103026	[2]	BOLT-W/WASHER
14	11FT-55160	[2]	ELBOW
15	18FT-50030	[1]	HOSE ASSY
16	16FT-50011	[1]	HOSE ASSY
17	19FT-50030	[1]	HOSE ASSY
18	P760-011120	[1]	HOSE-RUBBER
19	19FT-50010	[1]	HOSE ASSY
20	S520-015000	[6]	CLAMP-HOSE,S/DRIVE
21	31L6-02460	[2]	CLAMP-TUBE
22	S543-240002	[1]	CLAMP-TUBE
23	S035-082026	[3]	BOLT-W/WASHER
24	31QA-02080	[1]	STRAINER
25	11FT-55210	[1]	FUEL CAP ASSY
26	31FT-30010	[1]	FLANGE-SUCTION
27	S632-180001	[1]	O-RING
28	S037-102056	[6]	BOLT-W/WASHER
29	11S4-00610	[1]	PLUG-MAGNETIC
30	S611-023001	[1]	O-RING
31	11FA-50300	[1]	VALVE-FUEL CUT
32	S131-051546	[3]	SCREW-W/WASHER
33	11FA-52210	[1]	HOSE
34	S571-140002	[1]	CLAMP-HOSE,WIRE TYPE
35	21FT-10311	[1]	FUEL SENDER
36	E128-1053	[1]	GASKET
37	S131-041546	[5]	SCREW-W/WASHER
38	P760-011096	[1]	HOSE-RUBBER

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX

Tag:

Hydraulic Filter Element,

Fuel Filter Assy,

fuel water separator filter
