Product Details:
Payment & Shipping Terms:
|

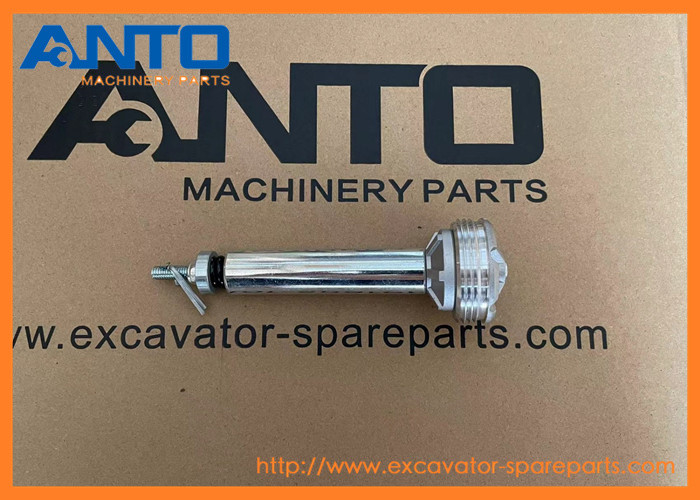

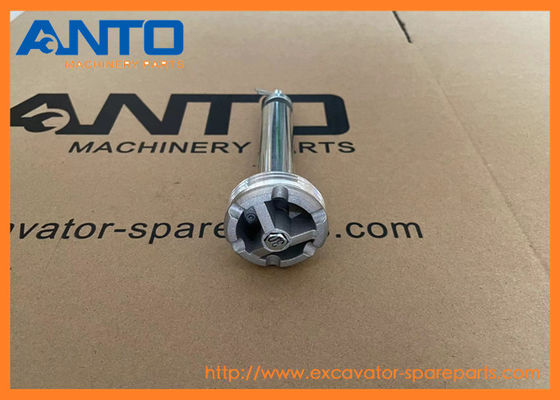

| Category: | Excavator Main Control Valve | Machine Model: | EC135B EC140B EC140D EC160B EC180B EC200B EC200D EC210B EC210D EC240B EC240C EW145B FC2924C |
|---|---|---|---|
| Parts No.: | 14531081 VOE14531081 | Parts Name: | Valve |
| Warranty: | 3/6/12 Months | Package: | Standard Export Carton |
| Highlight: | EC140B Excavator Main Control Valve,VOE14531081 Excavator Main Control Valve,EC135B Excavator Main Control Valve |
||
| pplication | Vo-lvo Excavator Main Control Valve |
| Parts Name | Valve |
| Parts No | 14531081 VOE14531081 |
| Model |
EC135B EC140B EC140D EC160B EC180B EC200B EC200D EC210B EC210D EC240B EC240C EW145B FC2924C |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
EXCAVATORS EC135B EC140B EC140D EC160B EC180B EC200B EC200D EC210B EC210D EC240B EC240C
EW145B FC2924C
| VOE14616530 Relief valve |
| EC160C, EC180C, EC210C, EC235C, EC240B, EC240C, EC330B, EC350E, EC380E, EC380EHR, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC700B, EC700BHR, EC700C, EC700CHR, ECR145C, ECR145D, ECR145E, ECR235C, EC... |
| VOE14622987 Relief valve |
| EC380E, EC480D, EC480E, EC480EHR |
| VOE14609177 Relief valve |
| EC380DHR |
| VOE14622933 Relief valve |
| EC350E, EC380E, EC380EHR, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, EC700C, EC750D, EC950E, PL4809D |
| VOE14609633 Relief valve |
| EC460C, EC460CHR, EC480D, EC480DHR, PL4809D |
| VOE14622932 Relief valve |
| EC350E, EC380E, EC380EHR, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, PL4809D |
| VOE14644604 Relief valve |
| EC350E, EC380E, EC380EHR |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE14531072 | [3] | Flexible coupling | |
| 2 | VOE14509667 | [2] | Gasket | |
| 3 | VOE14515801 | [1] | Bracket | |
| 4 | VOE14531081 | [1] | Valve | |
| 5 | VOE14531082 | [1] | Valve | |
| 6 | VOE14518216 | [1] | Pipe | SER NO 10001-10043 |
| VOE14521132 | [1] | Pipe | SER NO 10044- | |
| 7 | VOE14517302 | [1] | Pipe | |
| 8 | VOE14519694 | [1] | Pipe | |
| 9 | VOE14515800 | [1] | Pipe | |
| 10 | VOE14881380 | [1] | Rubber hose | |
| 11 | VOE14515794 | [1] | Pipe | |
| 12 | VOE14518883 | [1] | Bracket | |
| 13 | VOE991638 | [4] | Hexagon screw | |
| 14 | VOE984089 | [4] | Hex. socket screw | |
| 15 | VOE60110299 | [2] | Washer | |
| 16 | VOE14881236 | [2] | Clamp | |
| 17 | SA9425-51041 | [4] | Flange | |
| 18 | VOE14880266 | [1] | Hose assembly | |
| 19 | VOE13949238 | [3] | O-ring | |
| 20 | VOE949240 | [1] | O-ring | |
| 21 | VOE955923 | [8] | Spring washer | |
| 22 | VOE955926 | [2] | Spring washer | |
| 23 | VOE946329 | [4] | Flange screw | SER NO 10001-10043 |
| VOE60113094 | [4] | Flange screw | SER NO 10044- | |
| 24 | VOE978941 | [2] | Hexagon screw | |
| 25 | VOE946441 | [4] | Flange screw | |
| 26 | VOE997410 | [2] | Hexagon nut | |
| 27 | VOE997439 | [4] | Hexagon screw | |
| 28 | VOE14516252 | [1] | Pipe | |
| 29 | VOE11109241 | [5] | Clamp | |
| 30 | VOE14512381 | [2] | Clamp | |
| 31 | VOE13949239 | [1] | O-ring | |
| 32 | VOE955922 | [12] | Spring washer | |
| 33 | VOE997437 | [4] | Hexagon screw | |
| 34 | SA9412-11060 | [1] | Connector | |
| 35 | VOE983527 | [1] | O-ring | |
| 36 | VOE983252 | [4] | Hexagon screw |
Hydraulic pump and valve parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
