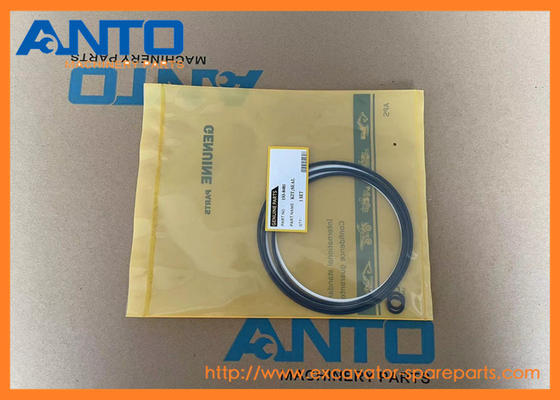

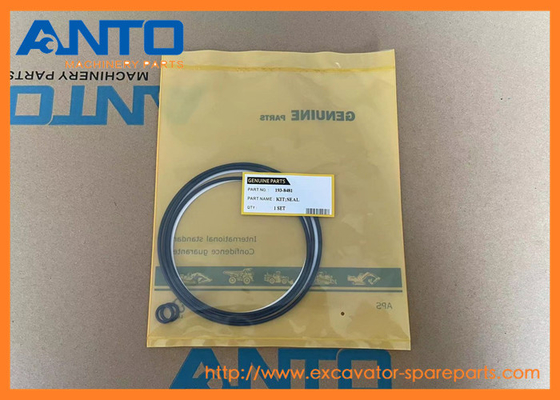

193-8481 1938481 Seal Kit Excavator Swing Motor Parts For 3024 E304.5 E305.5

193-8481 1938481 Seal Kit Excavator Swing Motor Parts For 3024 E304.5 E305.5
193-8481 1938481 Seal Kit Excavator Swing Motor Parts For 3024 E304.5 E305.5 193-8481 1938481 Seal Kit Excavator Swing Motor Parts For 3024 E304.5 E305.5

Large Image :  193-8481 1938481 Seal Kit Excavator Swing Motor Parts For 3024 E304.5 E305.5

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 193-8481 1938481
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability: 100-2000
Detailed Product Description
Category: Swing Motor Machine Model: E304.5 E305.5 E306
Product Name: Seal Kit Application: Mini Hydraulic Excavator
Part Number: 193-8481 1938481 Packing: Standard Export Carton
Highlight:

E305.5 Seal Kit

,

193-8481 Seal Kit

,

Excavator Swing Motor Seal Kit

  • 193-8481 1938481 Seal Kit Excavator Swing Motor Parts Fit For 3024 E304.5 E305.5





  • Specification
Application Mini Hydraulic Excavator
Name Seal Kit
Parts No 193-8481 1938481
Machine Model E304.5 E305.5 E306
Category Swing Motor
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing





  • Compatible models

MINI HYD EXCAVATOR 304.5 305.5 306 Cater.pillar.





  • More other kit fit for C A T machine
3393014 KIT-FRONT GEAR
232B, 242B, 247B, 3011C, 3013, 3013C, 3014, 3024, 3024C, 303.5, 304.5, C1.1, C1.5, C2.2, CB-214E, CB-334E

1552265 KIT-CONNECTING PLUG
216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D, 267, 267B,...

1028806 KIT-RECEPTACLE
216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D, 267, 267B,...

1288614 KIT-SEAL
120H, 120H ES, 120H NA, 135H, 135H NA, 216, 216B, 216B3, 226B, 226B3, 232B, 236, 236B, 236B3, 242B, 242B3, 246C, 247B, 247B3, 252B, 252B3, 256C, 257B, 257B3, 259B3, 262C, 262C2, 267B, 268B, 272C, 277C...

1214480 KIT-WATER BASE
120H, 120H ES, 120H NA, 135H, 135H NA, 216, 216B, 216B3, 226B, 226B3, 228, 232B, 236, 242B, 247, 247B, 247B3, 248, 257B, 267, 30/30, 301.5, 301.6C, 301.7D, 301.7D CR, 302.2D, 302.4D, 302.5, 302.5C, 30...

1541203 KIT-CRANKSHAFT BEARING
216, 216B, 226B, 232B, 242B, 247B, 257B, 3014, 3024, 3024C, 304.5, 902, C2.2, CB-334D, CB-334E, CB-335D

1648900 KIT-GASKET
3014, 3024, 304.5, 902

1934321 KIT-SEAL
304.5

1991149 KIT-SEAL
305, 305.5, 306

1536093 KIT-BARREL
304.5, 305.5, 306

1938478 KIT-MOTOR HEAD
304.5, 305.5, 306

1536090 KIT-CARRIER
304.5, 305.5, 306





  • Catalog parts list
Pos. Part No Qty Parts name Comments
2 193-8427 H [1] HOUSING
3 193-8428 J [1] CARRIER
4 193-8429 L [1] CARRIER
5 193-8430 H [1] PINION
6 193-8431 H [1] GEAR
7 193-8432 J [4] GEAR
8 193-8433 L [3] GEAR
9 193-8434 L [1] GEAR
11 193-8436 J [4] PIN
12 193-8437 L [3] PIN
13 193-8438 H [1] RING
15 193-8440 H [2] COLLAR
16 193-8441 H [1] BEARING
17 193-8442 H [1] BEARING
18 193-8443 J [96] ROLLER
19 193-8444 L [48] ROLLER
20 193-8445 J [4] WASHER
21 193-8446 J [4] WASHER
22 193-8447 L [6] WASHER
23 6V-5200 L [1] RING-RETAINING
24 6V-7644 J [4] RING-RETAINING
25 095-0919 L [3] RING-RETAINING
26 8C-3347 J [4] PIN-ROLL
27 096-8055 L [3] PIN-SPRING
28 193-8448 H [2] PIN
29 193-8449 H [1] SEAL
34 193-8452 S [1] BARREL
35 193-8453 S [1] PLATE
36 193-8454 S [9] PISTON
37 193-8455 S [9] SHOE
38 193-8456 S [1] RETAINER
39 193-8457 S [1] RETAINER
40 193-8458 T [1] PLATE
41 193-8459 S [2] RETAINER
42 193-8460 S [3] PIN
44 193-8462 S [1] SPRING
46 193-8464 P [1] BEARING
47 095-1721 U [1] SEAL-O-RING
48 8T-9597 S [1] RING-RETAINING
50 7X-0794 P [1] PIN (ROLL)
52 193-8467 T [1] PIN
53 095-1717 U [1] SEAL-O-RING
54 095-1719 U [1] SEAL-O-RING
55 193-8468 U [1] RING-BACKUP
56 193-8469 U [1] RING-BACKUP
57 193-8470 P [1] BODY
58 193-8471 P [2] VALVE
59 193-8472 P [2] PLUG
60 193-8473 P [2] SPRING
61 095-1579 P [2] SEAL-O-RING
63 095-1582 V [2] SEAL-O-RING
64 8T-0211 V [2] SEAL-O-RING
65 095-1590 V [2] SEAL-O-RING
66 095-1595 V [2] SEAL-O-RING
67 095-1781 V [4] RING
      AVAILABLE REPAIR KIT(S):
  153-6091 H [1] KIT-PINION
  153-6089 J [1] KIT-CARRIER
  153-6090 L [1] KIT-CARRIER
  193-8478 P [1] KIT-MOTOR HEAD
  153-6093 S [1] KIT-BARREL
  153-6094 T [1] KIT-PLATE
  193-8481 U [1] KIT-SEAL (SWING MOTOR)(MOTOR)
  193-8482 V [1] KIT-SEAL (VALVE)
  H   KIT MARKED H INCLUDES PART(S) MARKED H
  J   KIT MARKED J INCLUDES PART(S) MARKED J
  L   KIT MARKED L INCLUDES PART(S) MARKED L
  P   KIT MARKED P INCLUDES PART(S) MARKED P
  S   KIT MARKED S INCLUDES PART(S) MARKED S
  T   KIT MARKED T INCLUDES PART(S) MARKED T
  U   KIT MARKED U INCLUDES PART(S) MARKED U
  V   KIT MARKED V INCLUDES PART(S) MARKED V

193-8481 1938481 Seal Kit Excavator Swing Motor Parts For 3024 E304.5 E305.5 0







  • We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Advantage



1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service







  • Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
