| Application |
KOMATSU excavator engine parts |
| Name |

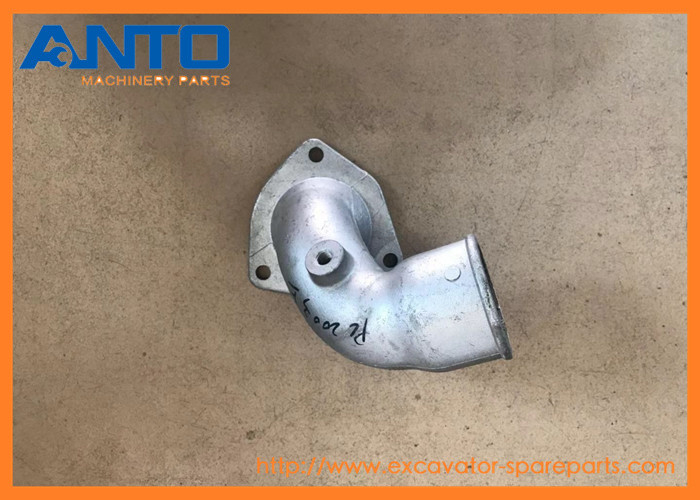

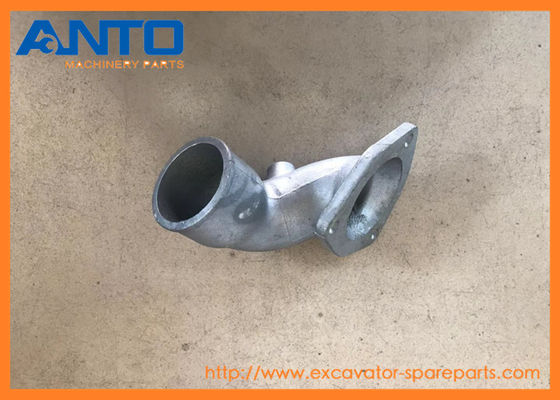

Water connector |
| Parts No |
6136116510 6136-11-6510 |
| Model |
4D105 6D105 S6D105 |
| Delivery time |
Stock for urgent delivery |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Design |
made in china |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT Express |
| Packing |
As request or standard packing |
ENGINES 4D105 6D105 S6D105 Komatsu
- More connector parts to KOMATSU machine
| SD4215-01300X0 CONNECTOR ASSEMBLY |
| 6D105, 6D125, 6D125E, 6D140, 6D95L, GD605A, HM300, HM350, HM400, S6D105, S6D108, S6D108E, S6D110, S6D125, S6D125E, S6D140, SAA6D125E, SAA6D140E, WA470 |
| |
| 6136-11-4550 CONNECTOR |
| 6D105 |
| |
| 6151-11-8650 CONNECTOR |
| 6D125, 6D125E, S6D125, S6D125E |
| |
| 6162-15-4350 CONNECTOR |
| SAA6D170E, WA700 |
| |
| 411-44-11670 CONNECTOR |
| HD200D, HD320, HD325, HD460, HD465, HD785, HD985, WS23S |
| |
| 281-35-19590 CONNECTOR |
| HD1200, HD200, HD255, HD320, HD325, HD405, HD465, HD605, HD785 |
| |
| 6151-11-5890 CONNECTOR |
| S6D125 |
| |
| 6732-61-6361 CONNECTOR |
| S4D102E, S6D102E, SAA4D102E |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
6134-61-1610 |
[1] |
WATER PUMP ASS'Y Komatsu China |
|
| |
["SN: 151749-UP"] analogs:["RM6134611610"] |$0. |
| 1. |
6134-61-1140 |
[1] |
BODY Komatsu China |
|
| |
["SN: 151749-UP"] |
| 2. |
6134-61-1320 |
[1] |
SHAFT Komatsu |
0.7 kg. |
| |
["SN: 151749-UP"] |
| 3. |
6134-61-1330 |
[1] |
IMPELLER Komatsu |
0.6 kg. |
| |
["SN: 151749-UP"] |
| 4. |
6610-61-1512 |
[1] |
SEAL, WATER (K2) Komatsu |
0.03 kg. |
| |
["SN: 151749-UP"] analogs:["6610611520"] |
| 5. |
6676-62-1141 |
[1] |
BEARING,BALL Komatsu |
0.133 kg. |
| |
["SN: 151749-UP"] analogs:["0600706205"] |
| 6. |
6131-62-1230 |
[1] |
SPACER Komatsu |
0.175 kg. |
| |
["SN: 151749-UP"] |
| 7. |
6130-62-1520 |
[1] |
BEARING,BALL Komatsu |
0.396 kg. |
| |
["SN: 151749-UP"] |
| 8. |
6676-62-1120 |
[1] |
RING,SNAP Komatsu China |
|
| |
["SN: 151749-UP"] analogs:["6600011120"] |
| 9. |
6134-61-3430 |
[1] |
PULLEY Komatsu China |
|
| |
["SN: 151749-UP"] |
| 10. |
01839-01821 |
[1] |
NUT Komatsu China |
|
| |
["SN: 151749-UP"] analogs:["6110631390", "6112631391", "6112631390"] |
| 11. |
01643-31845 |
[1] |
WASHER Komatsu China |
0.02 kg. |
| |
["SN: 151749-UP"] analogs:["0164321845", "R0164331845"] |
| 12. |
6134-61-1120 |
[1] |
COVER Komatsu China |
|
| |
["SN: 151749-UP"] |
| 13. |
6140-61-1160 |
[1] |
O-RING (K2) Komatsu |
0.005 kg. |
| |
["SN: 151749-UP"] |
| 14. |
6140-61-1170 |
[1] |
RING,SNAP Komatsu |
0.1 kg. |
| |
["SN: 151749-UP"] |
| 15 |
6136-61-1811 |
[1] |
GASKET (K2) Komatsu |
0.02 kg. |
| |
["SN: 151749-UP"] analogs:["6136611820"] |
| 16 |
01010-31050 |
[4] |
BOLT Komatsu |
0.042 kg. |
| |
["SN: 151749-UP"] analogs:["01010E1050"] |
| 17 |
01602-01030 |
[4] |
WASHER,SPRING Komatsu |
0.004 kg. |
| |
["SN: 151749-UP"] analogs:["0160211030"] |
| 18 |
6136-61-6111 |
[1] |
NIPPLE Komatsu China |
|
| |
["SN: 151749-UP"] analogs:["6136616110"] |
| 19 |
6136-61-6120 |
[1] |
HOSE Komatsu |
0.13 kg. |
| |
["SN: 151749-UP"] |
| 20 |
07281-00489 |
[2] |
CLAMP Komatsu |
0.035 kg. |
| |
["SN: 151749-UP"] analogs:["802660010"] |
| 21 |
6136-11-6411 |
[1] |
HOUSING Komatsu |
0.55 kg. |
| |
["SN: 151749-UP"] |
| 22 |
07042-20108 |
[1] |
PLUG Komatsu |
0.008 kg. |
| |
["SN: 151749-UP"] analogs:["0704230108"] |
| 23 |
600-815-3580 |
[1] |
SWITCH,THERMO Komatsu China |
|
| |
["SN: 151749-UP"] analogs:["6008153581"] |
| 24 |
198-06-11940 |
[1] |
SENSOR Komatsu |
0.034 kg. |
| |
["SN: 151749-UP"] |
| 25 |
6136-11-6821 |
[1] |
GASKET (K1) Komatsu |
0.01 kg. |
| |
["SN: 151749-UP"] analogs:["6136116840"] |
| 26 |
01010-31035 |
[2] |
BOLT Komatsu |
0.033 kg. |
| |
["SN: 151749-UP"] analogs:["01010E1035", "0101061035"] |
| 28 |
01640-01016 |
[2] |
WASHER Komatsu |
0.177 kg. |
| |
["SN: 151749-UP"] analogs:["0164021016", "0164221016", "0164201016"] |
| 29 |
600-421-6210 |
[1] |
THERMOSTAT Komatsu |
0.22 kg. |
| |
["SN: 151749-UP"] |
| 30 |
6136-11-6510 |
[1] |
CONNECTOR Komatsu |
0.215 kg. |
| |
["SN: 151749-UP"] |
| 31 |
6136-11-6810 |
[1] |
GASKET (K1) Komatsu |
0.01 kg. |
| |
["SN: 151749-UP"] |
| 32 |
01010-30830 |
[3] |
BOLT Komatsu |
0.017 kg. |
| |
["SN: 151749-UP"] analogs:["01010E0830"] |
| 33 |
01602-00825 |
[3] |
WASHER,SPRING Komatsu |
0.004 kg. |
| |
["SN: 151749-UP"] analogs:["0160220825", "0231011020", "6124613790"] |
| 34 |
01640-00816 |
[3] |
WASHER Komatsu |
0.002 kg. |
| |
["SN: 151749-UP"] analogs:["0164020816"] |
| 35 |
600-625-0580 |
[1] |
FAN Komatsu China |
|
| |
["SN: 151749-UP"] |
| 36 |
6131-62-3310 |
[1] |
PLATE Komatsu |
0.19 kg. |
| |
["SN: 151749-UP"] |
| 37 |
01010-51020 |
[6] |
BOLT Komatsu |
0.161 kg. |
| |
["SN: 151749-UP"] analogs:["0101081020", "801014093", "801015108"] |
| 38 |
01602-21030 |
[6] |
WASHER,SPRING Komatsu |
0.004 kg. |
| |
["SN: 151749-UP"] analogs:["YM22217100000"] |
| 39 |
04121-21751 |
[1] |
V-BELT SET Komatsu |
0.572 kg. |
| |
["SN: 151749-UP"] |
| 39 |
04121-21750 |
[1] |
V-BELT SET,(TROPICAL SANDY, DUSTY SPEC.) Komatsu |
0.562 kg. |
| |
["SN: 151749-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
