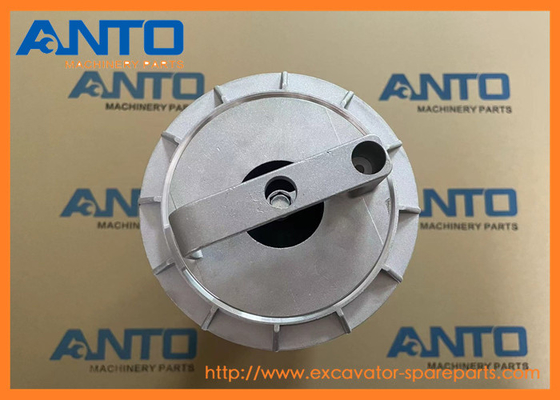

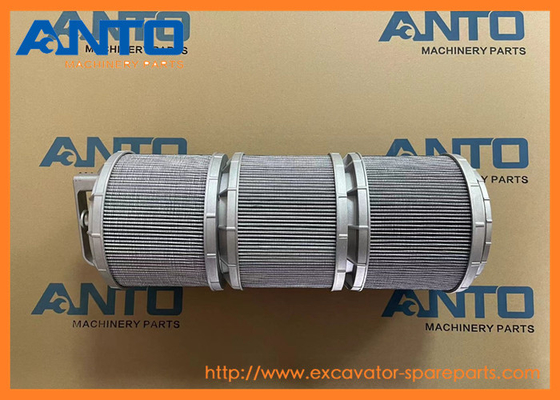

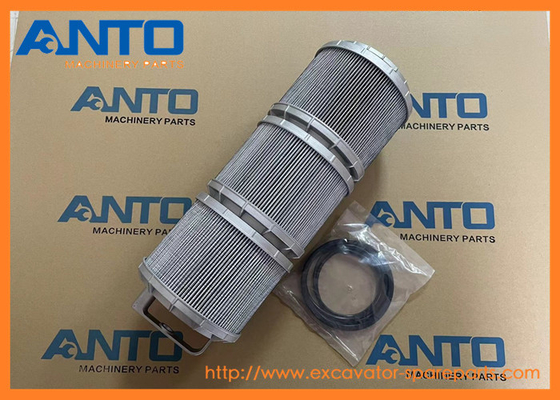

- LS52V01002F5 LS52V01006F1 Hydraulic Oil Filter KOBELCO Excavator Engine Parts For SK485-9
| Application |
Excavator |
| Parts No |
LS52V01002F5 LS52V01006F1 |
| Machine Model |
SK330-8 SK350-8 SK485-9 |
| Category |
Tank & Filter GP-Hydraulic |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
HEAVY EQUIPMENT SK485-9 SK485LC-9 Kobelco
- More other hydraulic oil filter parts fit for KOBELCO machine
| 4I3950 FILTER-OIL |
| 24H, 350, 375, 375 L, 5080, 5110B, 5130, 5130B, 5230 |
| |
| 1454758 FILTER ELEMENT-CAB AIR |
| 5130B, 5230, 5230B |
| |
| 4C6860 FILTER ELEMENT AS-OIL |
| 143H, 163H NA, 24H, 5110B, 5130B, 5230B |
| |
| 7T1890 FILTER ELEMENT-CAB AIR |
| D10N, D10R, D11N, D11R, D8L, D9L, D9N, D9R |
| |
| 1752832 FILTER ELEMENT-CAB AIR |
| D10R, D11R, D9R |
| |
| 1752839 FILTER ELEMENT-CAB AIR |
| D10R, D11R, D9R |
| |
| 1547108 FILTER ELEMENT AS-CAB AIR |
| 24H, D10R, D11R, D9R |
| |
| 1114402 FILTER-FOAM |
| D10N, D10R, D10T, D11N, D11R, D11T, D9N, D9R, D9T |
| |
| 1651689 FILTER ELEMENT AS-AIR |
| D8L, D9N, D9R |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| .. |
LC52V01002R210 |
[1] |
SERVICE KIT |
KOB Consists Of Item: 13(1), 14(1), 16(3), 19(1) |
| .. |
LS52V01006R100 |
[1] |
REPAIR KIT |
KOB Incl 13, 16, Start Serial: 01-feb-2013 |
| 1 |
LS33H00062F1 |
[1] |
TANK |
KOB Assembly, Hydraulic Tank |
| 2 |
YN33H01259P2 |
[1] |
COVER |
KOB |
| 3 |
LS33H01148P1 |
[1] |
COVER |
KOB |
| 4 |
LS50V00008F1 |
[1] |
HYDRAULIC OIL FILTER |
SM Suction, Incl 4-1 - 4-5 |
| 4-1. |
LS50V00007S001 |
[1] |
ELEMENT |
SM Not Illustrated |
| 4-2. |
2446R176S02 |
[1] |
GUIDE |
KOB Not Illustrated Superseded by part number: 2446R110S2 |
| 4-3. |
WA50V00002S003 |
[1] |
SCREW |
SM Not Illustrated Superseded by part number: LS50V00007S003 |
| 4-4. |
ZN16C10008 |
[2] |
NUT |
KOB Not Illustrated Superseded by part number: ZN18C10008 |
| 4-5. |
2446R176S05 |
[1] |
SPRING |
KOB Not Illustrated Superseded by part number: 2446R110S6 |
| 5 |
YN57V00004F1 |
[1] |
BREATHER |
KOB Assy., Includes Ref. 6-8, Years: -17-JAN-14 Superseded by part number: YN57V00010F1 |
| 5 |
YN57V00010F1 |
[1] |
BREATHER |
KOB , Start Year: 17-JAN-14 |
| 6 |
YN57V00004S002 |
[1] |
ELEMENT |
KOB Filter, Years: -17-JAN-14 Superseded by part number: 47640920 |
| 6 |
YN57V00010S002 |
[1] |
ELEMENT |
KOB Filter, Start Year: 17-JAN-14 Superseded by part number: 47640920 |
| 7 |
2446U260S10 |
[1] |
NUT |
KOB |
| 7-1. |
YN57V00004S004 |
[2] |
SEAL |
KOB Not Illustrated - Located under Ref# 7 |
| 8 |
2446U260S8 |
[1] |
PACKING |
KOB |
| 9 |
YN58S00009F1 |
[1] |
GAUGE |
KOB Level, Oil |
| 10 |
LS52V01002F5 |
[1] |
HYDRAULIC OIL FILTER |
SM Filter, Includes Ref. 11-16 |
| 10 |
LS52V01006F1 |
[1] |
HYDRAULIC OIL FILTER |
KOB Filter, Incl 12, 15, 16, & Kit LS52V01006R100, Start Serial: 01-feb-2013 |
| 11 |
YN52V01008S002 |
[1] |
PLATE |
KOB |
| 12 |
LS21V00006P1 |
[1] |
CHECK VALVE |
KOB |
| 12 |
LS21V00010P1 |
[1] |
CHECK VALVE |
KOB , Start Serial: 01-feb-2013 |
| 13 |
ZD11G09000 |
[1] |
O-RING,89.40mm ID x 95.60mm OD x 3.10mm |
KOB |
| 14 |
YN52V01008S005 |
[1] |
PACKING |
KOB |
| 15 |
LC33H01009P1 |
[1] |
SPRING |
KOB |
| 16 |
YN52V01020P1 |
[3] |
ELEMENT |
KOB Element Superseded by part number: YN52V01021P1 |
| 16 |
LS52V01007P1 |
[1] |
HYDRAULIC OIL FILTER |
KOB Element, Start Serial: 01-feb-2013 |
| 17 |
ZE72X08000 |
[1] |
PLUG |
KOB |
| 18 |
ZM73C10025 |
[12] |
BOLT,M10x25mm - Course Thread |
KOB Sems |
| 19 |
ZD11G19000 |
[1] |
O-RING,189.30mm ID x 200.70mm OD x 5.70mm |
KOB |
| 20 |
ZD11G22000 |
[1] |
O-RING,5.7mm Thk x 219.3mm ID, 70 Duro |
KOB |
| 21 |
ZS28C06016 |
[4] |
SCREW,Hex Socket Head, M6 x 16mm |
KOB Cap |
| 22 |
ZW26K06000 |
[4] |
LOCK WASHER |
KOB |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
