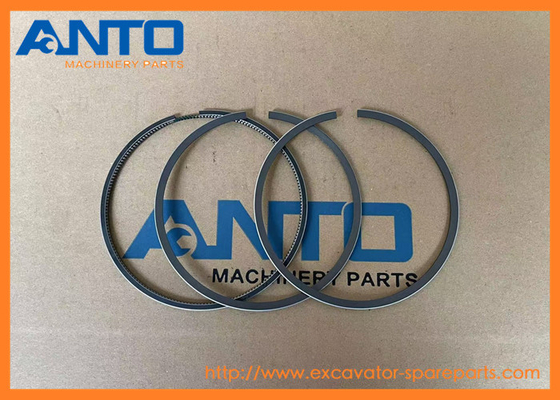

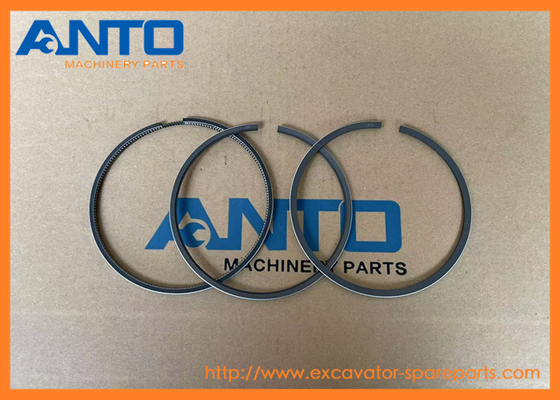

- 6251-31-2030 6251312030 Piston Ring Fitting For Excavator KOMATSU PC400 PC450
| Category |
KOMATSU Engine Parts |
| Name |
Piston ring |
| Parts No |
6251-31-2030 6251312030 |
| Machine Model |
PC400 PC450 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
DUMP TRUCKS HM300
ENGINES SAA6D125E
EXCAVATORS PC400 PC450
WHEEL LOADERS WA470 WA480 Komatsu
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
6251-31-2510 |
[6] |
Piston Komatsu |
3.14 kg. |
| |
["SN: 560004-UP"] |
| 2 |
6151-31-2410 |
[6] |
Pin, Piston Komatsu China |
1.108 kg. |
| |
["SN: 560004-UP"] |
| 3 |
04065-04818 |
[12] |
Ring, Snap, Snap Komatsu OEM |
0.007 kg. |
| |
["SN: 560004-UP"] |
| |
6251-31-2030 |
[6] |
Ring Assembly, Piston Komatsu |
0.1 kg. |
| |
["SN: 560004-UP"] |3. |
| 4. |
6251-31-2210 |
[1] |
Ring, Top Komatsu |
0.1 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6251312030"] |
| 5. |
6251-31-2220 |
[1] |
Ring, Second Komatsu |
0.1 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6251312030"] |
| 6. |
6251-31-2230 |
[1] |
Ring, Oil Komatsu |
0.1 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6251312030"] |
| |
6251-31-3100 |
[6] |
Rod Assembly, Connecting Komatsu |
4.072 kg. |
| |
["SN: 560004-UP"] |6. |
| 7. |
6151-31-3111 |
[1] |
Rod, Connecting Komatsu OEM |
4.04 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151313101", "6151313100", "6151313110"] |
| 8. |
6150-31-3120 |
[1] |
Cap, Connecting Rod Komatsu China |
|
| |
["SN: 560004-UP", "SCC: C1"] |
| 9. |
6251-31-3130 |
[1] |
Bushing Komatsu |
0.166 kg. |
| |
["SN: 560004-UP"] |
| 10. |
6150-31-3310 |
[2] |
Bolt Komatsu OEM |
0.13 kg. |
| |
["SN: 560004-UP"] |
| 11. |
02400-10413 |
[2] |
Pin, Dowel Komatsu |
0.004 kg. |
| |
["SN: 560004-UP"] analogs:["0240020413"] |
| 12 |
6151-31-3050 |
[6] |
Metal Assembly, Standard Komatsu |
0.23 kg. |
| |
["SN: 560004-UP"] |
| |
6152-31-3530 |
[1] |
Metal, Upper Standard Komatsu China |
|
| |
["SN: 560004-UP", "SCC: C1"] |12. |
| |
6151-31-3440 |
[1] |
Metal, Lower Standard Komatsu China |
|
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151313420"] |12. |
| |
6151-39-3050 |
[6] |
Metal Assembly, Undersize 0.25mm Komatsu China |
|
| |
["SN: 560004-UP"] analogs:["6152393510"] |12. |
| |
6152-39-3510 |
[1] |
Metal, Upper Undersize 0.25mm Komatsu China |
|
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151393050"] |12. |
| |
6151-39-3440 |
[1] |
Metal, Lower Undersize 0.25mm Komatsu OEM |
1.5 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151393040"] |12. |
| |
6151-38-3050 |
[6] |
Metal Assembly, Undersize 0.50mm Komatsu China |
|
| |
["SN: 560004-UP"] analogs:["6152383510"] |12. |
| |
6152-38-3510 |
[1] |
Metal, Upper Undersize 0.50mm Komatsu China |
|
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151383050"] |12. |
| |
6151-38-3440 |
[1] |
Metal, Lower Undersize 0.50mm Komatsu China |
0.252 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151383040"] |12. |
| |
6151-37-3050 |
[6] |
Metal Assembly, Undersize 0.75mm Komatsu China |
|
| |
["SN: 560004-UP"] analogs:["6152373510"] |12. |
| |
6152-37-3510 |
[1] |
Metal, Upper Undersize 0.75mm Komatsu China |
|
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151373050"] |12. |
| |
6151-37-3440 |
[1] |
Metal, Lower Undersize 0.75mm Komatsu |
0.304 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151373040"] |12. |
| |
6151-36-3050 |
[6] |
Metal Assembly, Undersize 1.00mm Komatsu |
0.27 kg. |
| |
["SN: 560004-UP"] |12. |
| |
6152-36-3510 |
[1] |
Metal, Upper Undersize 1.00mm Komatsu |
0.27 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151363050"] |12. |
| |
6151-36-3440 |
[1] |
Metal, Lower Undersize 1.00mm Komatsu OEM |
0.26 kg. |
| |
["SN: 560004-UP", "SCC: C1"] analogs:["6151363040"] |12. |
- More other piston parts applied to KOMASTU equipment
| 708-2L-28540 PISTON |
| AIR, D155A, D155AX, D375A, D475A, D475ASD, D65EX, D65PX, D65WX, HYDRAULIC, PC130, PC138, PC138US, PC160, PC190, PC200, PC220, PC228, PC228US, PC270, PC300, PC350, PC400, PC450, PRESSURE, RAIN, WA500, ... |
| |
| 421-33-31320 PISTON |
| WA450, WA470, WA480 |
| |
| 425-43-27290 PISTON |
| HM250, HM300, HM300TN, HM350, HM400, WA500, WD500, WF550, WF550T |
| |
| 56D-33-11120 PISTON |
| HM250, HM300, HM300TN |
| |
| 421-33-31331 PISTON |
| WA470, WA480 |
| |
| 714-16-12660 PISTON,1ST AND 3RD |
| WA300, WA320, WA470, WA480 |
| |
| 6251-31-2510 PISTON |
| HM300, PC400, PC450, SAA6D125E, WA470, WA480 |
| |
| 708-2H-03022 PISTON ASS'Y,SERVO |
| BR580JG, PC400, PC450, PC550, WA1200 |
| |
| 500468651 PISTON |
| WB91R, WB95R, WB98A |
| |
| 198-63-12160 PISTON |
| D455A |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
