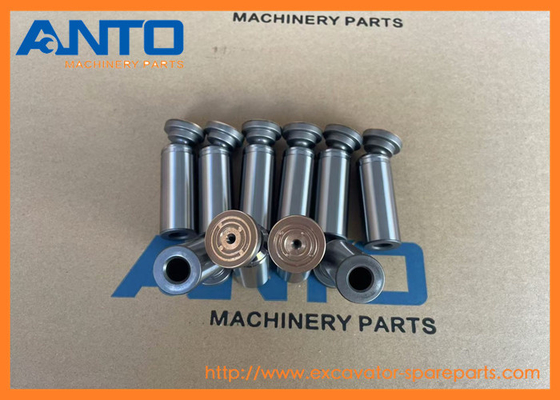

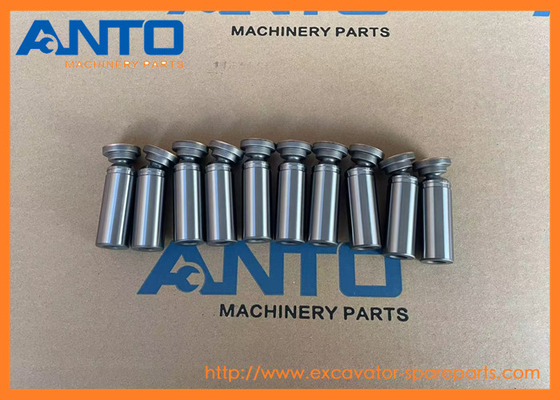

• 708-3T-13312 7083T13312 Piston Support For KOMATSU Excavator PC70 PC78MR PC78US PC78UU

• ​Specification

• Compatible models

EXCAVATORS PC70 PC78MR PC78US PC78UU PC88MR Komatsu

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	708-3T-00260	[1]	Pump Assembly Komatsu	67 kg.
			["SN: 5001-5431", "SCC: A2"] |$0.
	708-3T-04210	[1]	Block Assembly Komatsu	4.08 kg.
			["SN: 5001-@"] |$1.
3	708-1W-23130	[2]	Seat Komatsu	0.016 kg.
			["SN: 5001-@", "SCC: C2"]
4	708-3T-13150	[1]	Spring Komatsu China
			["SN: 5001-@", "SCC: C2"]
5	04065-04218	[1]	Ring, Snap Komatsu	0.005 kg.
			["SN: 5001-@", "SCC: C2"]
6	708-3T-13351	[1]	Guide, Retainer Komatsu China
			["SN: 5001-@", "SCC: C2"]
7	708-3T-13360	[3]	Pin Komatsu	0.006 kg.
			["SN: 5001-@", "SCC: C2"]
8	708-3T-13340	[1]	Retainer, Shoe Komatsu China
			["SN: 5001-@", "SCC: C2"]
9	708-3T-13312	[10]	Piston Subassembly Komatsu	0.15 kg.
			["SN: 5001-@", "SCC: C2"]
	708-3T-04220	[1]	Flange Assembly Komatsu China
			["SN: 5001-5431"] |$11.
12	708-3T-13421	[2]	Ball Komatsu	0.42 kg.
			["SN: 5001-5431", "SCC: C2"]
13	708-3T-13412	[1]	Cam, Rocker Komatsu China
			["SN: 5001-@", "SCC: C2"]
14	708-3T-13451	[1]	Stud Komatsu China
			["SN: 5001-@", "SCC: C2"] analogs:["7083T13450"]
15	04020-01024	[1]	Pin, Dowel Komatsu	0.015 kg.
			["SN: 5001-@", "SCC: C2"] analogs:["PZF890001197"]
16	01252-61235	[8]	Bolt, Hexagon Socket Head Komatsu	0.048 kg.
			["SN: 5001-@"] analogs:["801105554", "0125231235"]
17	07000-B2012	[1]	O-ring Komatsu China	0.001 kg.
			["SN: 5001-@"]
18	708-7T-51210	[1]	O-ring Komatsu	0.01 kg.
			["SN: 5001-@"]
19	708-3T-14222	[2]	Plug Komatsu China
			["SN: 5001-5431"]
20	07000-12010	[2]	O-ring Komatsu	0.001 kg.
			["SN: 5001-@"] analogs:["YM24311240100", "0700002010"]
21	01643-51232	[2]	Washer Komatsu	0.024 kg.
			["SN: 5001-@"]
22	01582-11210	[2]	Nut Komatsu	0.015 kg.
			["SN: 5001-@"]
23	708-3T-14114	[2]	Piston Subassembly Komatsu	0.112 kg.
			["SN: 5001-5431", "SCC: C2"]
24	708-3T-14120	[2]	Spring Komatsu	0.002 kg.
			["SN: 5001-@", "SCC: C2"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

• Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
