Product Details:
Payment & Shipping Terms:
|
| Category: | Engine Parts | Machine Model: | WA500 HM350 HM400 |
|---|---|---|---|
| Application: | Wheel Loader | Product Name: | Fuel Injection Pump |
| Part Number: | 6261-71-1111 6261-71-1110 ND094100-0472 | Packing: | Standard Export Carton |

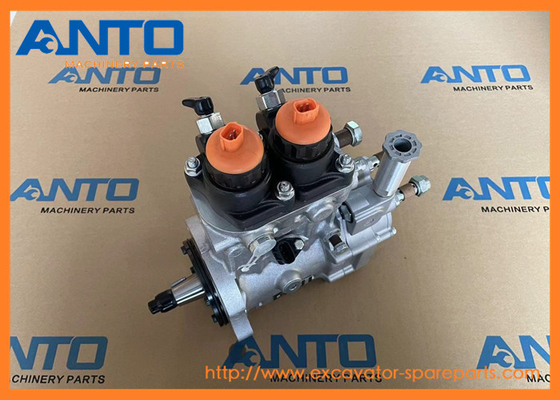

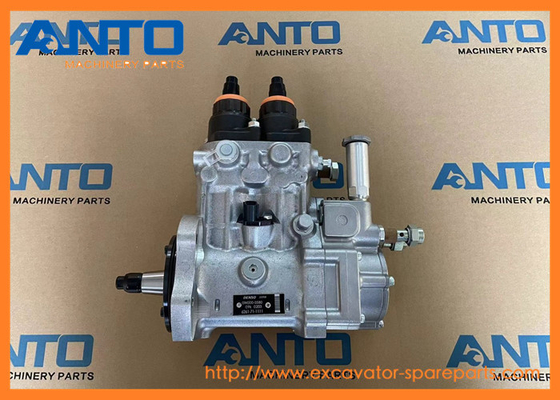

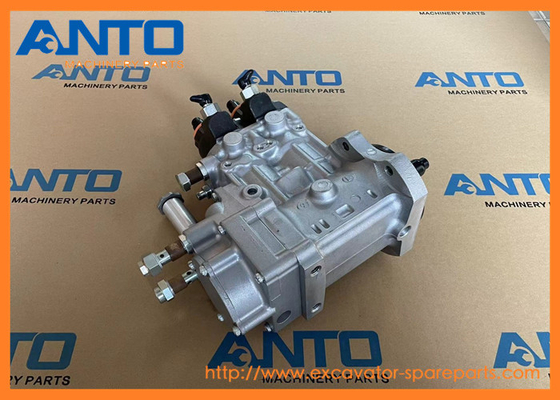

| Name | Fuel Injection Pump |
| Parts No | 6261-71-1111 6261-71-1110 ND094100-0472 |
| Machine Model | WA500 HM350 HM400 |
| Category | Engine Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
DUMP TRUCKS HM350 HM400
WHEEL LOADERS WA500 Komatsu
| 708-1T-01461 PUMP SUB ASS'Y |
| HYDRAULIC, WA500 |
| 708-1T-00460 PUMP ASSEMBLY, FAN |
| HYDRAULIC, WA500 |
| 56D-61-24380 PUMP |
| HM250, HM300, HM350, HM400 |
| 705-95-05110 PUMP ASS'Y,RETARDER COOLING PUMP |
| HM400 |
| 6261-61-1201 PUMP ASSEMBLY, WATER |
| HM350, HM400, SAA6D140E |
| 6261-61-1200 PUMP ASSEMBLY, WATER |
| HM350, HM400, SAA6D140E |
| 708-1W-01731 PUMP SUBASSEMBLY |
| HYDRAULIC, WA500 |
| 708-1W-00952 PUMP ASSEMBLY, STEERING |
| HYDRAULIC, WA500 |
| 705-56-34710 PUMP ASSEMBLY, PPC (SAR112+28) |
| HYDRAULIC, WA500 |
| DK106067-8120 PUMP ASS'Y,(A) |
| S6D155, SA6D155 |
| 705-14-33540 PUMP ASS'Y,(SAR45) |
| HD255, WA400, WA420 |
| 705-62-21530 PUMP ASS'Y,(RAL 10) |
| PC20, PC30 |
| 705-41-05880 Pump Assembly, SBR 8 |
| HM400 |
| 705-56-44001 PUMP ASS'Y,(SAR250+125+20) |
| WA600 |
| 704-32-30020 PUMP ASS'Y |
| WA800, WA900 |
| 708-1G-01041 PUMP SUB ASS'Y |
| WA600, WD600 |
| 705-41-05060 PUMP ASS'Y (SBR8) |
| PC12UU, PC28UD, PC28UG, PC28UU |
| 705-12-48210 PUMP ASS'Y,(SAR250) |
| WA600 |
| 705-12-48211 PUMP ASS'Y,(SAR250) |
| WA600 |
| Pos. | Part No | Qty | Parts name | Comments |
| 6261-71-1111 | [1] | PUMP ASSEMBLY, FUEL SUPPLY Komatsu | 16 kg. | |
| analogs:["6261711110", "ND0941000472"] |$0. | ||||
| ND094100-0472 | [1] | BODY ASSEMBLY Komatsu | 16 kg. | |
| analogs:["6261711110", "6261711111"] |$1. | ||||
| 1 | ND094110-0230 | [1] | HOUSING ASSEMBLY Komatsu China | |
| 2 | ND094040-0380 | [2] | PCV ELEMENT ASSEMBLY Komatsu | 0.000 kg. |
| analogs:["ND0940400280", "ND0940400381"] | ||||
| 3 | ND094086-0090 | [2] | O-RING Komatsu | 0.001 kg. |
| 4 | ND094140-0040 | [2] | VALVE ASSEMBLY Komatsu | 0.025 kg. |
| analogs:["ND0941400021"] | ||||
| 5 | ND094086-0100 | [4] | O-RING Komatsu | 0.018 kg. |
| 6 | ND949013-5880 | [4] | WASHER Komatsu | 0.002 kg. |
| 7 | ND92156-08081 | [4] | NUT Komatsu China | |
| analogs:["RND9215608081"] | ||||
| 8 | ND094162-0031 | [2] | SEAT, UPPER SPRING Komatsu | 0.075 kg. |
| 9 | ND094164-0030 | [2] | SPRING, PLUNGER Komatsu | 0.112 kg. |
| 10 | ND094165-0031 | [2] | SEAT, LOWER SPRING Komatsu | 0.01 kg. |
| 11 | ND094170-0110 | [2] | TAPPET ASSEMBLY Komatsu | 41.101 kg. |
| 12 | ND094191-0590 | [1] | CAMSHAFT Komatsu China | |
| 13 | ND949101-0250 | [2] | BEARING, ROLLER Komatsu | 0.000 kg. |
| 14 | ND094104-0160 | [1] | COVER, BEARING Komatsu China | |
| 15 | ND949150-3200 | [1] | SEAL, OIL Komatsu | 0.015 kg. |
| 16 | ND094086-0150 | [1] | O-RING Komatsu | 0.002 kg. |
| 17 | ND094095-0330 | [-2] | SHIM, 0.05 MM Komatsu | 0.01 kg. |
| N/I. | ND094095-0340 | [-2] | SHIM, 0.10 MM Komatsu | 0.01 kg. |
| N/I. | ND094095-0350 | [-2] | SHIM, 0.20 MM Komatsu | 0.006 kg. |
| N/I. | ND094095-0360 | [-2] | SHIM, 0.30 MM Komatsu | 0.02 kg. |
| N/I. | ND094095-0370 | [-2] | SHIM, 0.50 MM Komatsu | 0.02 kg. |
| 18 | ND094092-0010 | [4] | WASHER Komatsu | 0.001 kg. |
| 19 | ND949044-3320 | [4] | BOLT Komatsu | 0.006 kg. |
| 20 | ND094086-0160 | [1] | O-RING Komatsu | 0.001 kg. |
| 21 | ND094086-0170 | [1] | O-RING Komatsu | 0.01 kg. |
| 22 | ND094093-0090 | [-2] | SHIM, 0.40 MM Komatsu | 0.01 kg. |
| N/I. | ND094093-0100 | [-2] | SHIM, 0.60 MM Komatsu | 0.011 kg. |
| N/I. | ND094093-0110 | [-2] | SHIM, 0.80 MM Komatsu | 0.02 kg. |
| N/I. | ND094093-0120 | [-2] | SHIM, 1.00 MM Komatsu | 0.018 kg. |
| 23 | ND949979-1300 | [1] | SENSOR ASSEMBLY Komatsu | 0.042 kg. |
| N/I. | ND949140-6310 | [1] | O-RING Komatsu | 0.001 kg. |
| 24 | ND094096-0050 | [-2] | SHIM, 0.15 MM Komatsu | 0.001 kg. |
| N/I. | ND094096-0060 | [-2] | SHIM, 0.20 MM Komatsu | 0.001 kg. |
| N/I. | ND094096-0070 | [-2] | SHIM, 0.25 MM Komatsu | 0.001 kg. |
| N/I. | ND094096-0080 | [-2] | SHIM, 0.40 MM Komatsu | 0.002 kg. |
| 25 | ND90200-06081 | [1] | WASHER Komatsu China | |
| 26 | ND90107-06161 | [1] | BOLT Komatsu China | |
| 27 | ND090310-0500 | [1] | VALVE ASSEMBLY, OVERFLOW Komatsu | 0.081 kg. |
| 28 | ND090222-0070 | [5] | WASHER Komatsu | 0.003 kg. |
| 29 | ND949180-0310 | [1] | SCREW Komatsu | 0.044 kg. |
| 30 | ND090222-0120 | [2] | WASHER Komatsu | 0.002 kg. |
| 31 | ND949180-0060 | [1] | SCREW Komatsu | 0.012 kg. |
| 32 | ND949018-0350 | [1] | WASHER Komatsu | 0.003 kg. |
| 33 | ND090317-0480 | [1] | PLUG, SCREW Komatsu | 0.02 kg. |
| 34 | ND090207-0100 | [1] | RING Komatsu | 0.012 kg. |
| 35 | ND090244-0010 | [1] | SCREW Komatsu | 0.007 kg. |
| 36 | ND949010-3020 | [1] | WASHER Komatsu | 0.002 kg. |
| 37. | ND094086-0210 | [1] | O-RING Komatsu | 0.005 kg. |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
