Product Details:
Payment & Shipping Terms:
|
| Type: | KOMATSU Hydraulic Pump Parts | Part Name: | Steering Pump |
|---|---|---|---|
| Model Number: | WA380 WA430 | Part Number: | 708-1U-00171 708-1U-00170 7081U00140 |
| Packing: | Standard Export Carton | Warranty Time: | 6/12 MONTHS |
| Highlight: | 708-1U-00171 Steering Pump,WA380 Steering Pump,WA430 Steering Pump |
||

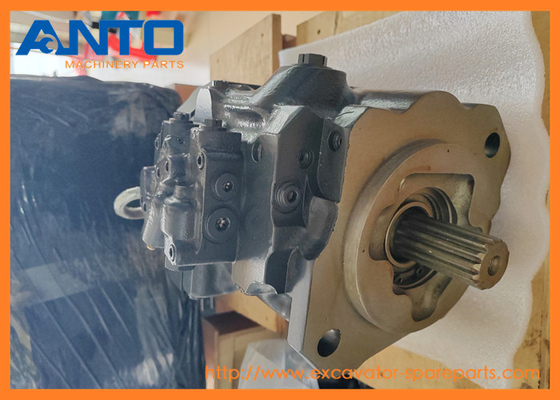

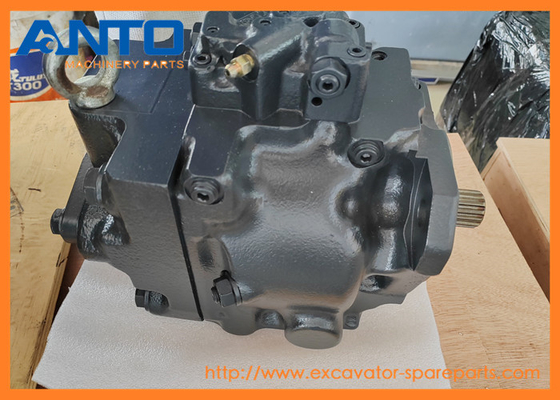

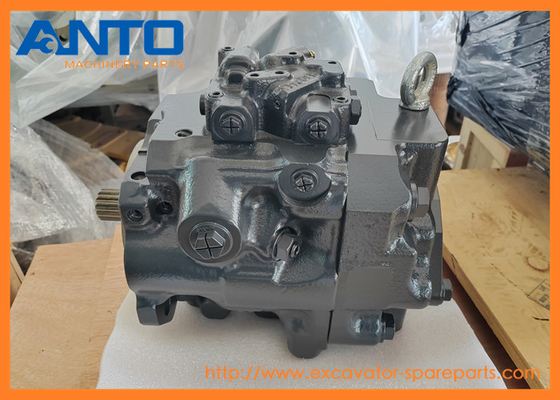

708-1U-00171 708-1U-00170 Steering Pump Assy For KOMATSU Wheel Loaders WA380 WA430
Specification
| Product name | Steering pump |
| Part number | 708-1U-00171 708-1U-00170 7081U00140 |
| Model | WA380 WA430 |
| Category group | Excavator KOMATSU Hydraulic Pump Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX TNT UPS EMS |
WHEEL LOADERS WA380 WA430 Komatsu
| KBB591A-10003 PUMP SEAL KIT |
| FB10/14EX, FB10/14EXF, FB10M, FB13M, FB15/18EX, FB15/18EXF, FB15/18EXG, FB15/18EXGF, FB15M, FB18M, FB20/25EX, FB20/25EXF, FB20/25EXG, FB20/25EXGF, FB20HB/25HB, FB30, FB30EX |
| 6754-71-1110 PUMP ASSEMBLY, FUEL INJECTION |
| D51EX/PX, PC220LL, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320PZ, WA380 |
| 708-25-01150 PUMP SUB ASS'Y |
| PC240 |
| DK104300-0500 PUMP ASS'Y |
| 2D94 |
| DK104300-0700 PUMP ASS'Y |
| 2D94 |
| 708-25-01054 PUMP ASS'Y |
| BP500, PC220 |
| 708-3M-01016 PUMP SUB ASS'Y |
| PC160 |
| 708-3M-01012 PUMP SUB ASS'Y |
| PC160 |
| DK101069-9420 PUMP ASS'Y |
| 6D95L, S6D95L |
| 708-2L-00260 PUMP ASS'Y,(SEE FIG. Y1600-01A0) |
| PC228, PC228US |
| 705-34-36240 PUMP ASS'Y,(SAR(3)63) |
| WA500, WD500, WF550, WF550T |
| DK103066-8390 PUMP ASS'Y |
| SA6D170 |
| KBB591A-10004 PUMP SEAL KIT |
| FB10/14EX, FB10/14EXF, FB10M, FB13M, FB15/18EX, FB15/18EXF, FB15/18EXG, FB15/18EXGF, FB15M, FB18M, FB20/25EX, FB20/25EXF, FB20/25EXG, FB20/25EXGF, FB20HB/25HB, FB30, FB31EX |
| 6754-71-1111 PUMP ASSEMBLY, FUEL INJECTION |
| D51EX/PX, PC220LL, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320PZ, WA381 |
| 708-25-01151 PUMP SUB ASS'Y |
| PC241 |
| DK104300-0501 PUMP ASS'Y |
| 2D95 |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
| Pos. | Part No | Qty | Parts name | Comments |
| 708-1U-00171 | [1] | Pump Assembly Komatsu | 38 kg. | |
| ["SN: 66395-UP"] analogs:["7081U00150", "7081U00151", "7081U00140", "7081U00120", "7081U00170", "R7081U00120", "R7081U00171", "7081U01151"] |$0. | ||||
| 708-1U-00170 | [1] | Pump Assembly Komatsu | 38 kg. | |
| ["SN: 66107-66394", "SCC: A2"] analogs:["7081U00150", "7081U00151", "7081U00140", "7081U00120", "7081U00171", "7081U01151"] |$1. | ||||
| 708-1U-01171 | [1] | Pump Subassembly Komatsu | 38 kg. | |
| ["SN: 66395-UP", "SCC: C2"] analogs:["7081U00150", "7081U00151", "7081U00140", "7081U00120", "7081U00170", "7081U00171", "7081U01151"] |$2. | ||||
| 708-1U-01170 | [1] | Pump Subassembly Komatsu China | ||
| ["SN: 66107-66394", "SCC: C2"] |$3. | ||||
| 708-1U-04210 | [1] | Case Assembly Komatsu | 0.000 kg. | |
| ["SN: 66107-UP", "SCC: C2"] |$4. | ||||
| 5 | 708-8E-16160 | [2] | Plug Komatsu | 0.01 kg. |
| ["SN: 65949-UP"] | ||||
| 6 | 07002-11023 | [2] | O-ring Komatsu China | 0.025 kg. |
| ["SN: 65949-UP"] analogs:["0700201023"] | ||||
| 7 | 07040-11409 | [1] | Plug Komatsu | 0.033 kg. |
| ["SN: 65949-UP"] | ||||
| 8 | 07002-11423 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 65949-UP"] analogs:["0700201423"] | ||||
| 9 | 706-73-42370 | [1] | O-ring Komatsu | 0.005 kg. |
| ["SN: 65949-UP", "SCC: C2"] | ||||
| 10 | 07000-B1009 | [1] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 65949-UP", "SCC: C2"] analogs:["7082L23910"] | ||||
| 11 | 708-1L-29340 | [1] | Orifice Komatsu | 0.001 kg. |
| ["SN: 66107-UP", "SCC: C2"] | ||||
| 12 | 04020-01024 | [1] | Pin, Dowel Komatsu | 0.015 kg. |
| ["SN: 65949-UP", "SCC: C2"] analogs:["PZF890001197"] | ||||
| 13 | 01010-61470 | [4] | Bolt Komatsu | 0.109 kg. |
| ["SN: 65949-UP", "SCC: C2"] analogs:["0101031470", "0101081470", "0101051470"] | ||||
| 14 | 01643-31445 | [4] | Washer, Flat Komatsu | 0.019 kg. |
| ["SN: 65949-UP", "SCC: C2"] analogs:["0164301432"] | ||||
| 14 | 708-1W-03930 | [1] | Plug Kit Komatsu China | |
| ["SN: 65949-UP", "SCC: C2"] | ||||
| 18 | 708-1U-11524 | [1] | Cap, End Komatsu China | |
| ["SN: 65949-UP", "SCC: C2"] | ||||
| 19 | 708-1W-42120 | [1] | Bearing Komatsu | 0.2 kg. |
| ["SN: 65949-UP", "SCC: C2"] | ||||
| 20 | 708-1U-13461 | [2] | Ball, Retainer Komatsu | 0.000 kg. |
| ["SN: 66107-UP", "SCC: C2"] | ||||
| 21 | 708-1U-13470 | [1] | Cam, Rocker Komatsu China | |
| ["SN: 66107-UP", "SCC: C2"] | ||||
| 22 | 04260-01270 | [1] | Ball Komatsu OEM | 0.009 kg. |
| ["SN: 65949-UP", "SCC: C2"] | ||||
| 23 | 708-1W-42150 | [1] | Shaft Komatsu China | |
| ["SN: 66107-UP", "SCC: C2"] | ||||
| 24 | 708-1W-42110 | [1] | Bearing Komatsu | 0.23 kg. |
| ["SN: 65949-UP", "SCC: C2"] | ||||
| 25 | 708-1W-42140 | [1] | Case, Seal Komatsu | 0.2 kg. |
| ["SN: 65949-UP", "SCC: C2"] | ||||
| 26 | 708-1W-42130 | [1] | Seal, Oil Komatsu | 0.032 kg. |
| ["SN: 65949-UP"] | ||||
| 27 | 07000-B2060 | [1] | O-ring Komatsu | 0.002 kg. |
| ["SN: 65949-UP"] | ||||
| 28 | 708-1W-05821 | [1] | Spacer Kit Komatsu | 0.000 kg. |
| ["SN: 65949-UP", "SCC: C2"] analogs:["7081W05820"] | ||||
| 29 | 04065-06825 | [1] | Ring, Snap Komatsu | 0.018 kg. |
| ["SN: 65949-UP"] | ||||
Packing Details :
1. According to orders , pack the spare parts one by one by oil paper ;
2. Put them into small carton boxes one by one ;
3. Put the packed small carton boxes into bigger carton boxes one by one ;
4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea .
5. Goods is packed by oil paper and plastic bags inside .
6. Using wooden package .
7. We support the custom - made demand for package
Delivery : DHL Fedex EMS UPS or by Air/ Sea.
Contact Person: Mr. Paul
Tel: 0086-15920526889
Fax: +86-20-89855265
