| Part Name: | Planetary Carrier Assy No.2 | Part Number: | 2966194 296-6194 |
|---|---|---|---|
| Excavator Model: | 328D LCR 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L | Type: | Excavator Travel Reduction Parts |
| Condition: | 100% New, OEM Quality | Packing: | Plywood ,or Customized Carton Packings |
| Highlight: | 328D LCR Planet Carrier Assy,Travel Reduction Gearbox Planet Carrier Assy,336D Planet Carrier Assy |
||

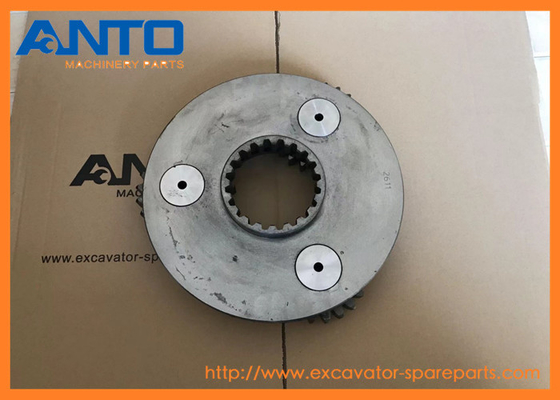

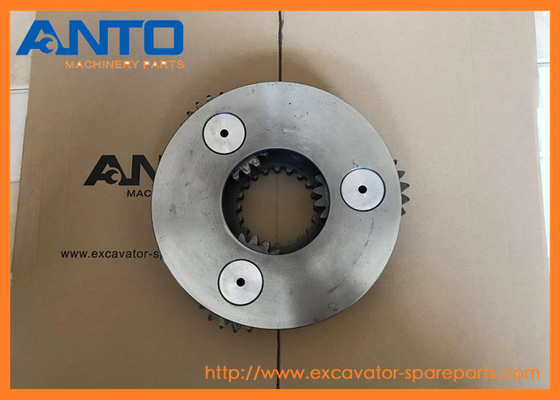

2966194 296-6194 Planet Carrier Assy No.2 For 328D LCR 336D Travel Reduction Gearbox Parts
| Parts No | 2966194 296-6194 |
| Part name | Planetary carrier no.2 |
| Excavator model |
328D LCR 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L |
| Category group | Excavator Travel Reduction parts |
| Place of origin | PRC |
| Payment term | T/T, Western Union, MoneyGram |
| Packing | As request or standard packing |
| Delivery time | Stock for urgent delivery |
| Means of transport | By sea/air, DHL FEDEX TNT UPS EMS |
EXCAVATOR 328D LCR 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN
336F L 340D L 340D2 L
MOBILE HYD POWER UNIT 336E HVG
| 7I7785 CARRIER-PLANETARY |
| 311, 311B, 312, 312B, 312B L, 315C, 318B |
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 1484749 CARRIER-PLANETARY |
| 315C, 318B |
| 1912599 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L |
| 1912607 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR |
| 3333048 CARRIER |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D L, 318D2 L |
| 3530536 CARRIER-PLANETARY |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR |
| 1655795 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| 1994624 CARRIER-PLANETARY |
| 315C, 315D L, 318D L |
| 1655863 CARRIER |
| 311C |
| 3333053 CARRIER |
| 315D L, 316E L, 318D L, 318D2 L |
| 1655795 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| 3530536 CARRIER-PLANETARY |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR |
| 3333048 CARRIER |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D L, 318D2 L |
| 1912607 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR |
| 1912599 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L |
| 1912627 CARRIER-PLANETARY |
| 312C, 312C L, 314C |
| 3079371 CARRIER |
| 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D LCR |
| 1655863 CARRIER |
| 311C |
| 2460151 CARRIER AS |
| 304, 305 |
| 2307020 CARRIER AS |
| 304, 305 |
| 8U9510 CARRIER-PLANETARY |
| M318C |
| 1994624 CARRIER-PLANETARY |
| 315C, 315D L, 318D L |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 094-0577 | [1] | PLATE (7-MM THK) | |
| 2 | 094-0578 | [1] | PLATE (8-MM THK) | |
| 3 | 094-0579 | [1] | PLATE (9-MM THK) | |
| 4 | 094-0580 | [1] | PLATE (10-MM THK) | |
| 5 | 136-2898 | [14] | WASHER (58.3X89X1-MM THK) | |
| 6 | 191-2690 | [6] | WASHER (42.3X70X1-MM THK) | |
| 7 | 227-6192 | [1] | GEAR-COUPLING | |
| 8 | 255-2272 | [1] | SEAL GP-DUO-CONE | |
| 205-9114 | [2] | RING-TORIC | ||
| 9 | 295-9234 | [1] | SEAL-O-RING | |
| 10 | 296-6181 | [1] | HOUSING | |
| 11 | 296-6183 | [1] | CARRIER-PLANETARY | |
| 12 | 296-6184 | [4] | GEAR-PLANETARY (21-TEETH) | |
| 13 | 296-6185 | [4] | SHAFT | |
| 14 | 296-6186 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 15 | 296-6189 | [1] | GEAR-SUN (20-TEETH) | |
| 16 | 296-6190 | [1] | GEAR-SUN (20-TEETH) | |
| 17 | 296-6192 | [1] | SPACER (143X170X8-MM THK) | |
| 18 | 296-6194 | [1] | CARRIER-PLANETARY | |
| 19 | 296-6195 | [3] | SHAFT | |
| 20 | 296-6230 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 21 | 296-6231 | [1] | GEAR-SUN (20-TEETH) | |
| 22 | 296-6232 | [1] | CARRIER AS | |
| 23 | 296-6311 | [1] | GEAR-RING (64-TEETH) | |
| 24 | 451-2176 | [30] | WASHER-HARD (22X35X3.5-MM THK) | |
| 25 | 452-3518 | [1] | HOUSING-MOTOR | |
| 26 | 470-7587 | [1] | COVER | |
| 27 | 501-7237 | [1] | GASKET | |
| 28 | 507-8035 | [1] | COUPLING | |
| 29 | 093-1731 | [2] | RING-RETAINING | |
| 30 | 095-0891 | [7] | PIN-SPRING | |
| 31 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 32 | 096-8058 | [3] | RING-RETAINING | |
| 33 | 114-1541 | [6] | PIN-DOWEL | |
| 34 | 143-0811 M | [16] | BOLT (12X1.75X35-MM) | |
| 35 | 267-6809 B | [1] | SHIM (0.75-MM THK) | |
| 267-6810 B | [1] | SHIM (0.85-MM THK) | ||
| 267-6811 B | [1] | SHIM (0.9-MM THK) | ||
| 267-6812 B | [1] | SHIM (0.95-MM THK) | ||
| 267-6813 B | [1] | SHIM (1.2-MM THK) | ||
| 267-6814 B | [1] | SHIM (1.4-MM THK) | ||
| 267-6815 B | [1] | SHIM (1.8-MM THK) | ||
| 267-6816 B | [1] | SHIM (2-MM THK) | ||
| 267-6817 B | [1] | SHIM (2.3-MM THK) | ||
| 7Y-1056 B | [1] | SHIM (0.8-MM THK) | ||
| 7Y-1057 B | [1] | SHIM (1-MM THK) | ||
| 44 | 279-0344 | [2] | BEARING AS-TAPERED ROLLER | |
| 45 | 296-6247 | [11] | BEARING AS-ROLLER | |
| 46 | 296-6248 | [3] | BEARING AS-ROLLER | |
| 47 | 3E-2338 | [2] | PLUG-PIPE | |
| 48 | 5P-8245 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 49 | 6V-8133 M | [10] | BOLT (M24X3X80-MM) | |
| 50 | 6V-8237 | [10] | WASHER (26X44X4-MM THK) | |
| 51 | 7M-8485 | [2] | SEAL-O-RING | |
| 52 | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) | |
| 55 | 7Y-5217 M | [30] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Packaging Details
Plastic Bag & Plastic Box , Customize , Or customer's Brand
2. Delivery Time
1-2 day after received the payment
3. Type of Shipping :
EMS , DHL , TNT , UPS , FeDex , By air & By sea ..
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
1. All of our products are strictly inspected and tested before packing in factory.2. All of our products are strictly produced according to Genuine parts standard.
2. We have our own design and develop department, thus, we can produce the spare parts according to your samples.
3. We have a team of professional engineers to supply related technology help if customers needs our tech-assistant.
4. All of our products are of good quality, competitive price, comparing to other suppliers.
5. We have two big warehouses in our city, thus we have enough stock goods, which enable us make delivery in fastest efficiency.
6. We have completed transport system to shipped the goods in fast way.
7. Sample processing, material processing, material agent processing, drawing processing, OEM processing, and other processing are all available.
8. We have thousands of customers in different countries and regions around the world.
