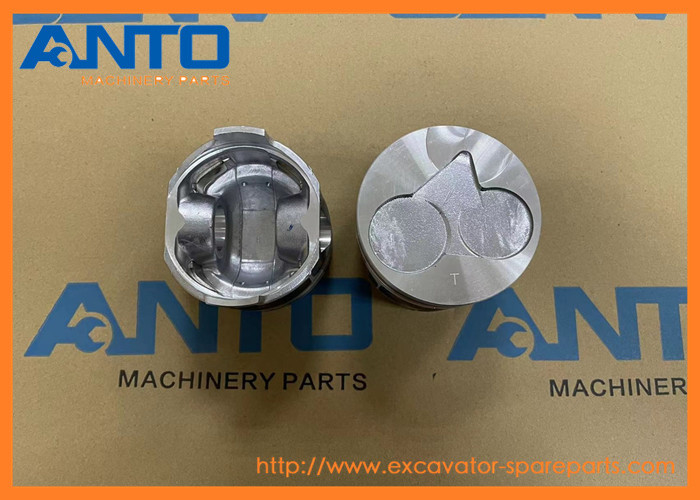

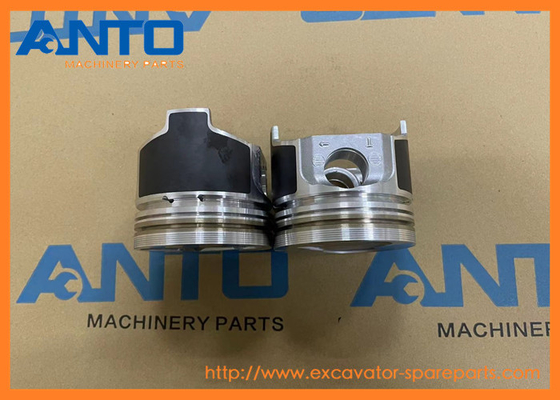

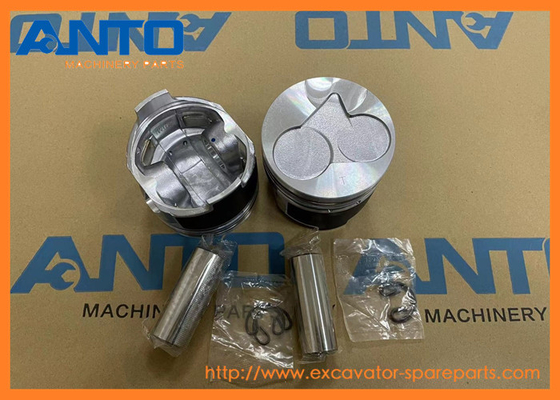

- H1600-21100 Piston KUBOTA Excavator Engine Parts Fit For B2910HSD B2400HSD
| Name |
Piston |
| Parts No |
H1600-21100 |
| Machine Model |
U48 U55 KX057 |
| Category |
Piston And Crank Shaft
|
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
Excavator(K / KH / KX / U SERIES) U48 U55
EXCAVATOR(KH / KX / K / U SERIES) KX057 Kubota
- More other piston parts fit for KUBOTA machine
| 90435-11640 PISTON |
| KX61, KX91 |
| |
| 96319-38770 PISTON |
| F2000, F2000ELW, F2000ESW, F2000II, F2100, F2100E, F2400, F2560, F2560E, F2880, F3060, F3560, F3680 |
| |
| H1600-21900 PISTON |
| B2400HSD, B2400HSDB, B2410HSD, B2410HSDB, B2910HSD, B7610HSD, F2400, F2560, F2560E, F3560, FZ2400, KX41, KX41H, KX61, KX61(H), KX71, KX91, ST, ZD28F |
| |
| K3111-14830 PISTON |
| F2560, F2880, F2890, F3060, F3560, F3680, F3690, ZD18F, ZD21F, ZD28F |
| |
| K3211-14830 PISTON |
| ZD18F, ZD21F, ZD25F, ZD28F, ZG20F |
| |
| K3511-14830 PISTON |
| F2560, F2560E, F3060, F3560 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10 |
H1600-21100 |
[3] |
PISTON |
STD/ This part includes ASSY RING,PISTON |
| 10 |
H1600-21900 |
[3] |
PISTON |
+0.5mm / This part includes ASSY RING,PISTON |
| 20 |
16261-21050 |
[3] |
ASSY PISTON RING |
STD |
| 20 |
16261-21090 |
[3] |
ASSY PISTON RING |
+0.50MM |
| 30 |
16241-21310 |
[3] |
PIN,PISTON |
|
| 40 |
16241-21330 |
[6] |
CIRCLIP(PIN,PISTON) |
|
| 50 |
16241-22012 |
[3] |
ROD,CONNECTING,ASSY |
|
| 60 |
16241-21980 |
[3] |
BUSH,PISTON PIN |
|
| 70 |
16241-22142 |
[6] |
BOLT(CONNECTING ROD) |
|
| 80 |
16241-22310 |
[3] |
METAL,CRANKPIN |
STD SET |
| 80 |
16241-22970 |
[3] |
METAL,CRANKPIN |
-0.20MM SET |
| 80 |
16241-22980 |
[3] |
METAL,CRANKPIN |
-0.40MM SET |
| 90 |
16261-23013 |
[1] |
CRANKSHAFT,COMP |
|
| 110 |
07715-00401 |
[3] |
BALL 1/4 |
|
| 120 |
16241-24110 |
[1] |
GEAR,CRANK |
|
| 130 |
16271-95230 |
[1] |
KEY |
|
| 140 |
16241-35630 |
[1] |
GEAR(OIL PUMP DRIVE) |
|
| 150 |
16271-23250 |
[1] |
COLLAR,CRANKSHAFT |
|
| 160 |
04811-10280 |
[1] |
O-RING |
<=WH4333 |
| 160 |
04814-10280 |
[1] |
RING |
>=WJ0001 |
| 170 |
16241-23470 |
[1] |
METAL(CRANKSHAFT) |
STD |
| 170 |
16241-23910 |
[1] |
METAL(CRANKSHAFT) |
-0.20MM |
| 170 |
16241-23920 |
[1] |
METAL(CRANKSHAFT) |
-0.40MM |
| 180 |
16241-23480 |
[2] |
METAL,CRANKSHAFT |
STD SET |
| 180 |
16241-23930 |
[2] |
METAL,CRANKSHAFT |
-0.20MM SET |
| 180 |
16241-23940 |
[2] |
METAL,CRANKSHAFT |
-0.40MM SET |
| 190 |
16241-23490 |
[1] |
METAL,CRANKSHAFT |
STD SET <=XC9968 |
| 190 |
16241-23870 |
[1] |
METAL,CRANKSHAFT |
-0.40MM SET <=XC9968 |
| 190 |
16241-23860 |
[1] |
METAL,CRANKSHAFT |
-0.20MM SET <=XC9968 |
| 190 |
16292-23860 |
[1] |
METAL,CRANKSHAFT |
-0.20MM SET >=XE0001 |
| 190 |
16292-23870 |
[1] |
METAL,CRANKSHAFT |
-0.40MM SET >=XE0001 |
| 190 |
16292-23490 |
[1] |
METAL,CRANKSHAFT |
STD SET >=XE0001 |
| 200 |
15521-23530 |
[2] |
METAL,SIDE |
STD |
| 200 |
15521-23950 |
[2] |
METAL,SIDE |
+0.20MM |
| 200 |
15521-23960 |
[2] |
METAL,SIDE |
+0.40MM |
| 210 |
19202-23540 |
[2] |
METAL,SIDE |
STD |
| 210 |
19202-23970 |
[2] |
METAL,SIDE |
+0.20MM |
| 210 |
19202-23980 |
[2] |
METAL,SIDE |
+0.40MM |
| 220 |
07916-26862 |
[3] |
KIT RING,PISTON |
STD |
| 220 |
07916-26872 |
[3] |
RING,PISTON,KIT |
+0.50MM |
| 230 |
07916-28240 |
[1] |
KIT METAL,ENGINE |
STD |
| 230 |
07916-28760 |
[1] |
KIT METAL,ENGINE |
-0.20MM/+0.20MM |
| 230 |
07916-28770 |
[1] |
KIT METAL,ENGINE |
-0.40MM/+0.40MM |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
