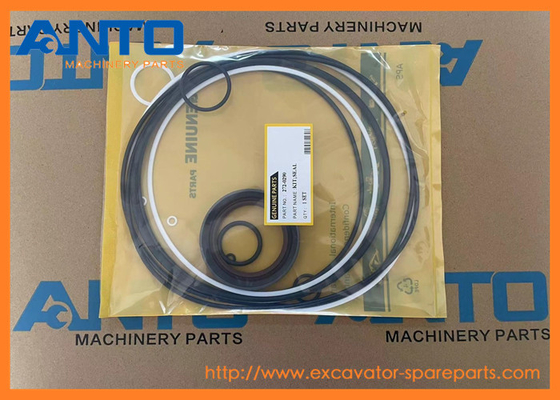

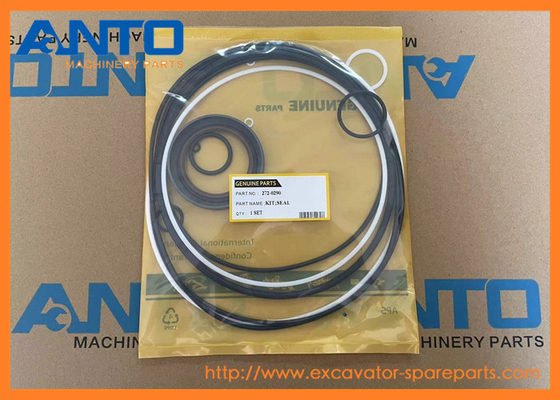

• 272-0290 2720290 Seal Kit Used For Excavator Spare Parts 325C 328D LCR 330C 330C L 330C MH

• Specification

• Applicable models

Excavator C A T 325C 328D LCR 330C 330C L 330C MH 330D 330D L 330D LN 330D MH 336D

336D L 336D LN 336D2 336D2 L 336E 336E H 336E HVG 336E L 336E LH 336E LN 336F L 340D L 340D2 L

• More seal kit supplied to C A T machine

  2590636 KIT-SEAL

  325C

  2042721 KIT-SEAL

  330C, 345B II, 345B L, 350, M325C MH, M325D L MH

  1997417 KIT-SEAL

  325B L, 328D LCR, 330B, 330B L, 345B L

  1884219 KIT-SEAL

  325C, 330C FM, 330C L, 385B

  2159988 KIT-SEAL

  330C, 330C L, 330C MH

  2590729 KIT-SEAL

  325C

  2003315 KIT-SEAL

  325C, 330C L

  1948235 KIT-SEAL

  330C L, 330D, 330D L, 336D

  2590751 KIT-SEAL

  330C L, 330D L, 336D, 336D2, 340D L, 340D2 L, 345D, 345D L, 349D, 349D L

  2590768 KIT-SEAL

  330C L, 330D L, 336D, 340D L

  1948396 KIT-SEAL

  330C L

  1915649 KIT-SEAL

  330C L

  2590637 KIT-SEAL

  326C

  2042722 KIT-SEAL

  330C, 345B II, 345B L, 350, M325C MH, M326D L MH

  1997418 KIT-SEAL

  325B L, 328D LCR, 330B, 330B L, 346B L

  1884220 KIT-SEAL

  325C, 330C FM, 330C L, 386B

• Catalog parts list

  Pos.	Part No	Qty	Parts name	Comments
  1	1T-0936	[1]	PLUG-ORIFICE
  2	4B-4158	[4]	SCREW-DRIVE (NO 4X0.25-IN)
  3	6V-3382 J	[1]	SEAL-LIP TYPE
  4	8J-2559	[1]	PLATE-WARNING (OIL FILL)
  5	087-4786	[1]	ADAPTER
  6	108-6503	[9]	PISTON AS
  7	118-4057	[9]	SPRING
  8	124-1541	[2]	PIN
  9	124-1561	[20]	SPRING-BRAKE
  10	137-3708	[1]	RETAINER
  11	167-3855	[1]	SHAFT
  12	167-3857	[1]	KEY
  13	167-3858	[1]	KEY
  14	167-3859	[1]	PLATE-CAM
  15	167-3862	[1]	PLATE-RETAINER
  16	167-3863	[1]	BALL
  17	167-3865	[5]	PLATE-SEPARATOR
  18	167-3866	[4]	PLATE-FRICTION
  19	167-3867	[1]	PLATE-PORT
  20	167-3868	[1]	PISTON-BRAKE
  21	167-3872	[1]	SPOOL
  22	170-1612 J	[2]	SEAL
  23	170-1626 J	[1]	RING-BACKUP
  24	170-1627 J	[1]	RING-BACKUP
  25	173-4063	[1]	BARREL AS-MOTOR
  26	173-4066	[1]	SPACER (63.05X79.8X7-MM THK)
  27	175-7436	[1]	VALVE
  28	175-7887	[2]	DOWEL
  29	180-6769	[1]	BEARING AS
  30	180-6770	[1]	BEARING AS
  31	186-5175	[1]	PLUG
  32	193-7901	[1]	BODY AS
  	124-1555	[4]	PLUG
  33	271-6377	[1]	HEAD AS
  	096-5916	[2]	SEAT
  	124-1555	[4]	PLUG
  34	274-4512	[1]	SEAT
  35	274-4513	[2]	RETAINER
  36	345-3744	[1]	PISTON-ACTUATOR
  37	095-1572 J	[2]	SEAL-O-RING
  38	095-1585 J	[1]	SEAL-O-RING
  39	095-1596 J	[1]	SEAL-O-RING
  40	095-1700 J	[2]	SEAL-O-RING
  41	095-7380	[1]	SPRING
  42	096-3978	[1]	SPRING
  43	096-5919 J	[2]	RING-BACKUP
  44	099-7030 J	[1]	RING-BACKUP
  45	170-1616 J	[1]	SEAL
  46	2D-6642	[2]	BALL
  47	2M-9780 J	[1]	SEAL-O-RING
  48	2R-1236	[1]	RING-RETAINING (LOCK, INTERNAL)
  49	3D-2824 J	[2]	SEAL-O-RING
  50	3K-0360 J	[2]	SEAL-O-RING
  51	4K-4284	[1]	RING-RETAINING
  52	6V-5192 M	[4]	BOLT-SOCKET HEAD (M8X1.25X30-MM)
  53	7Y-5219 J	[2]	SEAL-O-RING
  54	8T-2393 M	[8]	BOLT-SOCKET HEAD (M16X2X60-MM)
  55	9S-8005	[2]	PLUG (3/4-16-THD)
  56	9S-8008	[2]	PLUG (1-1/16-12-THD)
  			AVAILABLE REPAIR KIT(S):
  	272-0290 J	[1]	KIT-SEAL (TRAVEL MOTOR)
  	J		KIT MARKED J SERVICES PART(S) MARKED J
  	M		METRIC PART
