Product Details:
Payment & Shipping Terms:
|
| Part Name: | Planetary Carrier Assy No.2 | Part Number: | 1655796 165-5796 |
|---|---|---|---|
| Excavator Model: | 311C 313D2 315C 315D 316F 318D | Type: | Excavator Travel Reduction Parts |
| Condition: | 100% New, OEM Quality | Packing: | Plywood ,or Customized Carton Packings |
| High Light: | 165-5796 Planet Carrier Assy,316E Planet Carrier Assy |
||

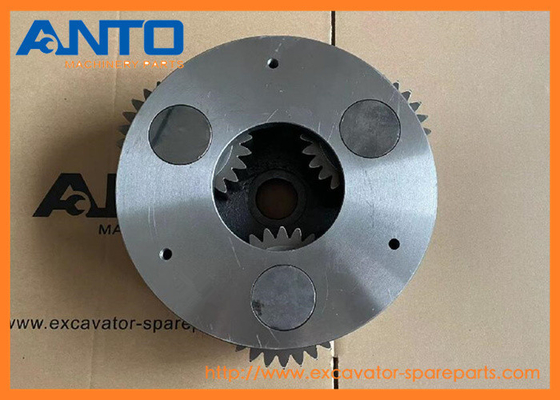

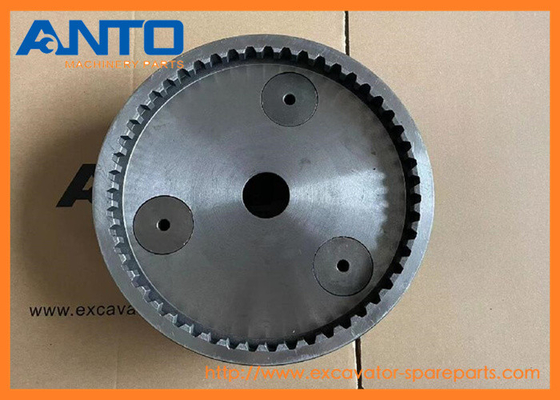

1655796 165-5796 Planet Carrier Assy No.2 Fit For 316E Travel Reduction Gearbox Parts
| Parts No | 1655796 165-5796 |
| Part name | Planetary carrier no.2 |
| Excavator model |
311C 313D2 315C 315D 316F 318D |
| Category group | Excavator Travel Reduction parts |
| Place of origin | PRC |
| Payment term | T/T, Western Union, MoneyGram |
| Packing | As request or standard packing |
| Delivery time | Stock for urgent delivery |
| Means of transport | By sea/air, DHL FEDEX TNT UPS EMS |
EXCAVATOR 311C 313D2 LGP 315C 315D L 316E L 318D L 318D2 L C A T
| 7I7785 CARRIER-PLANETARY |
| 311, 311B, 312, 312B, 312B L, 315C, 318B |
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 1484749 CARRIER-PLANETARY |
| 315C, 318B |
| 1912599 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L |
| 1912607 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR |
| 3333048 CARRIER |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D L, 318D2 L |
| 3530536 CARRIER-PLANETARY |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR |
| 1655795 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| 1994624 CARRIER-PLANETARY |
| 315C, 315D L, 318D L |
| 1655863 CARRIER |
| 311C |
| 3333053 CARRIER |
| 315D L, 316E L, 318D L, 318D2 L |
| 1655795 CARRIER |
| 311C, 313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L |
| 3530536 CARRIER-PLANETARY |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR |
| 3333048 CARRIER |
| 311C, 311D LRR, 311F LRR, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D L, 318D2 L |
| 1912607 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR |
| 1912599 CARRIER-PLANETARY |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L |
| 1912627 CARRIER-PLANETARY |
| 312C, 312C L, 314C |
| 3079371 CARRIER |
| 311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D LCR |
| 1655863 CARRIER |
| 311C |
| 2460151 CARRIER AS |
| 304, 305 |
| 2307020 CARRIER AS |
| 304, 305 |
| 8U9510 CARRIER-PLANETARY |
| M318C |
| 1994624 CARRIER-PLANETARY |
| 315C, 315D L, 318D L |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 165-5785 | [1] | SPACER (40X60.9X1-MM THK) | |
| 2 | 096-1773 B | [1] | SHIM (0.15-MM THK) | |
| 096-1774 B | [1] | SHIM (0.3-MM THK) | ||
| 096-1775 B | [1] | SHIM (0.4-MM THK) | ||
| 096-1776 B | [1] | SHIM (0.5-MM THK) | ||
| 096-1777 B | [1] | SHIM (0.6-MM THK) | ||
| 096-1778 B | [1] | SHIM (0.7-MM THK) | ||
| 096-1779 B | [1] | SHIM (0.8-MM THK) | ||
| 096-1780 B | [1] | SHIM (1-MM THK) | ||
| 096-1781 B | [1] | SHIM (1.6-MM THK) | ||
| 11 | 227-6034 M | [16] | BOLT-FLANGE HEAD (M16X2X60-MM) | |
| 12 | 165-5786 | [3] | SHAFT | |
| 13 | 296-6269 | [6] | BEARING-ROLLER | |
| 14 | 165-5787 | [3] | GEAR-PLANETARY (26-TEETH) | |
| 15 | 094-1528 | [6] | WASHER (53X84X1-MM THK) | |
| 16 | 095-0891 | [6] | PIN-SPRING | |
| 17 | 165-5788 | [3] | GEAR-PLANETARY (29-TEETH) | |
| 18 | 296-6268 | [3] | BEARING AS-ROLLER | |
| 19 | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 20 | 7M-8485 | [2] | SEAL-O-RING | |
| 21 | 165-5790 | [1] | COVER | |
| 22 | 7Y-0225 | [3] | SHAFT-PLANETARY | |
| 23 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 24 | 094-0580 | [1] | PLATE (10-MM THK) | |
| 25 | 165-5792 | [1] | GEAR-SUN (14-TEETH) | |
| 26 | 165-5793 | [1] | GEAR-SUN (17-TEETH) | |
| 27 | 165-5794 | [1] | SPACER (72X101X7-MM THK) | |
| 28 | 165-5795 | [1] | CARRIER | |
| 29 | 8T-7929 M | [16] | BOLT (M12X1.75X180-MM) | |
| 30 | 8T-4223 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 31 | 095-1299 | [3] | DOWEL | |
| 32 | 165-3892 | [1] | GEAR-RING (73-TEETH) | |
| 33 | 165-5796 | [1] | CARRIER | |
| 34 | 165-5797 | [1] | GEAR (51-TEETH) | |
| 35 | 165-5800 | [1] | WASHER (241X282X3-MM THK) | |
| 36 | 210-3530 | [1] | HOUSING | |
| 37 | 114-1539 | [4] | PIN-DOWEL | |
| 38 | 296-6220 | [2] | BALL BEARING | |
| 39 | 210-3531 | [1] | HOUSING-MOTOR | |
| 40 | 174-4874 | [1] | SEAL GP-DUO-CONE |
