| Parts No |
7Y-1485 7Y1485 |
| Part name |

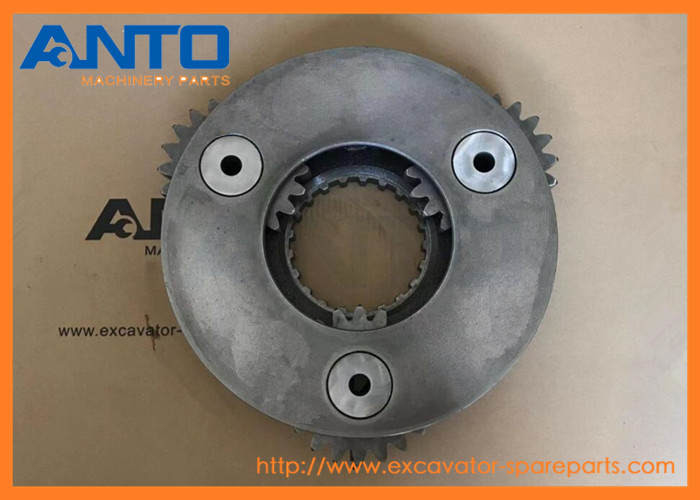

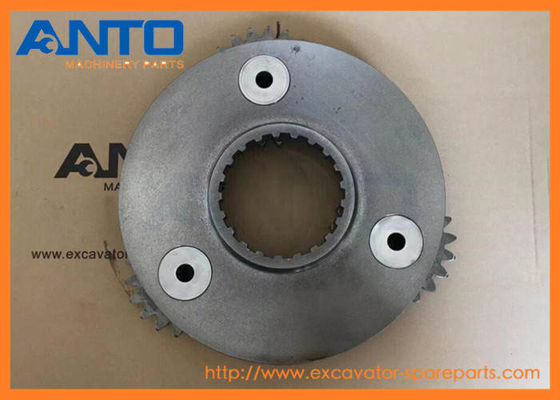

Planetary carrier |
| Excavator model |
345B 345C 345D 349D 349E
|
| Category group |
Excavator Travel Reducer Parts |
| Place of origin |
PRC |
| Payment term |
T/T, Western Union, MoneyGram |
| Packing |
As request or standard packing |
| Delivery time |
Stock for urgent delivery |
| Means of transport |
By sea/air, DHL FEDEX TNT UPS EMS |
EXCAVATOR 330 330 FM L 330 L 330C 330D L 330D MH 345B 345B II 345B II MH 345B L 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L 349E 349E L 349E L VG 349F L 350
MOBILE HYD POWER UNIT 345C L 349E L HVG
- More carrier for C A T heavy equipment
| 1107059 CARRIER-PLANETARY |
| 320B, 322B L, 325 L, 325B, 325B L, OEMS |
| |
| 1107058 CARRIER-PLANETARY |
| 320B, 322B L, 325 L, 325B, 325B L, OEMS |
| |
| 1107209 CARRIER AS |
| 320B, 322B L, 325 L, 325B, 325B L, OEMS |
| |
| 7Y0242 CARRIER |
| 325, 325 LN, OEMS |
| |
| 7Y0241 CARRIER |
| 325, 325 LN, OEMS |
| |
| 7Y0228 CARRIER AS, |
| 325, 325 LN, OEMS |
| |
| 7Y1771 CARRIER |
| 320 L, 345B, 345B L, OEMS |
| |
| 7Y1774 CARRIER |
| 320 L, 345B, 345B L, OEMS |
| |
| 7Y0643 CARRIER |
| 325 L, 328D LCR, 330, 330 FM L, 330 L, 330C L, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0731 CARRIER AS |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 7Y0645 CARRIER |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS |
| |
| 1107228 CARRIER-PLANETARY |
| 330B, 330B L, OEMS |
| |
| 7Y1482 CARRIER-PLANETARY |
| 330, 330 FM L, 330 L, 330C, 330D L, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG, 349E L VG, 349F L, 350, OEMS |
| |
| 1107243 CARRIER AS |
| 330B, 330B L, OEMS |
| |
| 1107228 CARRIER-PLANETARY |
| 330B, 330B L, OEMS |
| |
| 8D3591 CARRIER-PLANETARY |
| 12G, 12H, 12H ES, 12H NA, 12K, 130G, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA |
| |
| 8D4570 CARRIER AS-DIFFERENTIAL |
| 12G, 130G, 140G, 160G |
| |
| 9P8451 CARRIER-PLANETARY |
| 120G, 12G, 130G, 140G, 160G |
| |
| 3P1621 CARRIER AS |
| 14G, 16G |
| |
| 3P1609 CARRIER-PLANETARY |
| 14G, 14H, 14H NA, 16G, 16H, 16H NA |
| |
| 3P0862 CARRIER-INPUT |
| 14G, 14H, 14H NA, 16G, 16H, 16H NA |
| |
| 8D2532 CARRIER-PLANETARY |
| 14G, 14H, 14H NA |
| |
| 8D9309 CARRIER AS-DIFFERENTIAL |
| 14G, 14H, 14H NA |
| |
| 7Y1488 CARRIER AS |
| 330, 330 FM L, 330 L, 330C, 330D L, 330D MH, 345B, 345B II, 345B II |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
2R-0524 |
[2] |
CONE-BEARING |
|
| 2 |
2R-0525 |
[2] |
CUP-BEARING |
|
| 3 |
4I-7576 |
[14] |
WASHER (66.3X104X3-MM THK) |
|
| 4 |
7M-8485 |
[2] |
SEAL-O-RING |
|
| 5 |
7Y-0661 |
[3] |
SHAFT-PLANETARY |
|
| 6 |
7Y-0662 |
[4] |
SHAFT-PLANETARY |
|
| 7 |
199-4583 |
[11] |
BEARING AS |
|
| 8 |
7Y-0808 B |
[1] |
SHIM (1.6-MM THK) |
|
| 9 |
7Y-1469 |
[1] |
COUPLING |
|
| 10 |
7Y-1470 |
[1] |
GEAR-SUN (21-TEETH) |
|
| 11 |
7Y-1472 B |
[1] |
SHIM (0.15-MM THK) |
|
| 12 |
7Y-1473 B |
[1] |
SHIM (0.3-MM THK) |
|
| 13 |
7Y-1474 B |
[1] |
SHIM (0.4-MM THK) |
|
| 14 |
7Y-1475 B |
[1] |
SHIM (0.5-MM THK) |
|
| 15 |
7Y-1476 B |
[1] |
SHIM (0.6-MM THK) |
|
| 16 |
7Y-1477 B |
[1] |
SHIM (0.7-MM THK) |
|
| 17 |
7Y-1478 B |
[1] |
SHIM (0.8-MM THK) |
|
| 18 |
7Y-1479 B |
[1] |
SHIM (1-MM THK) |
|
| 19 |
7Y-1480 B |
[1] |
SHIM (1.6-MM THK) |
|
| 20 |
7Y-1482 |
[1] |
CARRIER-PLANETARY |
|
| 21 |
7Y-1483 |
[1] |
GEAR-RING (63-TEETH) |
|
| 22 |
7Y-1485 |
[1] |
CARRIER-PLANETARY |
|
| 23 |
7Y-1487 |
[1] |
GEAR-RING (85-TEETH) |
|
| 24 |
7Y-1488 |
[1] |
CARRIER AS |
|
| |
7Y-0656 |
[3] |
SHAFT-PLANETARY |
|
| 25 |
7Y-1491 |
[1] |
GEAR-SUN (21-TEETH) |
|
| 26 |
7Y-1493 |
[1] |
SPACER (8.7X50X14-MM THK) |
|
| 27 |
7Y-1495 |
[3] |
GEAR-PLANETARY (29-TEETH) |
|
| 28 |
7Y-1498 |
[1] |
COVER |
|
| 29 |
7Y-1499 |
[3] |
GEAR-PLANETARY (20-TEETH) |
|
| 30 |
7Y-1504 |
[4] |
GEAR-PLANETARY (20-TEETH) |
|
| 31 |
7Y-5235 M |
[20] |
BOLT (M24X3X190-MM) |
|
| 32 |
110-7217 |
[2] |
RING-RETAINING |
|
| 33 |
114-1541 |
[6] |
PIN-DOWEL |
|
| 34 |
169-5559 |
[1] |
GEAR-SUN (26-TEETH) |
|
| 35 |
199-4719 |
[1] |
GEAR-COUPLING |
|
| 36 |
200-3489 |
[1] |
HOUSING-MOTOR |
|
| 37 |
200-3490 |
[1] |
HOUSING-GEAR |
|
| 38 |
205-9025 |
[1] |
SEAL GP-DUO-CONE |
|
| |
205-9024 |
[2] |
RING-TORIC |
|
| 39 |
227-6048 |
[12] |
WASHER (26X40X4-MM THK) |
|
| 40 |
094-0584 |
[6] |
WASHER (40.3X72X1-MM THK) |
|
| 41 |
199-4582 |
[3] |
BEARING AS |
|
| 42 |
095-0891 |
[7] |
PIN-SPRING |
|
| 43 |
096-3216 M |
[2] |
SETSCREW-SOCKET (M12X1.75X12-MM) |
|
| 44 |
3E-2338 |
[2] |
PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) |
|
| 45 |
6V-8133 M |
[12] |
BOLT (M24X3X80-MM) |
|
| 46 |
7Y-1484 |
[1] |
SPACER (191X221X8.5-MM THK) |
|
| 47 |
7Y-1492 |
[2] |
SPACER (67X101.1X10-MM THK) |
|
| 48 |
8C-5240 |
[1] |
SEAL-O-RING |
|
| 49 |
8T-3957 M |
[10] |
BOLT-SOCKET HEAD (M12X1.75X30-MM) |
|
| 50 |
8T-4167 |
[20] |
WASHER-HARD (26X44X4-MM THK) |
|
| 51 |
8T-4240 |
[3] |
RING-RETAINING |
|
| 52 |
1U-8846 B |
|
SEALANT-GASKET |
|
| |
B |
|
USE AS REQUIRED |
|
| |
M |
|
METRIC PART |
|
