Product Details:
Payment & Shipping Terms:
|
| Model Number: | PC490-10 WA470-7 | Part Number: | 6251111200 6251111100 6251-11-1200 6251-11-1100 |
|---|---|---|---|
| Product Name: | Cylinder Head Assy | Engine Model: | SAA6D125E-5 |
| Lead Time: | 1-3 Days For Delivery | Packing: | Standard Export Carton |
| High Light: | SAA6D125E-5 Engine Cylinder Head Assy,6251111200 Engine Cylinder Head Assy,6251-11-1200 Engine Cylinder Head Assy |
||

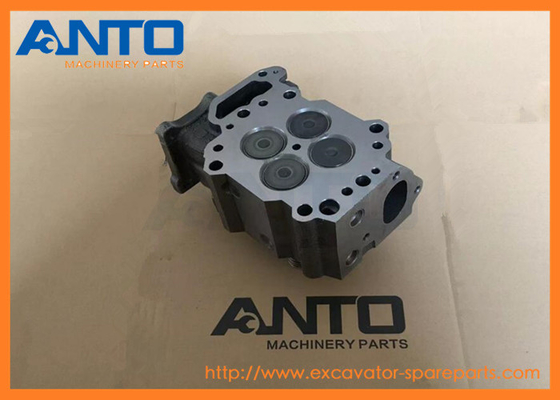

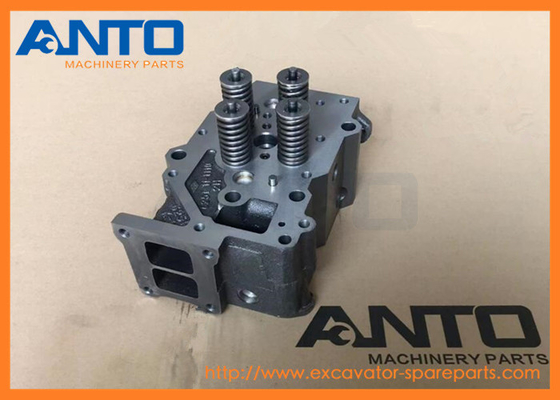

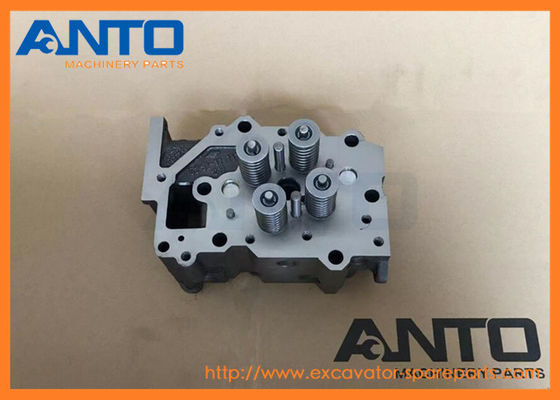

6251111200 6251111100 6251-11-1200 6251-11-1100 SAA6D125E-5 Engine Cylinder Head Assy
Specification
| Application | KOMATSU engine parts |
| Parts Name | Cylinder head assembly |
| Parts No | 6251111200 6251111100 6251-11-1200 6251-11-1100 |
| Model | SAA6D125E-5 |
| Lead time | 1-3 DAYS |
| Condition | Brand new, OEM quality |
| MOQ | 1 SET |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
ENGINES SAA6D125E
EXCAVATORS PC490
WHEEL LOADERS WA470 Komatsu
| Pos. | Part No | Qty | Parts name | Comments |
| 6251-11-1200 | [6] | HEAD ASSEMBLY Komatsu | 14.5 kg. | |
| analogs:["6251111100"] |$0. | ||||
| 2 | 6150-11-1320 | [2] | INSERT Komatsu OEM | 0.028 kg. |
| 6150-19-1320 | [2] | INSERT, T=0.25 MM Komatsu China | 0.03 kg. | |
| |$3. | ||||
| 6150-18-1320 | [2] | INSERT, T=0.5 MM Komatsu | 0.03 kg. | |
| |$4. | ||||
| 6150-17-1320 | [2] | INSERT, T=0.75 MM Komatsu | 0.033 kg. | |
| |$5. | ||||
| 6150-16-1320 | [2] | INSERT, T=1.00 MM Komatsu | 0.04 kg. | |
| |$6. | ||||
| 3 | 6150-12-1380 | [2] | INSERT Komatsu OEM | 0.045 kg. |
| 6150-19-1380 | [2] | INSERT, T=0.25 MM Komatsu | 0.03 kg. | |
| |$8. | ||||
| 6150-18-1380 | [2] | INSERT, T=0.50 MM Komatsu | 0.000 kg. | |
| |$9. | ||||
| 6150-17-1380 | [2] | INSERT, T=0.75 MM Komatsu | 0.000 kg. | |
| |$10. | ||||
| 6150-16-1380 | [2] | INSERT, T=1.00 MM Komatsu | 0.000 kg. | |
| |$11. | ||||
| 4 | 6150-12-1370 | [4] | GUIDE Komatsu OEM | 0.07 kg. |
| analogs:["6150121341", "6150111370", "6150111341"] | ||||
| 5 | 6162-13-1150 | [11] | PLUG, EXPANSION Komatsu | 0.01 kg. |
| 6 | 04260-00793 | [1] | BALL Komatsu | 0.005 kg. |
| 7 | 07043-70108 | [3] | PLUG Komatsu | 0.005 kg. |
| analogs:["07043A0108"] | ||||
| 8 | 6150-42-4110 | [12] | VALVE, INTAKE Komatsu OEM | 0.165 kg. |
| 9 | 6150-42-4210 | [12] | VALVE, EXHAUST Komatsu OEM | 0.194 kg. |
| 10 | 6150-41-4510 | [24] | SEAT Komatsu OEM | 0.03 kg. |
| 11 | 6150-41-4430 | [24] | SEAT Komatsu China | 0.01 kg. |
| 12 | 6136-42-4520 | [48] | COTTER, VALVE Komatsu China | 0.01 kg. |
| 13 | 6251-41-4450 | [24] | SPRING Komatsu China | |
| 14 | 6252-41-4570 | [24] | SEAL Komatsu China | |
| 15 | 6210-11-1140 | [12] | GUIDE Komatsu | 0.051 kg. |
| 16 | 04020-00820 | [12] | PIN, DOWEL Komatsu | 0.056 kg. |
| analogs:["802540092"] | ||||
| 6150-42-5600 | [12] | CROSSHEAD ASSEMBLY Komatsu | 0.16 kg. | |
| analogs:["6150425610"] |$25. | ||||
| 17 | 6150-42-5610 | [1] | CROSSHEAD Komatsu | 0.16 kg. |
| analogs:["6150425600"] | ||||
| 18 | 6150-41-5621 | [1] | SCREW Komatsu | 0.05 kg. |
| analogs:["6150415620"] | ||||
| 19 | 6150-41-5630 | [1] | NUT Komatsu | 0.01 kg. |
| 20 | 6251-11-1810 | [6] | GASKET Komatsu | 0.195 kg. |
| 6251-19-1810 | [6] | GASKET, OVERSIZE 0.4 MM Komatsu | 0.000 kg. | |
| |$30. | ||||
| 6150-11-1970 | [1] | GROMMET Komatsu China | ||
| |$31. | ||||
| 6150-19-1970 | [1] | GROMMET, OIL, OVERSIZE 0.4 MM Komatsu China | ||
| |$32. | ||||
| 6150-11-1930 | [1] | GROMMET Komatsu | 0.001 kg. | |
| |$33. | ||||
| 6150-19-1930 | [1] | GROMMET, OIL, OVERSIZE 0.4 MM Komatsu | 0.000 kg. | |
| |$34. | ||||
| 6150-11-1950 | [4] | GROMMET Komatsu | 0.001 kg. | |
| analogs:["6150111940"] |$35. | ||||
| 6150-19-1950 | [4] | GROMMET, WATER, OVERSIZE 0.4 MM Komatsu China | ||
| |$36. | ||||
| 6150-12-1960 | [1] | GROMMET Komatsu | 0.003 kg. | |
| |$37. | ||||
| 6150-19-1960 | [1] | GROMMET, WATER, OVERSIZE 0.4 MM Komatsu | 0.000 kg. | |
| |$38. | ||||
| 6150-11-1960 | [5] | GROMMET Komatsu | 0.01 kg. | |
| |$39. | ||||
| 6251-19-1960 | [1] | GROMMET, OIL, OVERSIZE 0.4 MM Komatsu | 0.000 kg. | |
| |$40. | ||||
| 21 | 6150-11-1620 | [36] | BOLT Komatsu China | |
| 22 | 6164-31-3330 | [36] | WASHER Komatsu China | |
| 23 | 01438-01020 | [6] | BOLT Komatsu | 0.207 kg. |
| analogs:["6150819160"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
