210-3529 350-0452 2103529 3500452 Excavator 315C 315D 318D Final Drive

210-3529 350-0452 2103529 3500452 Excavator 315C 315D 318D Final Drive
210-3529 350-0452 2103529 3500452 Excavator 315C 315D 318D Final Drive

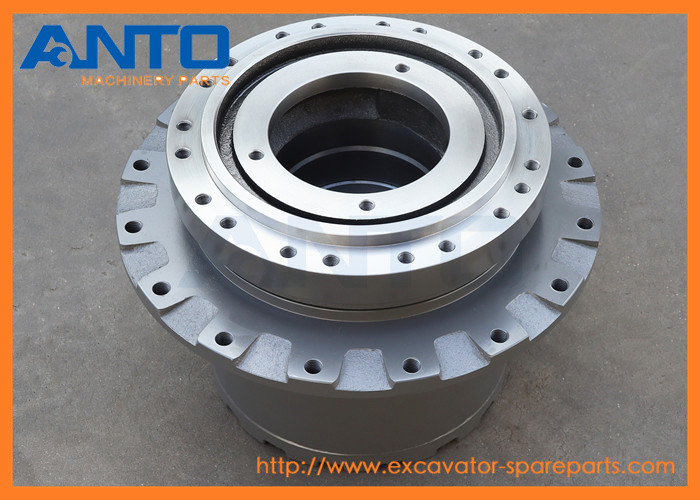

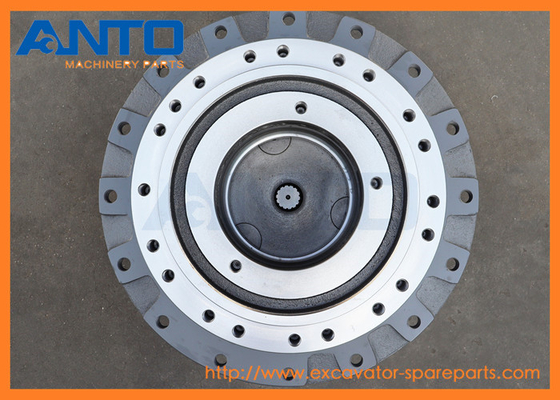

Large Image :  210-3529 350-0452 2103529 3500452 Excavator 315C 315D 318D Final Drive

Product Details:
Place of Origin: China
Brand Name: OEM
Model Number: 315D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability: 100-2000
Detailed Product Description
Application: Excavator Final Drive Part Name: Final Drive Gearbox
Part Number: 210-3529 350-0452 Model Number: 315C 315D 318D
Warranty: 6/12 Months Condition: 100% New, OEM Quality
High Light:

Excavator 318D Final Drive

,

2103529 Final Drive

,

210-3529 Final Drive

  • 210-3529 350-0452 2103529 3500452 Excavator 315C 315D 318D Final Drive





  • Specification
Parts No 210-3529 350-0452 2103529 3500452
Part name Final drive
Applied excavator

315C 315D 318D

Category group Excavator Final drive
Place of origin Made in PRC
Payment term T/T, Western Union, MoneyGram
Packing As request or standard packing
Delivery time Stock for urgent delivery
Means of transport By sea/air, DHL FEDEX TNT UPS EMS





  • Applicable models

EXCAVATOR 313D2 LGP 315C 315D L 316E L 318D L 318D2 L Caterpillar







  • More final drive fit for C A T machine
2276035 DRIVE GP-FINAL
315C, 315D L, 318C, 320C, 320C FM, 320C L, 320D, 320D FM, 320D LN, 320D LRR, 320D RR, 321B, 321C, 321D LCR, 323D L

1719293 DRIVE GP-SWING
315C

1719394 DRIVE GP-SWING
315C

1994615 DRIVE GP-SWING
315C, 315D L

1769100 DRIVE GP-FINAL
311C

2352385 DRIVE GP-FAN
3054C, 315C

3500450 DRIVE GP-FINAL
313D2 LGP, 315D L, 316E L, 318D L, 318D2 L

2676778 DRIVE GP-SWING
315D L

2676779 DRIVE GP-SWING
315D L

3678317 DRIVE GP-SWING
315D L, 316E L, 318D2 L

3678318 DRIVE GP-SWING
315D L, 316E L

3678338 DRIVE GP-SWING
315D L, 316E L, 318D L, 318D2 L

7N8877 DRIVE GP-AUXILIARY
3406

3500452 DRIVE GP-FINAL
313D2 LGP, 315C, 315D L, 316E L, 318D L, 318D2 L

2276130 DRIVE GP-SWING
385C, 385C FS, 385C L, 385C L MH, 390D, 390D L

9S0702 DRIVE GP-PUMP
824B, 825B, 826B, 834, 988

1165508 DRIVE GP-DRUM
CS-533C, CS-563C

1865160 DRIVE GP-PUMP
CB-434D, CB-534D, CB-564D, CD-54

2276131 DRIVE GP-SWING
385C, 385C FS, 385C L, 385C L MH, 390D, 390D L

4W0313 DRIVE GP-TACHOMETER
3304, 3304B, 3306, 3306B

2423499 DRIVE GP-DRUM
CS-533E

1193865 DRIVE GP-CREEPER
35, 45, 55

3530615 DRIVE GP-FINAL
319D, 319D L, 319D LN, 320D, 320D FM, 320D GC, 320D L, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D2 L

9K8047 DRIVE GP-PUMP
528





  • catalog parts list
Pos. Part No Qty Parts name Comments
1 165-5785 [1] SPACER (40X60.9X1-MM THK)
2 096-1773 B [1] SHIM (0.15-MM THK)
  096-1774 B [1] SHIM (0.3-MM THK)
  096-1775 B [1] SHIM (0.4-MM THK)
  096-1776 B [1] SHIM (0.5-MM THK)
  096-1777 B [1] SHIM (0.6-MM THK)
  096-1778 B [1] SHIM (0.7-MM THK)
  096-1779 B [1] SHIM (0.8-MM THK)
  096-1780 B [1] SHIM (1-MM THK)
  096-1781 B [1] SHIM (1.6-MM THK)
11 227-6034 M [16] BOLT-FLANGE HEAD (M16X2X60-MM)
12 165-5786 [3] SHAFT
13 296-6269 [6] BEARING-ROLLER
14 165-5787 [3] GEAR-PLANETARY (26-TEETH)
15 094-1528 [6] WASHER (53X84X1-MM THK)
16 095-0891 [6] PIN-SPRING
17 165-5788 [3] GEAR-PLANETARY (29-TEETH)
18 296-6268 [3] BEARING AS-ROLLER
19 3E-2338 [2] PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
20 7M-8485 [2] SEAL-O-RING
21 165-5790 [1] COVER
22 7Y-0225 [3] SHAFT-PLANETARY
23 094-0611 [6] WASHER (47.3X76X1-MM THK)
24 094-0580 [1] PLATE (10-MM THK)
25 165-5792 [1] GEAR-SUN (14-TEETH)
26 165-5793 [1] GEAR-SUN (17-TEETH)
27 165-5794 [1] SPACER (72X101X7-MM THK)
28 165-5795 [1] CARRIER
29 8T-7929 M [16] BOLT (M12X1.75X180-MM)
30 8T-4223 [16] WASHER-HARD (13.5X25.5X3-MM THK)
31 095-1299 [3] DOWEL
32 165-3892 [1] GEAR-RING (73-TEETH)
33 165-5796 [1] CARRIER
34 165-5797 [1] GEAR (51-TEETH)
35 165-5800 [1] WASHER (241X282X3-MM THK)
36 210-3530 [1] HOUSING
37 114-1539 [4] PIN-DOWEL
38 296-6220 [2] BALL BEARING
39 210-3531 [1] HOUSING-MOTOR
40 174-4874 [1] SEAL GP-DUO-CONE

  1U-8846 BF   SEALANT-GASKET
  B   USE AS REQUIRED
  F   NOT SHOWN
  M   METRIC PART

210-3529 350-0452 2103529 3500452 Excavator 315C 315D 318D Final Drive 0
