Product Details:
Payment & Shipping Terms:
|
| Application: | Excavator Final Drive Parts | Part Name: | Travel Motor Casing |
|---|---|---|---|
| Part Number: | 39Q6-41110 39Q641110 | Model Number: | R210LC9 R220LC9S RD220-7 |
| Warranty: | 6/12 Months | Condition: | 100% New, OEM Quality |

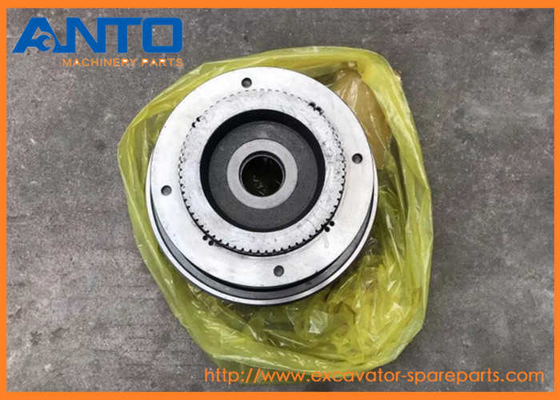

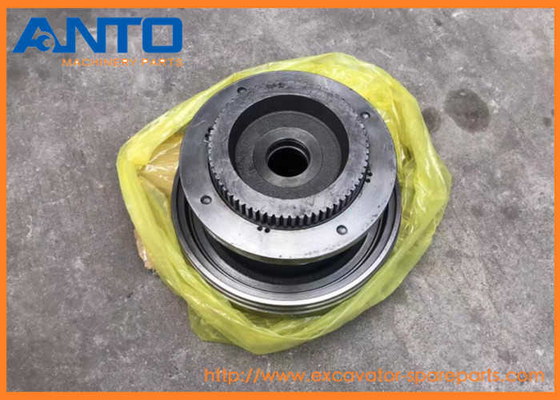

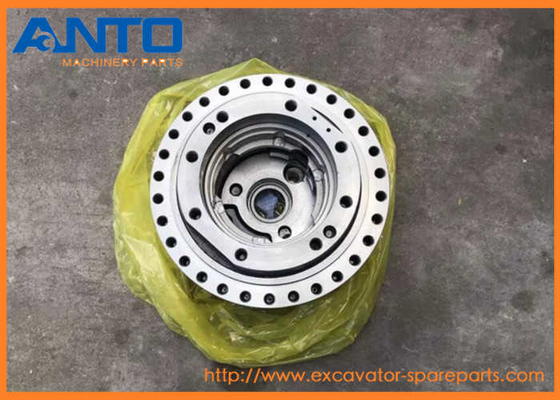

39Q6-41110 39Q641110 Travel Motor Casing For HYUNDAI R220LC-9 Final Drive Parts
| Parts No | 39Q6-41110 39Q641110 |
| Part name | travel motor casing |
| Applied excavator |
R210LC7A R210LC9 RD220-7 R220LC9 HX220 |
| Category group | Excavator Final drive Parts |
| Place of origin | Made in PRC |
| Payment term | T/T, Western Union, MoneyGram |
| Packing | As request or standard packing |
| Delivery time | Stock for urgent delivery |
| Means of transport | By sea/air, DHL FEDEX TNT UPS EMS |
7-SERIES CRAWLER EXCAVATOR R210LC7A R215LC7 RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 RB220LC9S RD220LC9
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL Hyundai
| XJBN-00242 CASING-A |
| R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7H, R305LC7, R320LC7, R320LC7A, RC215C7, RC215C7H, RD340LC-7 |
| XJBN-00241 CASING-B |
| R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7H, R305LC7, R320LC7, R320LC7A, RC215C7, RC215C7H, RD340LC-7 |
| XJBN-01034 CASING-PUMP |
| HW210, HX220L, HX220NL, HX235L, HX260L, HX300L, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R215LC7, R220LC9A, R235LCR9, R235LCR9A, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC9, R290... |
| 31Q6-17610 CASING A |
| R210LC9, R220LC9A, R235LCR9, R235LCR9A |
| 31Q6-17620 CASING B |
| R210LC9, R220LC9A, R235LCR9, R235LCR9A |
| 39Q6-11110 CASING |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210L... |
| 39Q6-11280 CASING A-VALVE |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| XKAQ-00962 CASING |
| HX160L, HX180L, R160LC7, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC7, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R21... |
| 39Q6-11281 CASING A-VALVE |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, ... |
| 39Q6-12171 CASING |
| HX220L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, ... |
| XKAQ-00659 CASING-SHAFT |
| R210LC7A |
| 39Q6-12172 CASING |
| HW210, HX160L, HX220L, HX220NL, HX235L, R160LC9, R160LC9A, R160LC9S, R160W9A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9... |
| 39Q6-12170 CASING |
| R210W-9, R210W9MH, R210W9S |
| 39Q6-11280 CASING A-VALVE |
| R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| 39Q6-11110 CASING |
| HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210L... |
| ZGAQ-04045 CASING-DIFFERENTIAL |
| R140W9, R140W9A, R140W9S, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S |
| XKAY-01810 CASING-VALVE |
| R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| XJBN-01749 CASING |
| R1200-9 |
| XCAM-00040 CASING WHEEL |
| HL850EX, SL763 |
| XCAM-00005 CASING |
| HL850EX, SL763 |
| ZGAQ-04277 CASING |
| HL780-9, HL780-9S |
| ZGAQ-03929 CASING-AXLE |
| HL760-7A, HL760-9, HL760-9A, HL760-9S, HL760-9SB, HL760-F |
| ZGAQ-03895 CASING-AXLE |
| HL757-7A, HL757-9, HL757-9S, HL757TM-9, HL757TM7A, HL760-7A, HL760-9, HL760-9A, HL760-9S, HL760-9SB, HL760-F |
| XKAY-00563 CASING-SHAFT |
| R80-7, R80-7A, RD80-7 |
| XJBN-01621 CASING A |
| HW210, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| XJBN-01620 CASING B |
| HW210, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| XJBN-01757 CASING-FRONT |
| R210W9S |
| XJBN-01755 CASING-PUMP |
| R210W9S |
| XKAQ-00962 CASING |
| HX160L, HX180L, R160LC7, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC7, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R21... |
| 39Q7-41110 CASING |
| HX235L, HX260L, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| XKAY-02052 CASING-SHAFT |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| XKAY-01090 CASING-SHAFT |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 39Q8-41110 CASING |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 38Q8-41110 CASING |
| R260LC9S, R290LC7A, R290LC9, RD340LC-7 |
| XKAH-01599 CASING A-VALVE |
| HX380L, R360LC7A, R360LC9, R370LC7, R380LC9A, R380LC9DM, R380LC9MH, R380LC9SH, R390LC9 |
| 39QA-41110 CASING |
| HX430L, R430LC9, R430LC9A, R430LC9SH |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4155 |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | SEE 4155 |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | SEE 4155 |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | SEE 4155 |
| 2 | 39Q6-41120 | [1] | PLUG | |
| 1 | 39Q6-41110 | [1] | CASING | |
| K2. | 39Q6-41120 | [1] | PLUG | |
| 3 | 39Q6-41130 | [1] | SEAL-OIL | |
| 4 | 39Q6-41140 | [1] | PLATE-THRUST | |
| 5 | S602-060001 | [1] | RING-RETAINING | |
| NK6. | 39Q6-41160 | [1] | PISTON | |
| NK7. | 39Q6-41170 | [1] | SEAL-PISTON | |
| 8 | 39Q6-41180 | [1] | SHAFT | |
| 9 | 39Q6-41190 | [1] | BEARING-ROLLER | |
| K10. | 39Q6-41200 | [1] | BEARING-NEEDLE | |
| 11 | S602-080001 | [1] | RING-RETAINING | |
| 12 | S601-040001 | [1] | RING-RETAINING | |
| 13 | 39Q6-41210 | [1] | RING-SNAP | |
| 14 | 39Q6-41220 | [1] | PLATE-THRUST | |
| 15 | 39Q6-41230 | [1] | BALL-STEEL | |
| 16 | 39Q6-41240 | [2] | PIVOT | |
| 17 | 39Q6-41250 | [1] | PLATE-SWASH | |
| K18. | 39Q6-41280 | [1] | BLOCK-CYLINDER | |
| K19. | 39Q6-41290 | [9] | SPRING | |
| K20. | 39Q6-41310 | [1] | GUIDE-BALL | |
| K21. | 39Q6-41320 | [1] | PLATE-RETAINER | |
| K22. | 39Q6-41330 | [9] | PISTON ASSY | |
| N22-1. | 39Q6-41341 | [1] | PISTON | NOT SHOWN |
| N22-2. | 39Q6-41350 | [1] | SHOE | NOT SHOWN |
| 23 | 39Q6-41361 | [5] | PLATE-FRICTION | |
| 24 | 39Q6-41370 | [6] | PLATE-SEPARATED | |
| 25 | 39Q6-41380 | [1] | PISTON-PARKING | |
| K26. | 39Q6-41390 | [1] | D-RING | |
| K27. | 39Q6-41400 | [1] | D-RING | |
| 28 | 39Q6-41410 | [1] | PLATE-VALVE | |
| K31. | 39Q6-41440 | [1] | O-RING | |
| K. | 39Q6-41150 | [1] | PISTON KIT | SEE ILLUST |
| K. | 39Q6-41260 | [1] | ROTARY KIT | SEE ILLUST |
| K. | 39Q6-41270 | [1] | CYLINDER BLOCK KIT | SEE ILLUST |
| K. | 39Q6-41300 | [1] | RETAINER KIT | SEE ILLUST |
| K. | 39Q6-41810 | [1] | O-RING KIT | SEE ILLUST |
| K. | 39Q6-41820 | [1] | D-RING KIT | SEE ILLUST |
| K. | 39Q6-41462K | [1] | REAR COVER KIT | SEE ILLUST |
| K. | 38Q6-41462K | [1] | REAR COVER KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Packaging Details
Plastic Bag & Plastic Box , Customize , Or customer's Brand
2. Delivery Time
1-2 day after received the payment
3. Type of Shipping :
EMS , DHL , TNT , UPS , FeDex , By air & By sea ..
1. All of our products are strictly inspected and tested before packing in factory.2. All of our products are strictly produced according to Genuine parts standard.
2. We have our own design and develop department, thus, we can produce the spare parts according to your samples.
3. We have a team of professional engineers to supply related technology help if customers needs our tech-assistant.
4. All of our products are of good quality, competitive price, comparing to other suppliers.
5. We have two big warehouses in our city, thus we have enough stock goods, which enable us make delivery in fastest efficiency.
6. We have completed transport system to shipped the goods in fast way.
7. Sample processing, material processing, material agent processing, drawing processing, OEM processing, and other processing are all available.
8. We have thousands of customers in different countries and regions around the world.
