Product Details:
Payment & Shipping Terms:
|
| Category: | Excavator Hydraulic Motor | Excavator Model: | SK295-8 SK295-9 SK350-8 |
|---|---|---|---|
| Parts No.: | LC15V00022F1 LC15V00022F2 LC15V00027F2 LC32W00011F1 | Parts Type: | Excavator Spare Parts, Construction Machinery Parts |
| Packing: | Wood Box, Standard Carton, Pallet | Weight: | 80 KG |
| High Light: | SK350-8 Excavator Swing Motor,LC15V00022F2 Excavator Swing Motor,LC32W00011F1 Excavator Swing Motor |
||

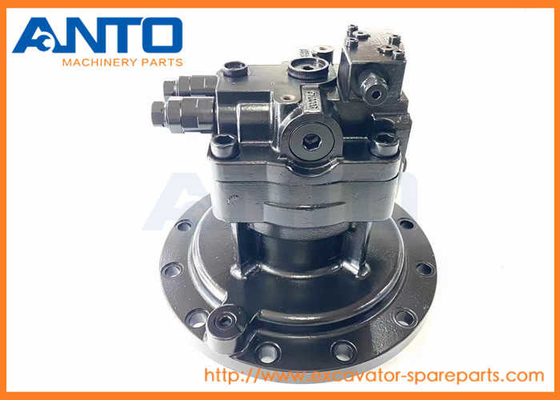

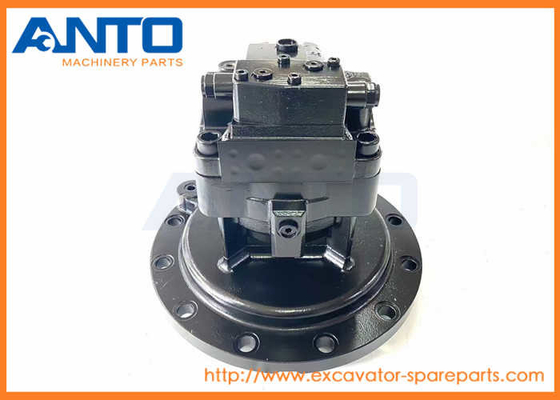

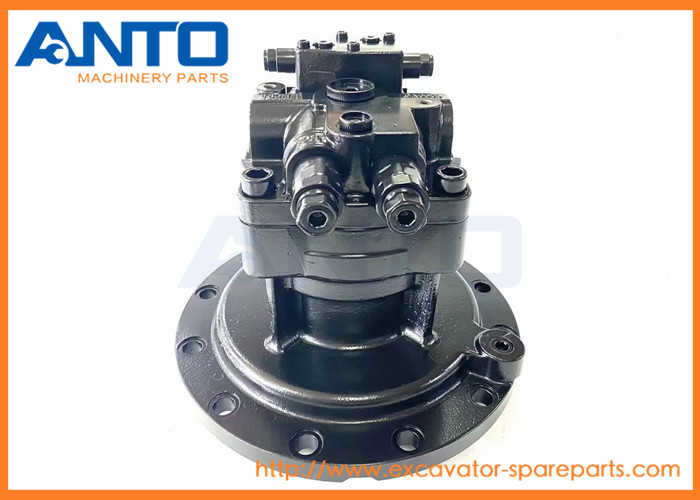

| Parts Name | Hydraulic Swing Motor |
| Equipment | SK350-8 SK295-8 SK295-9 Excavator |
| Category | Excavator swing motor parts |
| Item Condition | Brand new, OEM quality |
| MOQ | 1 PCS |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2420P1613D2 | [14] | BOLT,Hex, M24 x 2 x 70mm | KOB M24x2.0x70mm |
| 2 | PV02B01073D3 | [2] | CAP | KOB 10.7mm Plastic -- Used from date 09/23/2005 - 05/21/2007 Superseded by part number: YN64H01391D1 |
| 2 | YN64H01391D1 | [2] | CAP | KOB 10.0mm Slotted Plastic -- Used after date 05/21/2007 - UP |
| 3 | LC32W01035D1 | [1] | LEVEL GAUGE | KOB |
| 4 | LC32W01034D1 | [1] | TUBE | KOB ID 21.6 x OD 27.2 x 234mm Long |
| 5 | LC15V00025F1 | [1] | HYDRAULIC MOTOR | KOB Swing Moter Assembly, Incls. Refs. 5-1 & 5-2 -- Used from date 09/23/2005 - 05/11/2006 Superseded by part number: LC15V00027F2 |
| 5 | LC15V00027F1 | [1] | HYDRAULIC MOTOR | KOB Swing Moter Assembly, Incls. Refs. 5-1 & 5-2 -- Used after date 05/11/2006 - UP Superseded by part number: LC15V00027F2 |
| 5-1. | LC15V00022F1 | [1] | HYDRAULIC MOTOR | KOB Assembly Superseded by part number: LC15V00022F2 |
| 5-2. | LC32W00007F1 | [1] | REDUCER | KOB Swing Reduction Assembly -- Used from date 09/23/2005 - 05/11/2006 Superseded by part number: LC32W00011F1 |
| 5-2. | LC32W00011F1 | [1] | REDUCER |
KOB Swing Reduction Assembly -- Used after date 05/11/2006 - UP |
| Pos. | Part No | Qty | Parts name | Comments |
| . . | LC15V00022F1 | [1] | HYDRAULIC MOTOR | KOB Superseded by part number: LC15V00022F2 |
| 51 | YN22V00014FB | [2] | VALVE | KOB VALVE ASSY,RELIEF (SWING) SEE(HC325) |
| 52 | YN20V00004F1 | [1] | VALVE | KOB SEE(HC315) |
| 101 | LB15V00011S101 | [1] | SHAFT | KOB |
| 111 | LB15V00011S111 | [1] | CYLINDER | KOB |
| 114 | EZ15V00021S114 | [1] | SPRING | KOB |
| 121 | NSS | [9] | NOT SOLD SEPARAT | CON PISTON |
| 122 | NSS | [9] | NOT SOLD SEPARAT | CON SHOE |
| 123 | EZ15V00021S123 | [1] | PLATE | KOB |
| 124 | LB15V00011S124 | [1] | PLATE | KOB SHOE |
| 131 | LB15V00011S131 | [1] | PLATE | KOB |
| 301 | LC15V00022S301 | [1] | KOB | |
| 303 | NSS | [1] | NOT SOLD SEPARAT | CON |
| 351 | LC15V00003S351 | [2] | PLUNGER | KOB |
| 355 | LC15V00003S355 | [2] | SPRING | KOB |
| 390 | YB15V00003S390 | [1] | PLATE | KOB NAME PLATE |
| 391 | 2437U407S983 | [2] | RIVET | KOB |
| 401 | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOB Screw -- M20x2.5x45mm |
| 443 | LB15V00011S443 | [1] | ROLLER BEARING | KOB ROLLER |
| 444 | LB15V00011S444 | [1] | ROLLER BEARING | KOB ROLLER Superseded by part number: LC15V00022S995 |
| 451 | NSS | [2] | NOT SOLD SEPARAT | CON PIN |
| 469 | LC15V00003S469 | [2] | PLUG | KOB |
| 472 | LB15V00011S987 | [1] | O-RING | KOB |
| 488 | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB ID 33.70 ± 0.33 x OD 40mm |
| 491 | LC15V00022S491 | [1] | OIL SEAL | KOB OIL SEAL |
| 702 | LQ15V00001S015 | [1] | PISTON | KOB |
| 706 | 2441U785S706 | [1] | O-RING | KOB |
| 707 | 2441U741S706 | [1] | O-RING | KOB |
| 712 | LB15V00011S712 | [14] | SPRING | KOB |
| 742 | LB15V00011S742 | [3] | PLATE | KOB FRICTION |
| 743 | LB15V00011S743 | [4] | PLATE | KOB SEPARATOR |
| 984 | LC15V00022S984 | [1] | PLUG | KOB |
| 985 | LQ15V00001S985 | [1] | PLUG | KOB |
| 986 | YN15V00035S980 | [1] | PLUG | SM |
| 994 | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| K. | LB15V00011R100 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM 121X9, 122X9 Superseded by part number: LC15V00022R400 |
| K. | LV15V00002R200 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM 303X1, 451X2 |
| Pos. | Part No | Qty | Parts name | Comments |
| .. | LC32W00007F1 | [1] | REDUCER | KOB Swing Reduction Assembly, Incl 1 - 39 Superseded by part number: LC32W00011F1 |
| 1 | LC32W01027P1 | [1] | PINION | KOB |
| 2 | LC32W01016P1 | [1] | SHAFT | KOB Superseded by part number: LC32W01060P1 |
| 3 | LC32W01006P1 | [1] | SUN GEAR | KOB |
| 4 | LC32W01021P1 | [3] | PINION | KOB |
| 5 | LC32W01017F1 | [1] | SPIDER ASSY. | KOB |
| 5-1. | LC32W01019P1 | [1] | SPIDER | KOB |
| 5-2. | LC32W01020P1 | [3] | SHAFT | KOB |
| 6 | LC32W01008P1 | [1] | SUN GEAR | KOB |
| 7 | LC32W01024P1 | [4] | PINION | KOB |
| 8 | LC32W01009P1 | [1] | RING GEAR | KOB |
| 9 | LC32W01023P1 | [1] | SPIDER | KOB |
| 10 | LC32W01025P1 | [4] | SHAFT | KOB |
| 11 | LC32W01029P1 | [11] | BEARING | KOB Needle -- Changed LC32W01036P1 Superseded by part number: LC32W01036P1 |
| 11 | LC32W01036P1 | [11] | NEEDLE BEARING | KOB Was LC32W01029P1 |
| 12 | LC32W01030P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL |
| 13 | LC32W01031P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL |
| 14 | LC32W01032P1 | [1] | OIL SEAL | KOB |
| 15 | LC32W01010P1 | [1] | HOUSING | KOB |
| 16 | LC32W01033P1 | [1] | OIL SEAL | KOB |
| 17 | LC32W01011P1 | [1] | SLEEVE | KOB |
| 18 | LC32W01012P1 | [1] | SLEEVE | KOB |
| 19 | LC32W01013P1 | [1] | PLATE | KOB |
| 20 | LC32W01028P1 | [1] | PLATE | KOB |
| 21 | LC32W01014P1 | [1] | RING | KOB |
| 22 | LC32W01022P1 | [6] | WASHER, THRUST | KOB WASHER,THRUST |
| 23 | LC32W01026P1 | [8] | WASHER, THRUST | KOB WASHER,THRUST |
| 24 | ZR16X04500 | [1] | RING | KOB Retaining -- ID 45 x OD 58 x Th 1.8mm |
| 25 | ZR16X04200 | [3] | SNAP RING | KOB Retaining -- ID 42 x OD 55 x Th 1.8mm |
| 26 | ZP26D10040 | [4] | ROLL PIN | KOB OD 10 x 40mm Long |
| 27 | ZS23C20200 | [12] | SCREW,Hex Socket Head, M20 x 200mm | KOB M20x2.5x200mm |
| 28 | ZG91V02000 | [1] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB 67° x 1/8" PT Superseded by part number: 72283072 |
| 29 | 2444Z3305 | [1] | BREATHER | KOB 1/8"PT |
| 30 | YN32W01080D2 | [1] | TUBE | KOB 1/2" PT x 213mm Long |
| 31 | ZG31U08000 | [1] | HYD CONNECTOR | SM Elbow, 90° -- 1/2" PT |
| 32 | ZE82T08000 | [1] | PLUG | KOB 1/2" PT |
| 33 | PV02B01073DE | [2] | CAP | KOB 21.7mm Plastic |
| 34 | LC32W01015P1 | [2] | CAPSCREW | KOB SCREW |
| 35 | ZY15X16025 | [1] | WIRE HARNESS | KOB |
| 36 | LC32W01018D1 | [1] | SHIN | KOB ID 131 x OD 150 x Th 0.1mm |
| 37 | LC32W01018D2 | [1] | SHIN | KOB ID 131 x OD 150 x Th 0.2mm |
| 38 | LC32W01018D3 | [1] | SHIN | KOB ID 131 x OD 150 x Th 0.3mm |
| 39 | LC32W01018D4 | [1] | SHIN | KOB ID 131 x OD 150 x Th 0.5mm |
| 120 305.5 312 315 318 320 322 324 325 329 330 336 …… | |
| Komatsu | PC40-7 PC45 PC50 PC60-7 PC78 PC100 PC120 PC150 PC160 PC200 PC210 PC220 PC300 PC400 |
| Hitachi | EX60 EX100 EX120 EX200 EX300 EX400 EX450 ZX60 ZX70 ZX120 ZX160 ZX200 ZX230 ZX240 ZX270 ZX330 ZX450 |
| Vo-lvo | EC55 EC160 EC180 EC210 EC240 EC290 EC360 EC460 |
| Hyundai | R60 R110 R130 R160 R210 R220 R250 R290 R305 R300 R320 R360 R450 R500 |
| Doosan/Daewoo | DH55 DH130 DH150 DH200 DH220 DH225 DH280 DH300 DH420 S220 S340 S300 |
| Other Models for Kobelco Kato John Deere Sumitomo Yuchai Sunward Liugong JCB | SK200 SK250 SK350 SH200 SH280 SH350 HD550 HD800 HD1250 CX210 CX240 CX360 JD200 JD230 JD300 JS200 JS220 JS360 … |
Packing details: Standard export carton, Wooden box, Polly-wood Pallet, Packaging film
Lead time: 2-5 days for parts in stock, 5-20 days for parts not in stock.
1. Parts with quality problem can be replaced
2. Warranty Period: Supply 3, 6, 12 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival. Contact with us and offer the data, photos of the problem items.
3. Warranty do not cover for below:
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation.
* The machine and the parts work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
