Product Details:
Payment & Shipping Terms:
|

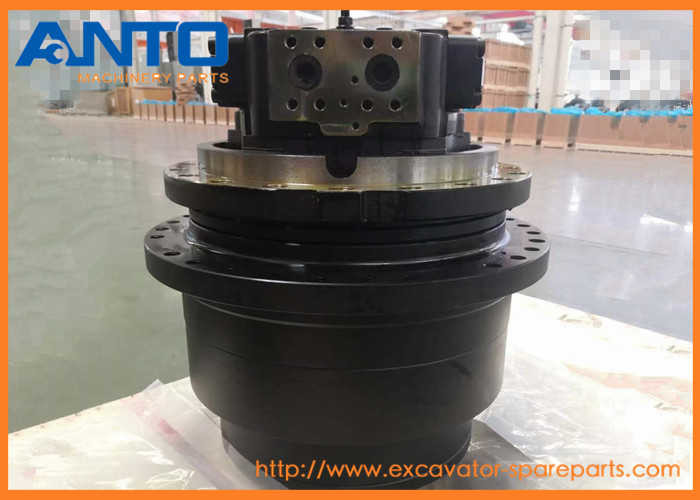

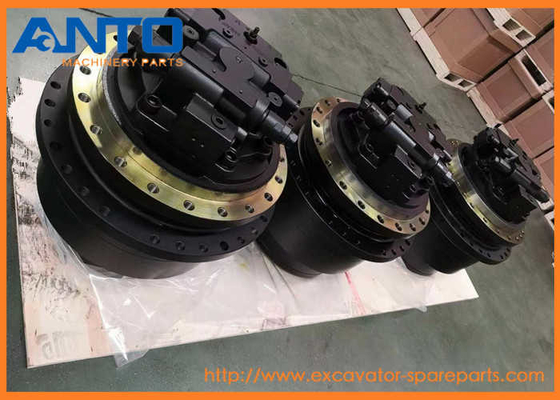

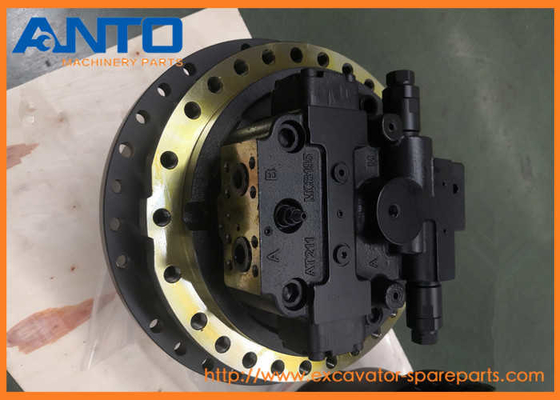

| Description: | Final Drive Assy With Motor | Parts No.: | VOE14551150 VOE14528281 VOE14566400 VOE14551802 VOE14566401 |
|---|---|---|---|
| Excavator Model: | EC290B EC330B EC360B EC330C | Packing: | Wood Box |
| Warranty: | 6/12 Months | Weight: | 450 KG |
| High Light: | EC360B Final Drive,VOE14551802 Final Drive,VOE14551150 Final Drive |
||
| Excavator spare parts name | final drive assy |
| Equipment Model | EC290B EC330B EC360B EC330C |
| Parts Category | excavator track drive |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
| VOE14603461 Drive unit |
| EC340D, EC350D, EC380D, EC380DHR |
| VOE13905650 Drive screw |
| EC330B, EC330C, EC340D, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC480E, EC480EHR, G700B MODELS, L120, L150/L150C Vo-lvo BM, L15... |
| VOE14551150 Drive unit |
| EC290B, EC330B, EC360B, EC360C |
| VOE14645000 Drive unit |
| EC380D, EC380DHR |
| VOE14551154 Drive unit |
| EC240B, EC290B, EC290C |
| VOE14598761 Drive unit |
| EC290B, EC290C, FC3329C |
| VOE14667673 Drive unit |
| EC300D, EC380DHR, EC380E |
| VOE14630400 Drive unit |
| EC360B |
| VOE14596601 Drive Unit |
| EC330B, EC330C, EC360B, EC360C |
| VOE14592030 Drive unit |
| EC240C, EC290C, FC2924C |
| VOE14622770 Drive Unit |
| EC360C |
| VOE14700640 Drive unit |
| EC330B |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE14566400 | [2] | Drive unit | |
| 2 | VOE14566401 | [1] | Transfer gearbox | |
| 3 | VOE14551802 | [1] | Travel motor | |
| 4 | VOE60110287 | [44] | Washer | |
| 5 | VOE997475 | [44] | Hexagon screw | |
| 6 | VOE997474 | [8] | Hexagon screw |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14566401 | [1] | Transfer gearbox | ||
| 1 | VOE14566402 | [1] | Housing | |
| 2 | VOE14566409 | [1] | Gear | |
| 3 | SA7117-38230 | [2] | Bearing | |
| 4 | VOE14566404 | [1] | Shim | |
| 5 | VOE14566403 | [1] | Retainer | |
| 6 | VOE14566410 | [1] | Planet carrier | |
| 7 | VOE14566411 | [1] | Planet carrier | |
| 8 | VOE14566415 | [4] | Pin | |
| 9 | VOE14566413 | [4] | Planetary gear | |
| 10 | VOE14566414 | [8] | Washer | |
| 11 | SA9325-06012 | [4] | Spring pin | |
| 12 | SA8230-21020 | [1] | Thrust ring | |
| 13 | VOE14566412 | [4] | Needle bearing | |
| 14 | VOE984088 | [20] | Hex. socket screw | |
| 15 | VOE14566416 | [1] | Gear | |
| 16 | VOE14566418 | [1] | Planet carrier | |
| 17 | VOE14566423 | [3] | Pin | |
| 18 | VOE14566419 | [1] | Planet carrier | |
| 19 | VOE14566421 | [3] | Planetary gear | |
| 20 | VOE14566422 | [6] | Washer | |
| 21 | SA9325-06012 | [3] | Spring pin | |
| 22 | VOE14566420 | [3] | Needle bearing | |
| 23 | VOE14566433 | [1] | Thrust washer | |
| 24 | VOE14566424 | [1] | Gear | |
| 25 | VOE14566425 | [1] | Planet carrier | |
| 26 | VOE14566426 | [1] | Planet carrier | |
| 27 | VOE14566428 | [3] | Planetary gear | |
| 28 | VOE14566429 | [6] | Washer | |
| 29 | VOE14566430 | [3] | Pin | |
| 30 | SA9325-06012 | [3] | Spring pin | |
| 31 | VOE14566427 | [3] | Needle bearing | |
| 32 | VOE14569232 | [1] | Ring | |
| 33 | VOE14566417 | [1] | Ring | |
| 34 | VOE14566431 | [1] | Gear | |
| 35 | VOE914467 | [1] | Retaining ring | |
| 36 | VOE14566432 | [1] | Cover | |
| 37 | VOE60110006 | [18] | Hexagon screw | |
| 38 | SA9213-20000 | [18] | Spring washer | |
| 39 | VOE14883847 | [2] | Plug | |
| 40 | VOE990557 | [2] | O-ring | |
| 41 | VOE950677 | [4] | Pin | |
| 42 | VOE14667679 | [1] | Seal |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14551802 | [1] | Travel motor | ||
| 1 | VOE14565334 | [1] | Casing | |
| 2 | VOE14565337 | [1] | Rod | |
| 3 | VOE14565336 | [1] | Pin | |
| 4 | VOE983507 | [1] | O-ring | |
| 5 | VOE983501 | [1] | O-ring | |
| 6 | VOE14528296 | [1] | Screw | |
| 7 | VOE997410 | [1] | Hexagon nut | |
| 8 | VOE14551525 | [1] | Pin | |
| 9 | VOE990585 | [2] | O-ring | |
| 10 | SA7242-10540 | [2] | Cover | |
| 11 | SA7242-10750 | [1] | Screw | |
| 12 | VOE983497 | [1] | O-ring | |
| 13 | SA9415-31021 | [7] | Plug | |
| 14 | VOE993320 | [7] | O-ring | |
| 15 | SA7242-11580 | [2] | Relief valve | |
| 16 | SA9016-22019 | [2] | Hex. socket screw | |
| 17 | VOE14560637 | [9] | Plug | |
| 18 | SA9016-11209 | [8] | Hex. socket screw | |
| 19 | SA9415-31041 | [2] | Plug | |
| 20 | VOE993322 | [2] | O-ring | |
| 21 | VOE984229 | [4] | Hex. socket screw | |
| 22 | SA7242-10710 | [2] | Clamping plate | |
| 23 | SA7242-10720 | [2] | Guard | |
| 24 | VOE14880998 | [2] | Ball | |
| 25 | [1] | Nameplate | ||
| 26 | SA1010-11360 | [2] | Screw | |
| 27 | SA7242-10520 | [2] | Washer | |
| 28 | SA7242-10530 | [2] | Spring | |
| 29 | SA7242-11560 | [1] | Spring | |
| 30 | VOE14507000 | [1] | Spacer | |
| 31 | SA7242-11290 | [1] | Plug | |
| 32 | VOE983509 | [1] | O-ring | |
| 33 | VOE14509997 | [1] | Spool | |
| 34 | VOE14506994 | [1] | Spring | |
| 35 | VOE14506995 | [1] | Plug | |
| 36 | VOE983505 | [1] | O-ring | |
| 37 | VOE14880996 | [2] | Ball | |
| 38 | VOE14565331 | [1] | Shaft | |
| 39 | VOE14640025 | [1] | Roller bearing | |
| 40 | VOE14506955 | [1] | Bearing | |
| 41 | VOE914472 | [1] | Snap ring | |
| 42 | VOE14552647 | [1] | Casing | |
| 43 | SA7242-10590 | [1] | Seal | |
| 44 | SA9541-02090 | [1] | Retaining ring | |
| 45 | VOE14506958 | [2] | Pivot | |
| 46 | VOE14506959 | [1] | Piston | |
| 47 | VOE14551526 | [5] | Pin | |
| 48 | VOE14506982 | [3] | Plate | |
| 49 | VOE14506984 | [2] | Plate | |
| 50 | VOE14565332 | [1] | Piston | |
| 51 | VOE960262 | [1] | O-ring | |
| 52 | VOE990849 | [1] | O-ring | |
| 53 | VOE14568004 | [10] | Spring | |
| 54 | VOE14508608 | [1] | Plate | |
| 55 | VOE14552645 | [1] | Cylinder block | |
| 56 | VOE14506967 | [9] | Spring | |
| 57 | VOE14506968 | [1] | Spacer | |
| 58 | VOE14506970 | [1] | Guide | |
| 59 | VOE14506972 | [1] | Plate | |
| 60 | VOE14506977 | [9] | Pad | |
| 61 | VOE14551797 | [9] | Piston | |
| 62 | VOE14506978 | [1] | Plate | |
| 100 | VOE14596398 | [1] | Seal |
The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
