Product Details:
Payment & Shipping Terms:
|

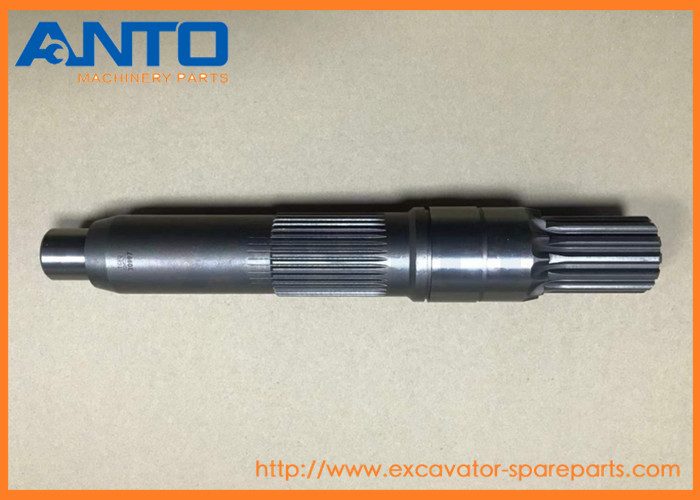

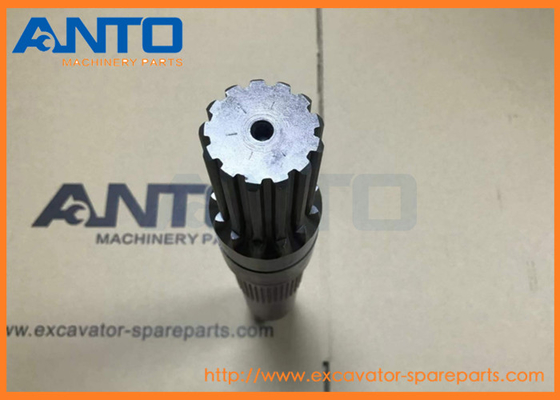

| Model Number: | 330C 330D 336D 336E 336F 340D | Product Name: | Travel Motor Shaft |
|---|---|---|---|
| Part Number: | 1673855 167-3855 | Transportation: | By Sea/air By Express |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| High Light: | 336E Excavator Travel Motor Shaft,167-3855 Travel Motor Shaft,336D Travel Motor Shaft |
||
| Application | Excavator Travel Motor Parts |
| Name | Motor Drive shaft |
| Parts No | 1673855 167-3855 |
| Model | 330C 330D 336D 336D 336E 336F 340D |
| Delivery time | Stock for urgent delivery |
| Condition | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS express |
| Packing | As request or standard packing |
EXCAVATOR 325C 328D LCR 330C 330C FM 330C L 330C MH 330D 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L
MOBILE HYD POWER UNIT 330D 336D L 336E HVG Caterpillar
| 1695602 SHAFT-PLANETARY |
| 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32... |
| 6Y8028 SHAFT-IDLER |
| 1290T, 1390, 2491, 2590, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E H... |
| 1772481 SHAFT |
| 330C, 330C FM, 330C L, 330C MH, 345B II, 345B II MH, TK1051, TK711, TK721, TK722, TK732, W345B II |
| 2160036 SHAFT |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 345B II, 345B II MH, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, 552 2, TK1051, TK711, TK721, TK... |
| 2160037 SHAFT |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 345B II, 345B II MH, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, 552 2, TK1051, TK711, TK721, TK... |
| 2426775 SHAFT |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 345B II, 345B II MH, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, 552 2, TK711, TK721, TK722, TK7... |
| 7Y0662 SHAFT-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C ... |
| 7Y0661 SHAFT-PLANET |
| 325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C ... |
| 7Y0656 SHAFT-PLANETARY |
| 325C, 328D LCR, 330, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L,... |
| 2959554 SHAFT-DRIVE |
| 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D |
| 2590831 SHAFT-DRIVE |
| 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D |
| 1559123 SHAFT |
| 330D L, 330D LN, 330D MH, 345B, 345B II, 345B II MH, 345B L, W345B II |
| 2959554 SHAFT-DRIVE |
| 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D |
| 1373746 SHAFT |
| 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 345B, 345B II, 345B II MH, 345B L, 374F L, 390F L, M330D, W345B II |
| 3520506 SHAFT |
| 2764746 SHAFT |
| PR190 |
| 2764687 SHAFT |
| PR190 |
| 4229841 SHAFT |
| 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1T-0936 | [1] | PLUG-ORIFICE | |
| 2 | 4B-4158 | [4] | SCREW-DRIVE (NO 4X0.25-IN) | |
| 3 | 6V-3382 J | [1] | SEAL-LIP TYPE | |
| 4 | 8J-2559 | [1] | PLATE-WARNING (OIL FILL) | |
| 5 | 087-4786 | [1] | ADAPTER | |
| 6 | 108-6503 | [9] | PISTON AS | |
| 7 | 118-4057 | [9] | SPRING | |
| 8 | 124-1541 | [2] | PIN | |
| 9 | 124-1561 | [20] | SPRING-BRAKE | |
| 10 | 137-3708 | [1] | RETAINER | |
| 11 | 167-3855 | [1] | SHAFT | |
| 12 | 167-3857 | [1] | KEY | |
| 13 | 167-3858 | [1] | KEY | |
| 14 | 167-3859 | [1] | PLATE-CAM | |
| 15 | 167-3862 | [1] | PLATE-RETAINER | |
| 16 | 167-3863 | [1] | BALL | |
| 17 | 167-3865 | [5] | PLATE-SEPARATOR | |
| 18 | 167-3866 | [4] | PLATE-FRICTION | |
| 19 | 167-3867 | [1] | PLATE-PORT | |
| 20 | 167-3868 | [1] | PISTON-BRAKE | |
| 21 | 167-3872 | [1] | SPOOL | |
| 22 | 170-1612 J | [2] | SEAL | |
| 23 | 170-1626 J | [1] | RING-BACKUP | |
| 24 | 170-1627 J | [1] | RING-BACKUP | |
| 25 | 173-4063 | [1] | BARREL AS-MOTOR | |
| 26 | 173-4066 | [1] | SPACER (63.05X79.8X7-MM THK) | |
| 27 | 175-7436 | [1] | VALVE | |
| 28 | 175-7887 | [2] | DOWEL | |
| 29 | 180-6769 | [1] | BEARING AS | |
| 30 | 180-6770 | [1] | BEARING AS | |
| 31 | 186-5175 | [1] | PLUG | |
| 32 | 193-7901 | [1] | BODY AS | |
| 124-1555 | [4] | PLUG | ||
| 33 | 271-6377 | [1] | HEAD AS | |
| 096-5916 | [2] | SEAT | ||
| 124-1555 | [4] | PLUG | ||
| 34 | 274-4512 | [1] | SEAT | |
| 35 | 274-4513 | [2] | RETAINER | |
| 36 | 345-3744 | [1] | PISTON-ACTUATOR | |
| 37 | 095-1572 J | [2] | SEAL-O-RING | |
| 38 | 095-1585 J | [1] | SEAL-O-RING | |
| 39 | 095-1596 J | [1] | SEAL-O-RING | |
| 40 | 095-1700 J | [2] | SEAL-O-RING | |
| 41 | 095-7380 | [1] | SPRING | |
| 42 | 096-3978 | [1] | SPRING | |
| 43 | 096-5919 J | [2] | RING-BACKUP | |
| 44 | 099-7030 J | [1] | RING-BACKUP | |
| 45 | 170-1616 J | [1] | SEAL | |
| 46 | 2D-6642 | [2] | BALL | |
| 47 | 2M-9780 J | [1] | SEAL-O-RING | |
| 48 | 2R-1236 | [1] | RING-RETAINING (LOCK, INTERNAL) | |
| 49 | 3D-2824 J | [2] | SEAL-O-RING | |
| 50 | 3K-0360 J | [2] | SEAL-O-RING | |
| 51 | 4K-4284 | [1] | RING-RETAINING | |
| 52 | 6V-5192 M | [4] | BOLT-SOCKET HEAD (M8X1.25X30-MM) | |
| 53 | 7Y-5219 J | [2] | SEAL-O-RING | |
| 54 | 8T-2393 M | [8] | BOLT-SOCKET HEAD (M16X2X60-MM) | |
| 55 | 9S-8005 | [2] | PLUG (3/4-16-THD) | |
| 56 | 9S-8008 | [2] | PLUG (1-1/16-12-THD) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 272-0290 J | [1] | KIT-SEAL (TRAVEL MOTOR) | ||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART |
